EnVision LED-MDJBX-3-10W-5CCT-WH-R – M-Line

Product Overview

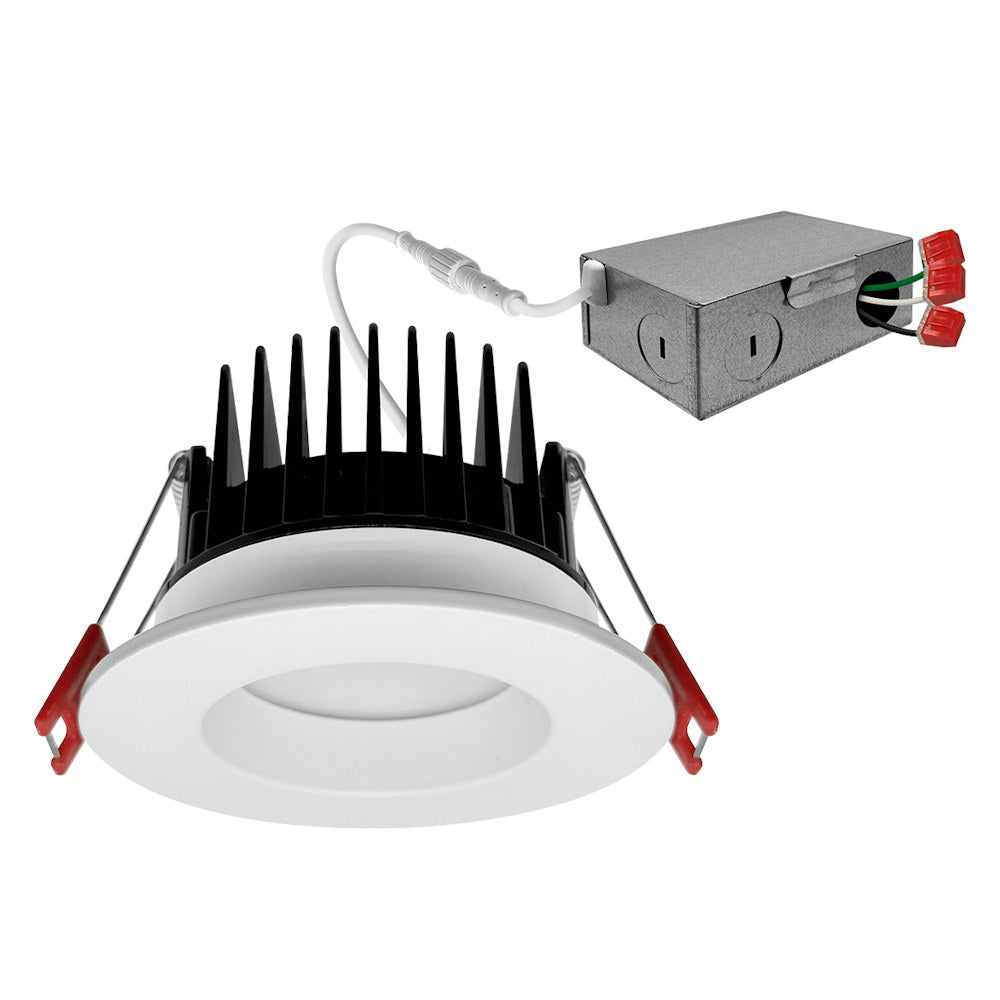

The EnVision LED-MDJBX-3-10W-5CCT-WH-R is a 3" canless recessed downlight that delivers 800 lumens from 10W with five selectable color temperatures (2700K–5000K).

It features an integrated junction box and spring-clip mounting for canless installation, a frosted lens, >90 CRI with R9 >50, 110° beam spread, and a Triac/ELV dimmable 120V driver.

Key Features

• 10W power consumption, 800 lumens output
• 5-CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI >90 with R9 >50 and 3-step MacAdam ellipses
• 120V input, Triac/ELV dimmable driver (flicker free) with built-in 2.5 kV surge protection
• IP54 wet-location rating and frosted non-yellowing lens; 110° beam angle
• White round trim included; metal housing with heat sink; L70 = 50,000 hours
• ETL Listed (USA & CA), Energy Star certified, JA8-2022 (Title 24) listed, 5-year limited warranty

What this fixture does

Direct answer: The LED-MDJBX-3-10W-5CCT-WH-R is a 3" canless recessed downlight for general-purpose interior lighting where a compact, high-quality LED is required.

It produces 800 lumens at 10W and allows selection among five white color temperatures to match design needs or adjacent fixtures.

• Output: 800 lm at 10W
• Manufacturer-listed applications: residential, multifamily, office, education, healthcare, retail, hospitality, and general recessed lighting

Mounting and installation

Direct answer: This is a canless (SnapTrim) fixture with spring-clip mounting and a pre-wired junction box for remodel and new-construction installations without a recessed can.

The fixture can be removed from below the ceiling for service; optional new-construction and rough-in plates are available.

• Cut-out dimension (3" model): 3-1/4"
• Ceiling thickness compatibility: tension clips fit 1/2" to 1.5" ceilings
• This fixture does not fit into a recessed can

Electrical, dimming and driver details

Direct answer: The fixture is 120V and uses a Triac/ELV dimmable driver that is listed as flicker free and includes a 2.5 kV surge protector.

Manufacturer documentation lists tested Triac/ELV dimmers from several brands; other dimmers may be compatible but have not been tested by the manufacturer.

• Voltage: 120V
• Dimming: Triac/ELV (flicker free)
• Surge protection: built-in 2.5 kV

Light quality and optics

Direct answer: The fixture provides high color quality with CRI >90 and R9 >50, using a frosted non-yellowing lens and a 110° beam for broad ambient illumination.

Select the desired white point using the built-in 5-CCT selector.

• Color temperatures: selectable 2700K, 3000K, 3500K, 4000K, 5000K
• CRI: >90 (R9 >50)
• Beam angle: 110°
• Average life (L70): 50,000 hours

Certifications and warranty

Direct answer: The product is ETL Listed for the U.S. and Canada, Energy Star certified, JA8-2022 (Title 24) listed, and carries a 5-year limited warranty.

It is rated IP54 for wet locations and the documentation indicates additional listings such as IC and air-tight where specified by the manufacturer.

• Listings: ETL (USA & CA), Energy Star
• Compliance: CA Title 24 JA8-2022
• IP Rating: IP54 (wet location)
• Warranty: 5-year limited warranty

Dimensions, trims and accessories

Direct answer: The standard unit ships with a white round trim; EnVision offers optional trims, extension cables, construction plates, rough-in plates, and an optional field-installable emergency backup accessory.

Confirm accessory part numbers and compatibility when specifying additional trims or emergency modules.

• Standard finish: white round trim included
• Optional trims: white square, black round, black square (order separately)
• Accessories: extension cables (6', 10', 12'), new construction plate, rough-in plate, optional emergency backup (field installable)

Before You Order

Verify model number, required quantity, and desired trim/accessories before ordering.

• Cut-out for 3" model: 3-1/4" — this fixture does not fit into a recessed can
• Ceiling thickness compatibility: tension clips for 1/2" to 1.5" ceilings
• If using dimming, confirm compatibility with your dimmer model; manufacturer lists tested Triac/ELV dimmers

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-MDJBX-3-10W-5CCT-WH-R – M-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
