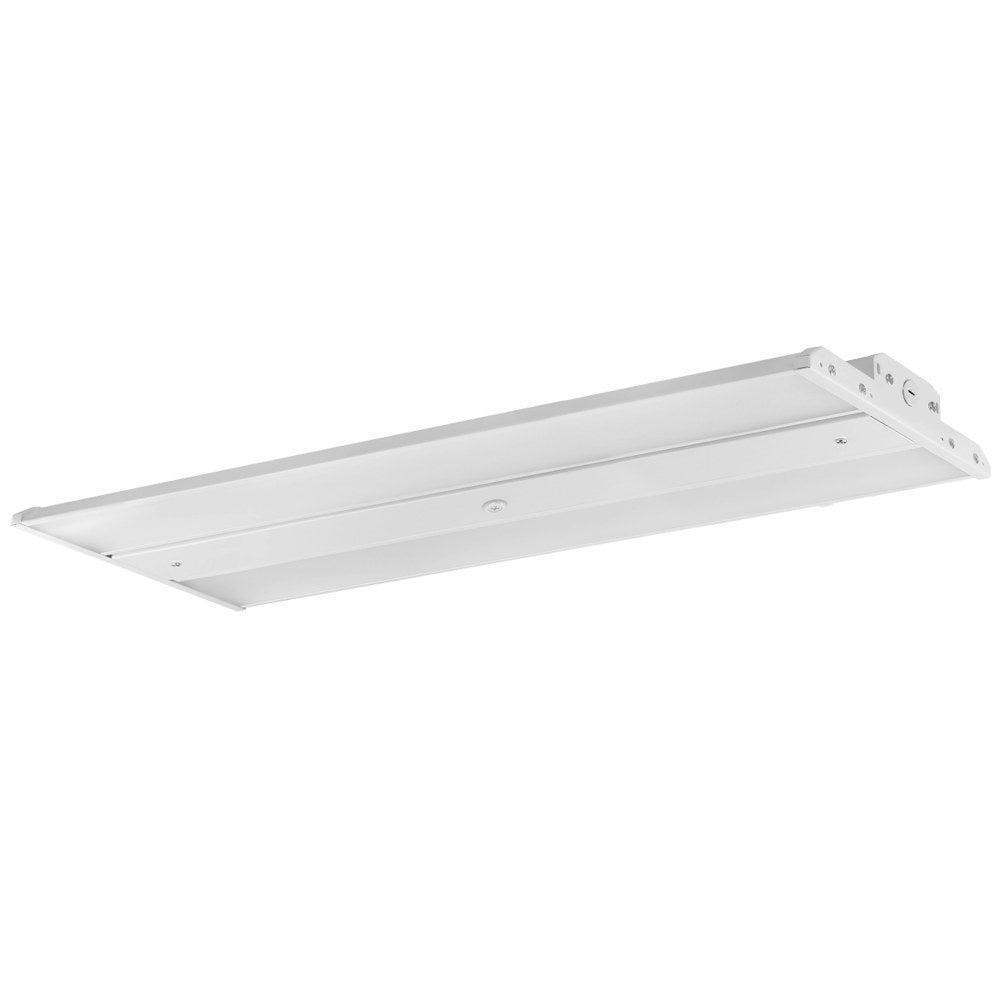

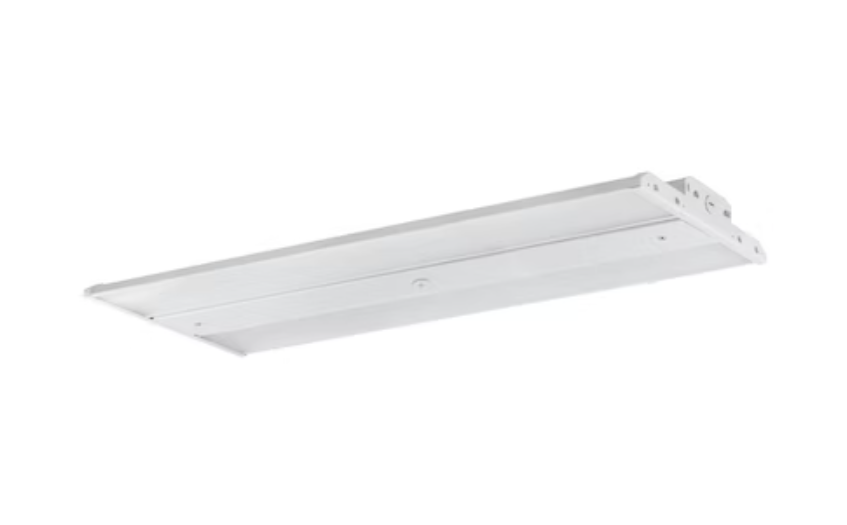

EnVision LED-LHB-4FT-5P320-CTRI-UNV – Slim-Line G2

EnVision LED-LHB-4FT-5P320-CTRI-UNV – Slim-Line G2

$203.00
$203.00
Sale Sold out

LED-LHB-4FT-5P320-CTRI-UNV
Request a Quote
Product Overview

EnVision's LED-LHB-4FT-5P320-CTRI-UNV high bay supplies up to 46,400 lumens with selectable 320/280/240/200/160w output on universal 120-277V, suited to high-ceiling industrial bays with straightforward install and confirmation.

Key Features
  • Selectable power: 320/280/240/200/160w set at install, one SKU covering multiple loads
  • Output: up to 46,400 lumens matching the selected wattage
  • Field-selectable color: 3500K-5000K (3 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 90° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location
  • Finish: White Frosted
  • Compliance: UL/DLC Listed, 5-year warranty
Technical Specifications
Brand EnVision
Wattage 320/280/240/200/160w
Lumens 46,400/40,600/34,800/29,000/23,200
Color Temperature 3500K-5000K (3 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 90°
CRI >80
IP Rating Damp Location
Finish White Frosted
Certification UL/DLC PREM/ 5 Yrs
Box Quantity 1
UPC 810143712445
Applications

Suited to high-ceiling industrial bays, warehouse and distribution ceilings, and manufacturing floors.

Compatibility & Installation Notes

Confirm mounting height and required foot-candles for your ceiling before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

Order the LED-LHB-4FT-5P320-CTRI-UNV to standardize on one flexible fixture across the job.
