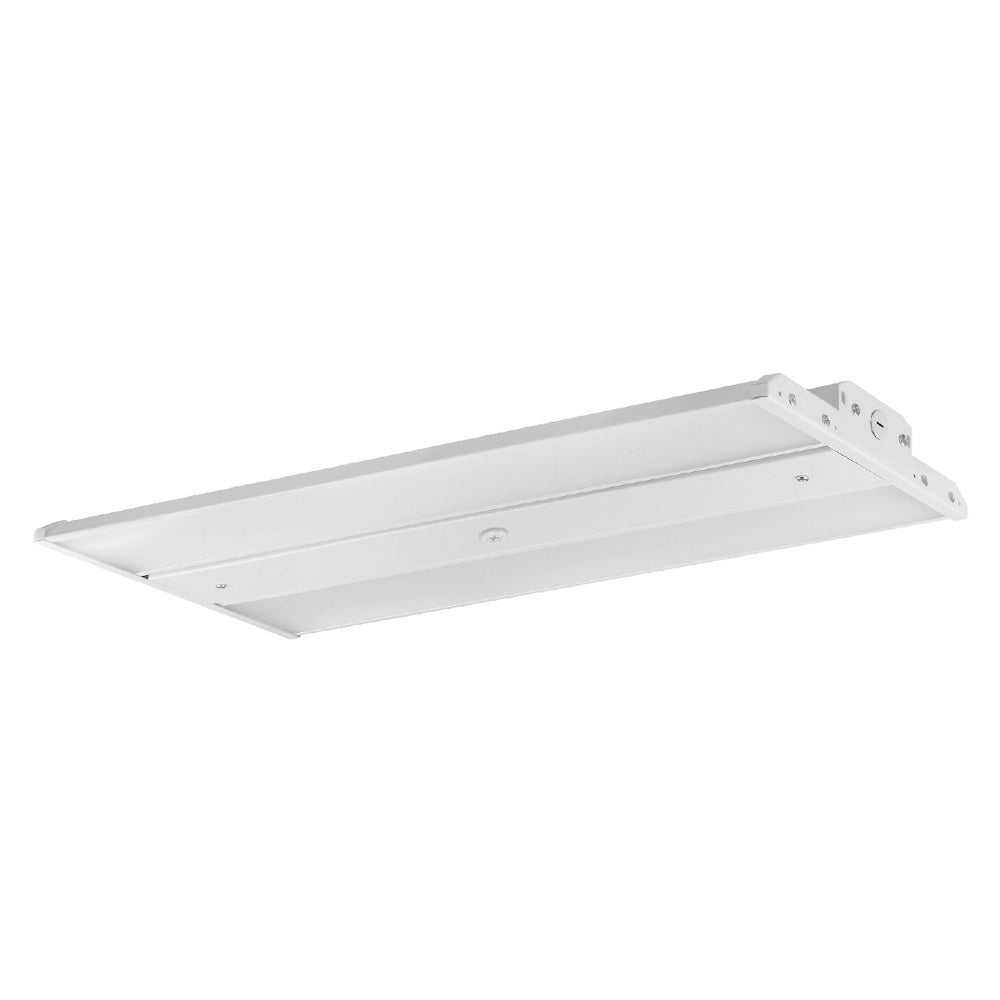

• EnVision LED-LHB-2FT-3P110-F-40K-UNV LED High Bay
1 1

EnVision

EnVision LED-LHB-2FT-3P110-F-40K-UNV – Slim-Line G2

EnVision LED-LHB-2FT-3P110-F-40K-UNV – Slim-Line G2

$126.00
$126.00
Sale Sold out

LED-LHB-2FT-3P110-F-40K-UNV
Request a Quote
Product Overview

EnVision's LED-LHB-2FT-3P110-F-40K-UNV high bay supplies up to 15,950 lumens with selectable 110/80/60w output on universal 120-277V, suited to high-ceiling industrial bays with straightforward install and confirmation.

Key Features
  • Selectable power: 110/80/60w set at install, one SKU covering multiple loads
  • Output: up to 15,950 lumens matching the selected wattage
  • Color temperature: 4000K
  • Dimming: 0-10V for smooth level control
  • Beam angle: 90° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location
  • Finish: White Frosted
  • Compliance: UL/DLC Listed, 5-year warranty
  • Packaged 2 per box
Technical Specifications
Brand EnVision
Wattage 110/80/60w
Lumens 15,950/11,600/8,700
Color Temperature 4000K
Voltage 120-277V
Dimming 0-10V
Beam Angle 90°
CRI >80
IP Rating Damp Location
Finish White Frosted
Certification UL/DLC PREM/ 5 Yrs
Box Quantity 2
UPC 852321007752
Applications

Suited to high-ceiling industrial bays, warehouse and distribution ceilings, and manufacturing floors.

Compatibility & Installation Notes

Confirm mounting height and required foot-candles for your ceiling before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

Order the LED-LHB-2FT-3P110-F-40K-UNV to standardize on one flexible fixture across the job.
