EnVision LED-EMB-8W-HV-0/10V – 120v OUTPUT (Works with all 0-10V Dim or <8W fixtures -2 Piece Split Design-

Product Overview

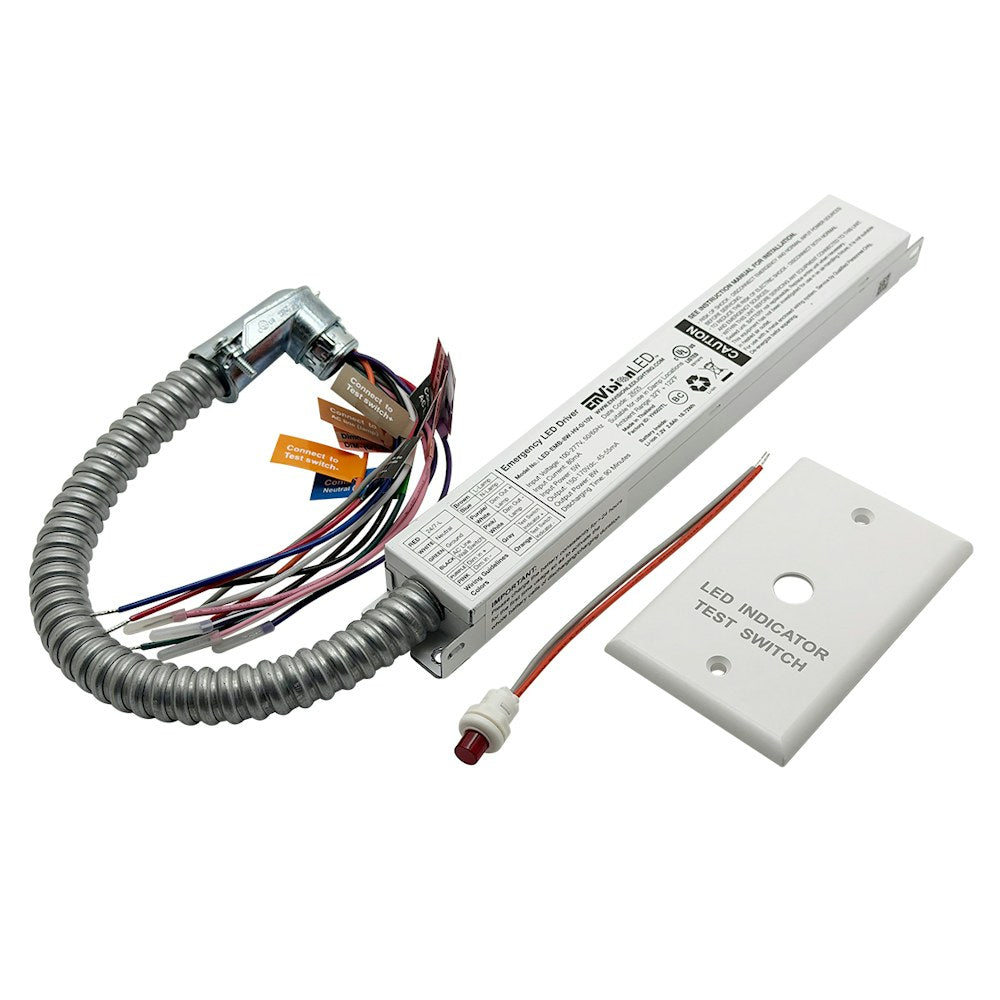

The EnVision LED-EMB-8W-HV-0/10V is an 8W emergency battery backup for compatible LED lamps. It provides emergency-mode power when normal AC power is interrupted.

It supports lamps in specified wattage ranges with or without 0-10V dimming. The unit includes a lithium-ion battery, test switch, status indicator and rest mode.

Key Features

• 8W emergency-mode output with more than 90 minutes of emergency operation
• Input rated 100–277V AC, 50/60Hz
• For 10–300W lamps with 0-10V dimming, or 10–32W lamps with or without 0-10V dimming
• Lithium-ion battery with overcharge and over-discharge protection
• UL Listed for damp locations; IP20

Emergency Power for Compatible LED Lamps

The EnVision LED-EMB-8W-HV-0/10V supplies 8W in emergency mode when normal AC power is interrupted. The manufacturer specifies more than 90 minutes of emergency operation.

The unit includes a built-in AC relay to control normal LED driver operation.

Lamp Wattage and Dimming Compatibility

The manufacturer specifies this backup for 10–300W lamps with 0-10V dimming, and for 10–32W lamps with or without 0-10V dimming.

• With 0-10V dimming: lamp power range of 10–300W
• With or without 0-10V dimming: lamp power range of 10–32W

Input, Battery and Recharge Details

The unit has a 100–277V AC, 50/60Hz input and a 7.2V, 2.6Ah lithium-ion battery rated at 18.72Wh. The specified recharge time is at least 36 hours. The manufacturer instructs users to charge the battery for more than 24 hours before first use.

• Emergency-mode output power: 8W
• Emergency operating time: more than 90 minutes
• Operating temperature: 32°F to 122°F

Test Switch, Rest Mode and Installation

The backup includes a test switch and an LED status indicator. The manufacturer directs that installation be performed by a licensed electrician.

• Press the test switch to enter emergency mode; release it to return to charging mode.
• Rest mode is available for battery storage.
• The manufacturer states that the unit can be used in sealed fixtures or installed in an open area of a fixture. Keep it away from flammable materials and provide good heat dissipation.

Before You Order

Check that the lamp wattage and dimming configuration fall within the stated compatibility ranges.

• Installation is to be performed by a licensed electrician.
