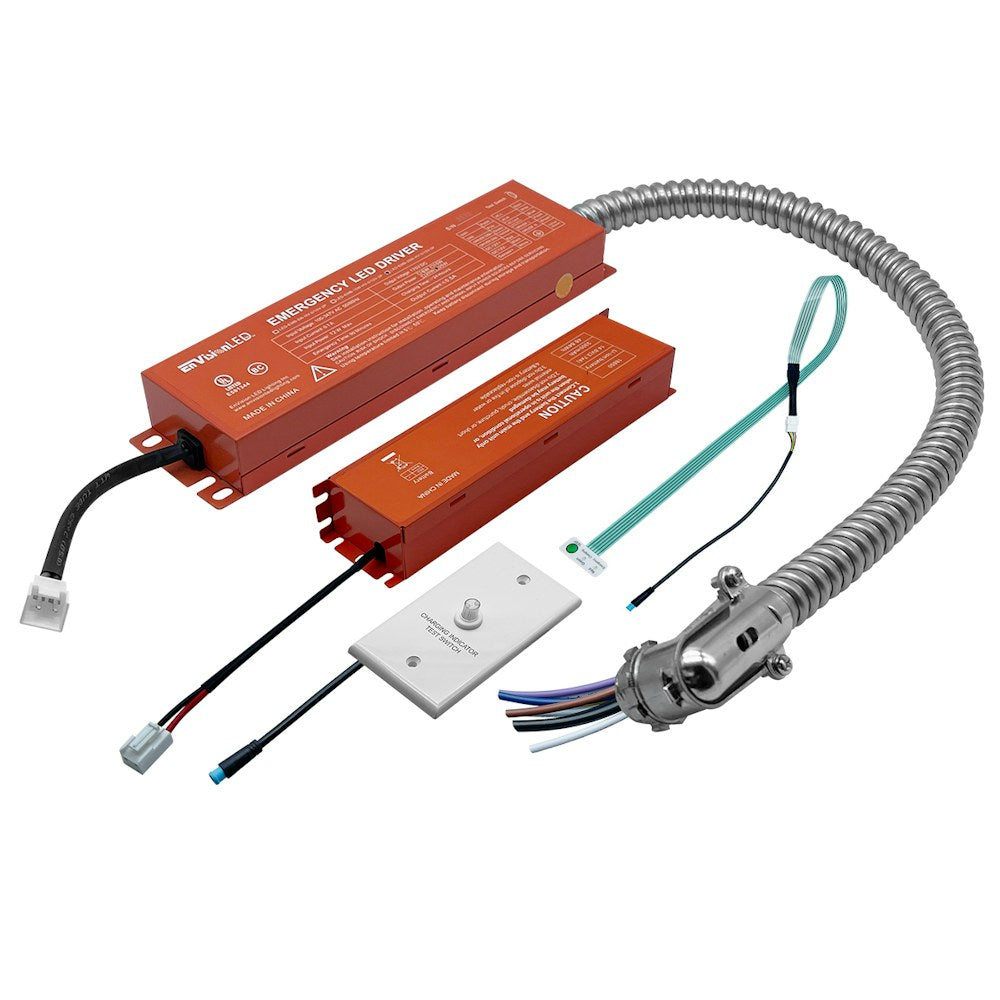

EnVision LED-EMB-25W-HV-2P – 120v OUTPUT (Works with all 0-10V Dim or <25W fixtures -2 Piece Split Design-

Product Overview

The EnVision LED-EMB-25W-HV-2P is a split-design emergency battery backup for LED fixtures. It provides 25W of emergency output and automatically switches to emergency operation when normal AC power is lost.

It accepts 100–277V AC at 50/60Hz and has a specified emergency runtime of 90 minutes. The manufacturer describes it for indoor fixtures with an external driver and internal housing space.

Key Features

• Split-design battery backup
• 25W emergency output
• 100–277V AC, 50/60Hz input
• 90-minute emergency runtime
• Automatic changeover when AC power is lost
• UL Listed for field installation

Emergency operation and output

The LED-EMB-25W-HV-2P provides 25W of emergency output with a specified runtime of 90 minutes. When AC power is lost, it detects the outage and switches to emergency mode. When AC power returns, it resumes AC operation and begins recharging.

• Output voltage: ≤110V AC
• Adaptive power: ≤25W

Input and fixture requirements

The unit accepts 100–277V AC at 50/60Hz and requires an unswitched AC power source. The LED luminaire's power must not exceed the emergency power.

• Use with grounded, UL Listed fixtures rated for dry or damp locations.
• For indoor fixtures only.

Split design and installation context

This model has separate charger and battery components. The manufacturer describes it for fixtures with an external driver and internal housing space, including wall packs and canopy fixtures.

It is UL Listed for field installation. Disconnect normal and emergency input power before servicing.

Before You Order

Confirm that the fixture's LED load does not exceed the emergency power and that an unswitched AC power source is available.
