EnVision LED-EMB-16W-HV-0/10V – 120v OUTPUT (Works with 0-10V Dim or <16W fixtures

Product Overview

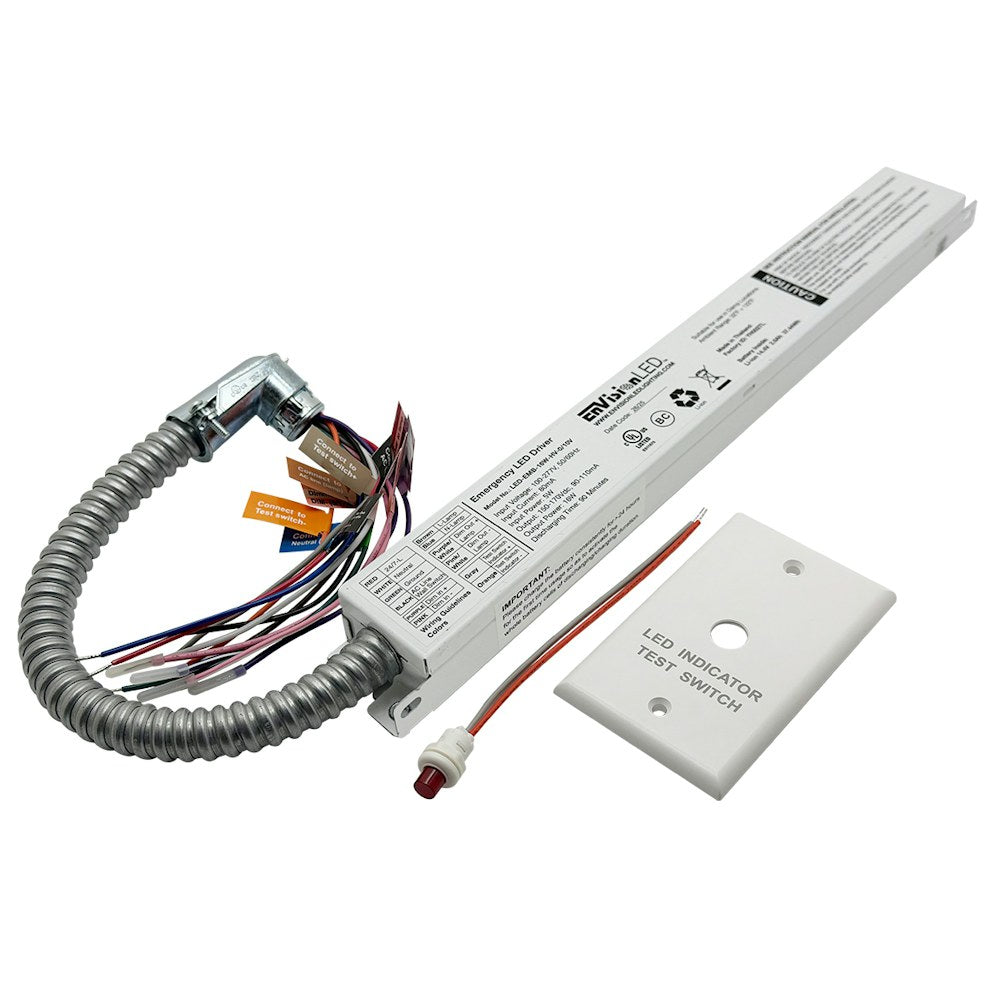

The EnVision LED-EMB-16W-HV-0/10V is a 16W emergency battery backup for compatible lighting loads. Its manufacturer documentation specifies 100–277V AC input and describes use with lamps that have 0–10V or 1–10V dimmer function.

The unit includes a rechargeable lithium-ion battery, test switch, and status indicator. It is UL Listed for damp locations and has an IP20 rating.

Key Features

• 16W emergency-mode output
• 100–277V AC, 50/60Hz rated input
• Specified for 10–300W lamps with 0–10V dimming
• Also specified for 10–32W lamps with or without 0–10V dimming
• Lithium-ion battery: 7.2V, 2.6Ah, 18.72Wh
• More than 90 minutes of emergency time
• Test switch, status indicator, rest mode, and initial functional self-check

Emergency Output and Runtime

The LED-EMB-16W-HV-0/10V is rated for 16W emergency-mode output and more than 90 minutes of emergency time. The manufacturer documentation gives a DC output range of 120–190V and separately lists 150–170V DC for emergency-mode output.

• Startup capability: 400W for 500ms
• Recharge time: at least 36 hours

Lamp Wattage and Dimming Requirements

The manufacturer specifies 10–300W lamps with 0–10V dimming. It also describes use with 10–32W lamps with or without 0–10V dimming. Check the connected lamp and driver requirements against the manufacturer's wiring information.

Input Power and Battery

The unit is rated for 100–277V AC at 50/60Hz, with maximum input power of 5W. Its rechargeable lithium-ion battery is rated at 7.2V, 2.6Ah, and 18.72Wh.

• Maximum input current: 80mA
• Power factor: greater than 0.5

Location Rating and Installation Notes

The unit is UL Listed for damp locations and has an IP20 rating. Installation instructions call for installation by a licensed electrician, good heat dissipation, and separation from flammable materials. The manufacturer instructs users to charge the battery for more than 24 hours before first use.

Before You Order

Check that the lamp wattage and dimming arrangement match the manufacturer's stated requirements.
