EnVision LED-ECODL-5/6-12W-RGB+W – RGB+W

(No Ratings)
SKU: LED-ECODL-5/6-12W-RGB+W
Price: $30.80
Free shipping on orders over $1,500

Description

Product Overview

The EnVision LED-ECODL-5/6-12W-RGB+W is a 12W smart retrofit downlight that produces 1,000 lumens and offers RGB plus tunable white (2700–6500K).

It is Wi‑Fi enabled for app control, features a 100° beam with a frosted acrylic lens, and is ETL listed for wet locations.

Key Features

  • 12W, 1000 lm
  • RGB + W color with tunable white (2700–6500K)
  • 120V input; CRI >90 with R9 >50
  • Wi‑Fi control via EnVision Connect app; compatible with Google Home and Amazon Alexa
  • 100° beam angle; frosted acrylic lens
  • Wet-location rated; ETL Listed; CA Title 24 JA8-2022 CEC listed
  • Die-cast aluminum housing with white baffle; average life L70 50,000 hours
  • Includes quick-connect lead and E26 base adapter; dimmable to 5% via EnVision app (not compatible with wall dimmers)

What this fixture does

The LED-ECODL-5/6-12W-RGB+W is a smart retrofit downlight that provides RGB color selection plus tunable white (2700–6500K) and outputs 1,000 lumens from a 12W driver. It delivers wide, even illumination with a 100° beam for general recessed lighting.

  • RGB+W enables full-color scenes and warm-to-cool white tuning.
  • 100° beam angle for broad, even light distribution.

Applications and suitable spaces

This EnVision downlight is suitable for residential and light-commercial settings where color control or tunable white is desired.

  • Common uses: multifamily, offices, meeting rooms, retail, hospitality, education, and healthcare.
  • Suitable for retrofit into existing recessed cans and for new-construction when used with compatible housings.

Controls and dimming

The fixture is Wi‑Fi enabled and controlled with the EnVision Connect app (available on Apple App Store and Google Play). It supports voice control through Google Home and Amazon Alexa where those systems are configured.

  • Dimmable to 5% using the EnVision app.
  • Not compatible with wall-mounted dimmer switches; use app-based controls as specified.

Mounting and installation highlights

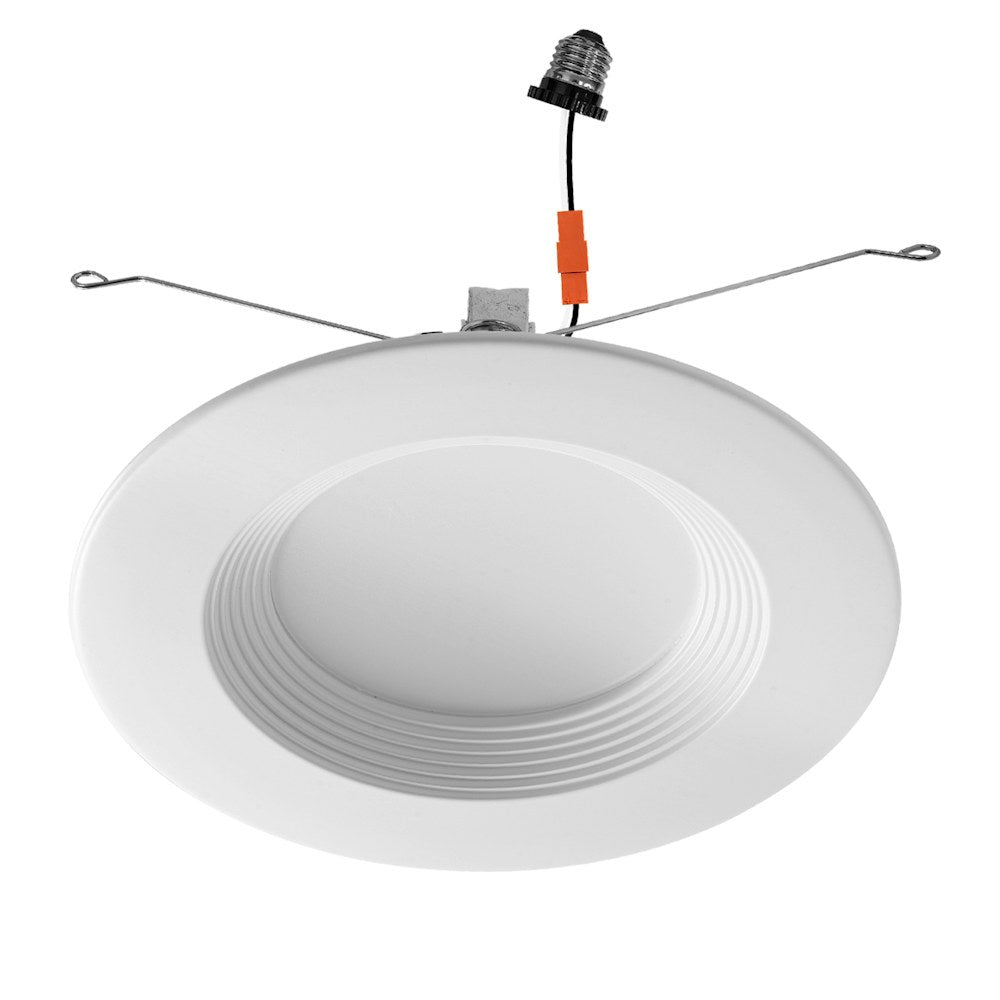

The LED-ECODL-5/6-12W-RGB+W is a retrofit-style downlight that installs into compatible 5" and 6" recessed cans using integrated spring clips and includes an E26 base adapter and quick-connect lead for retrofit installations.

  • Spring-clip mounting for retrofit into compatible recessed housings.
  • Fixture can be removed from below the ceiling for service or replacement as part of retrofit design.
  • Die-cast aluminum housing for heat dissipation.

Performance and technical details

This model carries several industry certifications and includes features intended to support performance and longevity.

  • CRI >90 with R9 >50
  • Operating temperature: -40° to 114° F
  • Average life (L70): 50,000 hours
  • Built-in 2.5 kV surge protector; flicker-free driver
  • Certifications: ETL Listed (USA & CA), CA Title 24 JA8-2022 CEC listed; meets LM-79 and LM-80; 5 Year Limited Warranty

Before You Order

Verify recessed can size and that a spring-clip retrofit and E26 adapter are compatible with your existing housing.

  • This product is dimmable only via the EnVision app and is not compatible with wall dimmers.
  • Optional housings and fire-rated cans are sold separately for new-construction or code-specific requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ECODL-5/6-12W-RGB+W – RGB+W. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
SKULED-ECODL-5/6-12W-RGB+W
TypeLED Downlight (Retrofit)
Wattage12W
Lumens1000 lm
FinishRGB + W (2700–6500K tunable white); White baffle (die-cast aluminum housing)
Voltage120V
Dimming / ControlWi‑Fi (EnVision Connect app); dimmable to 5% with app (not compatible with wall dimmers)
CRI>90 (R9 >50)
Beam Angle100°
Size6"
LensFrosted acrylic, non‑yellowing
Operating Temperature-40° to 114° F
Rated Life50,000 hours
IP / Environmental RatingWet Location Rated
Certifications / WarrantyETL Listed; CA Title 24 JA8-2022 CEC listed; Meets LM-79 & LM-80; 5 Year Limited Warranty
UPC819715025242
