EnVision LED-DLJBX-TML-GMB-2R-8W-5CCT-WH – Trimless-Line

Product Overview

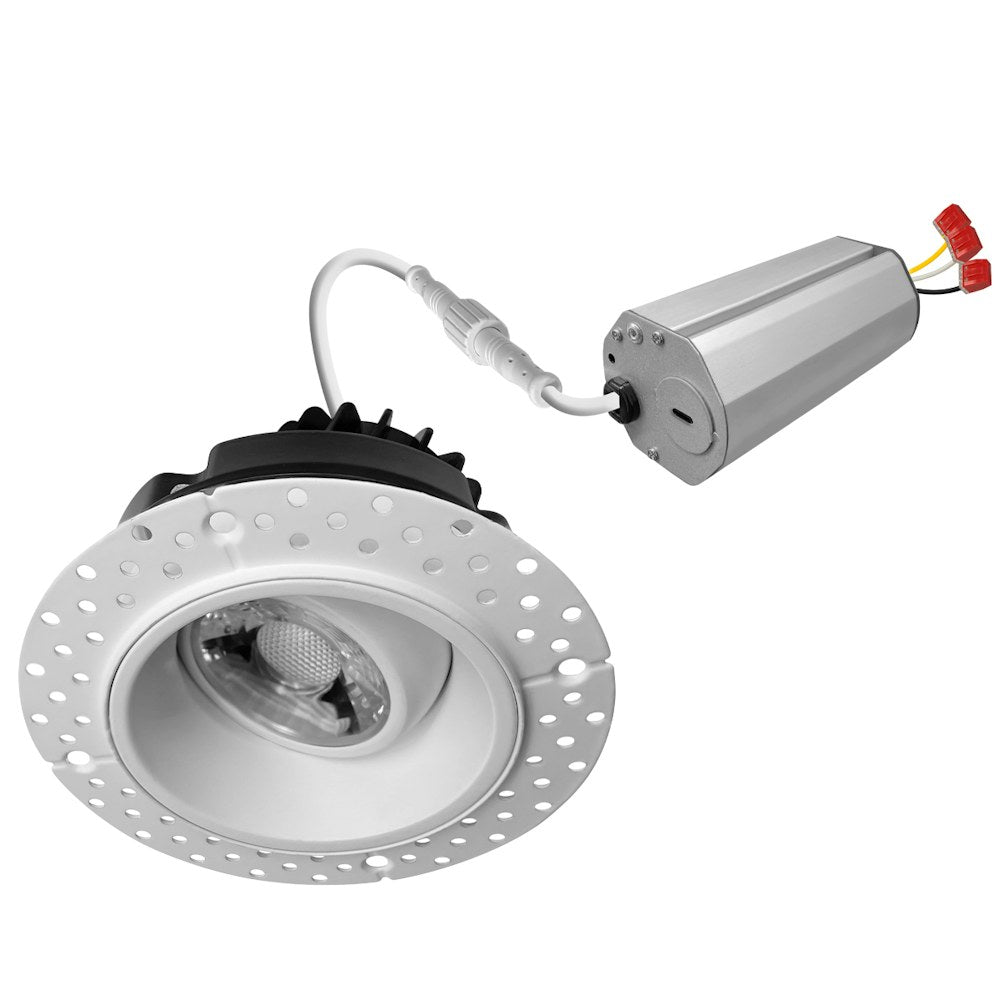

The EnVision LED-DLJBX-TML-GMB-2R-8W-5CCT-WH is a 2" trimless recessed downlight rated at 8W with a nominal 600 lumens and five selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K).

This specification-grade fixture features high color rendering (>90 CRI, R9 >50), a standard 38° beam optic, wet-location rating, ETL listing for USA/Canada, CA Title 24 JA8 listing, and a 5‑year limited warranty.

Key Features

• Wattage: 8W — nominal 600 lumens
• 5‑CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• Color rendering: >90 CRI with R9 >50
• Beam angle: 38° standard; 24° and 60° field‑install optics available separately
• Dimming: 120V Triac/ELV driver (flicker‑free); manufacturer lists tested dimmers
• Environment & listing: Wet‑location rated; ETL listed (US/CA); CA Title 24 JA8 listed
• Construction: Metal housing with die‑cast aluminum heatsink; clear lens; mud‑in ring included
• Driver: Built‑in 2.5 kV surge protector; prewired junction box (3 in / 3 out)

What this fixture is for

Direct answer: The LED-DLJBX-TML-GMB-2R-8W-5CCT-WH is a 2" trimless recessed downlight intended for general recessed lighting in commercial, multifamily, and residential applications.

Common applications include offices, meeting rooms, corridors, retail, hospitality, education, and healthcare where compact recessed illumination is desired.

• Form factor: 2" round trimless design with a mud‑in ring included
• Typical spaces: residential & multifamily, offices, retail, hospitality, education, healthcare

Light output and optical performance

Direct answer: The fixture is rated at approximately 600 lumens at 8W with a standard 38° beam and high color fidelity (>90 CRI, R9 >50).

Optical options: Field‑install lenses for 24° and 60° distributions are available as accessories; manufacturer photometric data and zonal lumen summaries are provided for design verification.

• Nominal output: 600 lm (model rating)
• Beam options: 38° standard; 24° and 60° optics available separately
• Color: 5‑CCT selectable — 2700K, 3000K, 3500K, 4000K, 5000K

Electrical and dimming

Direct answer: The fixture is 120V and uses a Triac/ELV dimmable driver with built‑in 2.5 kV surge protection and is specified as flicker‑free.

Dimming compatibility: The manufacturer lists tested Triac/ELV dimmers from several brands; other dimmers may be compatible but have not been tested.

• Input voltage: 120V
• Dimming: Triac/ELV (flicker‑free); tested dimmer list available from manufacturer
• Surge protection: Built‑in 2.5 kV

Mounting, installation and serviceability

Direct answer: This is a mud‑in trimless fixture that includes a prewired junction box and can be removed from below the ceiling for service or replacement.

Installation notes: New construction pre‑mounting plates are available separately. The fixture does not fit into a conventional recessed can; accessories such as extension cables, field‑install optics, and an optional emergency backup are available separately.

• Junction box: Prewired with 3 in / 3 out and 1/2" knockouts
• Serviceability: Removable from below the ceiling for service or replacement
• Accessories (order separately): new construction plates, extension cables, field‑install optics (24°/60°), optional emergency backup module

Listings, lifetime and warranty

Direct answer: The fixture is ETL listed for USA and Canada, CA Title 24 JA8‑2022 listed, IC rated and ASTM‑E283 air‑tight, and carries a 5‑year limited warranty.

Lifetime and environment: Manufacturer specifies an L70 average life of 50,000 hours and an operating temperature range of -40° to 114° F.

• Certifications: ETL (US/CA), CA Title 24 JA8, FCC testing listed in manufacturer documentation
• Environmental: Wet‑location rated; IC rated; ASTM‑E283 air‑tight
• Lifetime: L70 = 50,000 hours (manufacturer data)
• Warranty: 5‑year limited warranty

Before You Order

This page describes the white 2" trimless round SKU LED-DLJBX-TML-GMB-2R-8W-5CCT-WH; confirm SKU, finish and quantities before ordering.

• If different beam distributions are required, order the 24° or 60° field‑install optics separately.
• Optional accessories (order separately) include new construction plates, extension cables, and an emergency backup module.
• For dimmer selection, consult the manufacturer's tested dimmer list to verify compatibility.
