EnVision LED-DLJBX-TML-GMB-2R-8W-5CCT-BLK – Trimless-Line

Product Overview

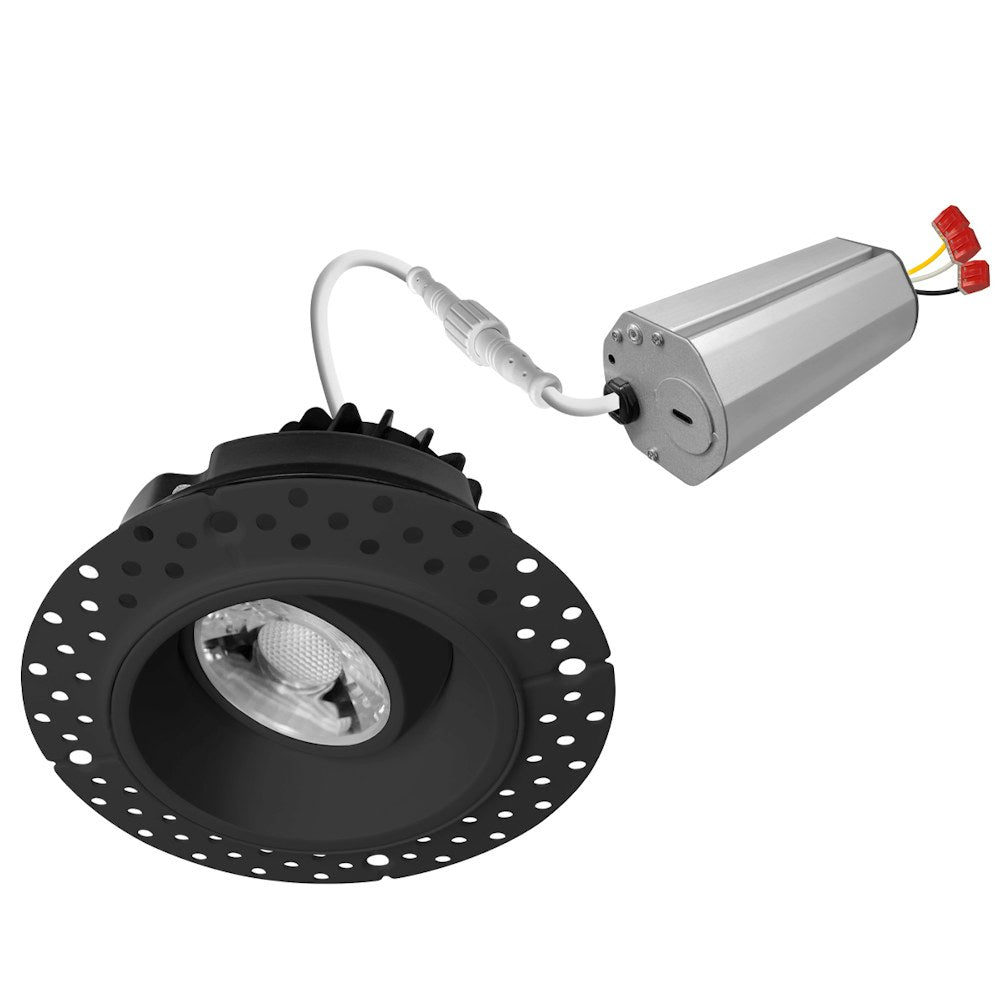

The EnVision LED-DLJBX-TML-GMB-2R-8W-5CCT-BLK is a 2" trimless recessed downlight that consumes 8W and delivers approximately 600 lumens with five selectable color temperatures (2700K–5000K).

The fixture is wet-location rated, uses a COB LED with >90 CRI and R9 >50, includes a mud-in ring and a pre-wired junction box, and carries ETL and CA Title 24 JA8 listings with a 5‑year limited warranty.

Key Features

• 8W nominal power; delivered lumen output ~600 lm
• 5‑CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
• Color rendering: >90 CRI with R9 >50 (COB LED)
• Beam: 38° standard; 24° and 60° field‑install optics available
• 120V input; Triac/ELV dimmable driver (flicker free) with built‑in 2.5 kV surge protection
• Wet location rated; ETL Listed (US & CA); CA Title 24 JA8‑2022 CEC listed
• Includes mud‑in ring and pre‑wired junction box (3 in / 3 out); removable from below the ceiling for service
• Diecast aluminum heatsink and metal housing; clear lens; 2‑step MacAdam ellipses

What this fixture does

A compact 2" trimless recessed downlight intended for general and accent lighting. It provides approximately 600 lumens from an 8W source and allows field selection of five CCTs to match room conditions or design intent.

• Minimal trimless ceiling appearance
• Mud‑in ring included for seamless finish
• Serviceable from below the ceiling

Where to use it

Suitable for interior spaces that need compact, high‑quality recessed lighting and where wet‑location rating or air‑tight construction is required.

• Residential and multifamily
• Offices and meeting rooms
• Education, healthcare, retail and hospitality
• Wet‑location suitable areas such as covered outdoor ceilings and bathrooms

Light output and optics

Uses a COB LED with >90 CRI and R9 >50 for improved color rendering. The standard configuration has a 38° beam; 24° and 60° field‑install lenses are available to change distribution.

• Nominal lumen output: ~600 lm
• Standard beam angle: 38°; 24° and 60° optics available as accessories
• Clear lens; 2‑step MacAdam ellipses

Electrical requirements and dimming

Designed for direct connection to 120V branch circuits. The factory driver supports Triac/ELV dimming, is flicker‑free, and includes an integrated 2.5 kV surge protector. Manufacturer lists tested Triac/ELV dimmers; other dimmers may work but should be verified.

• Input voltage: 120V
• Dimming: Triac/ELV (flicker free); tested dimmers referenced by manufacturer
• Built‑in 2.5 kV surge protection
• Optional field‑install emergency backup accessory available (orders separately)

Mounting and serviceability

The fixture installs with a mud‑in trimless frame and includes a pre‑wired junction box. It does not fit into a standard recessed can and can be removed from below the ceiling for service. New construction plates, rough‑in plates and extension cables are available as separate accessories.

• Pre‑wired J‑box with 1/2" knockouts and 3 in / 3 out wiring
• Does not fit traditional recessed cans—uses its dedicated housing and mud‑in ring
• Field‑install accessories: new construction plates, rough‑in plates, extension cables, field optics, emergency backup

Certifications, ratings and warranty

ETL Listed for the U.S. and Canada, JA8‑2022 CEC listed, IC rated and ASTM‑E283 air‑tight. Manufacturer specifies an average L70 life of 50,000 hours and provides a 5‑year limited warranty.

• ETL Listed (USA & Canada)
• CA Title 24 JA8‑2022 CEC listed
• Wet location rated; IC rated; ASTM‑E283 air‑tight
• Average life (L70): 50,000 hours
• 5‑year limited warranty

Before You Order

Verify the model SKU, required quantity, beam angle and finish before ordering; accessories (new construction plates, rough‑in plates, extension cables, field optics, emergency backup) are sold separately.

• This fixture does not fit into a standard recessed can—use the included mud‑in ring and dedicated housing.
• If emergency backup or a different beam angle is needed, order the appropriate accessory separately.
• Confirm dimmer compatibility for your control system; manufacturer provides a list of tested Triac/ELV dimmers.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-TML-GMB-2R-8W-5CCT-BLK – Trimless-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
