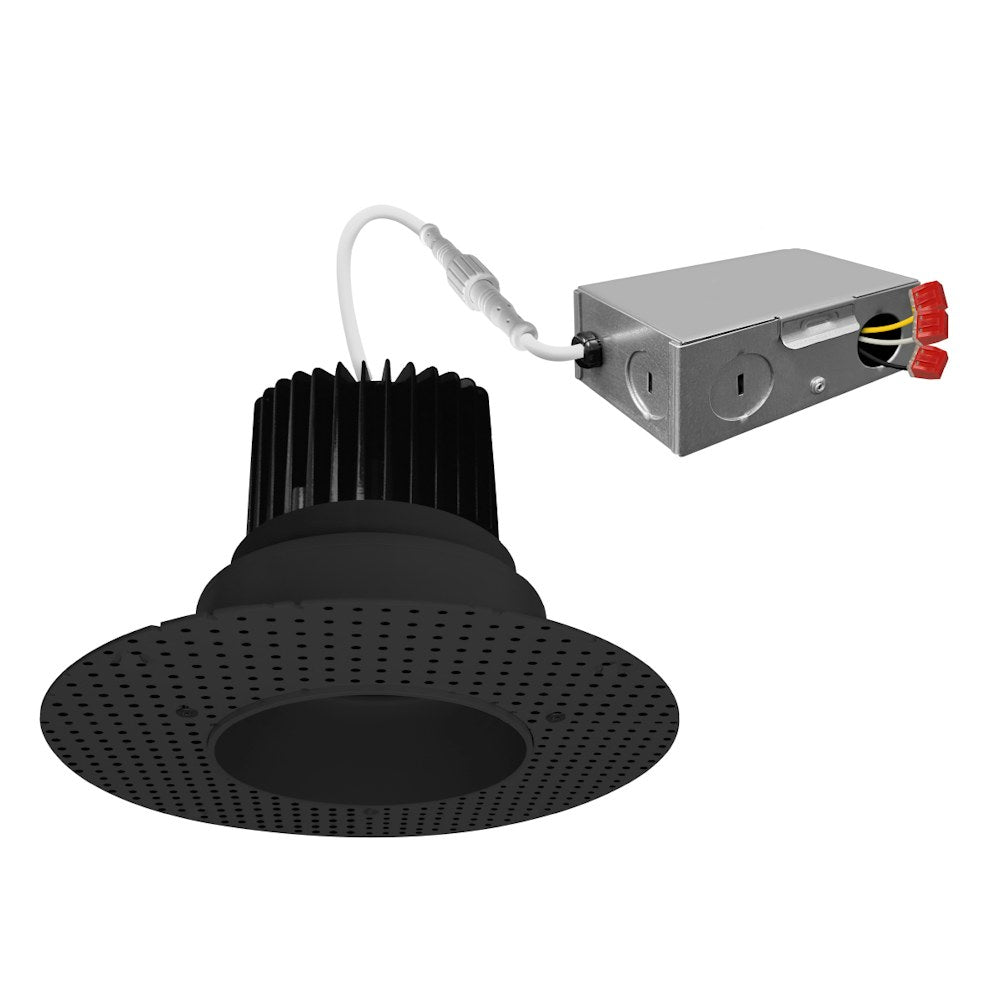

EnVision LED-DLJBX-TML-4R-15W-5CCT-BLK – Trimless-Line

Product Overview

The EnVision LED-DLJBX-TML-4R-15W-5CCT-BLK is a 4" trimless recessed LED downlight rated at 15W with nominal ~1000 lumens and five selectable CCTs (2700K, 3000K, 3500K, 4000K, 5000K).

The fixture includes a mud-in ring for trimless installation, a metal housing with clear lens, an integrated junction box, built-in 2.5 kV surge protection, and carries ETL and CA Title 24 JA8 listings plus a 5-year limited warranty.

Key Features

• Wattage: 15W (4" round trimless)
• Light output: approximately 1000 lumens (varies slightly by optic)
• 5-CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• Color rendering: CRI >90 with R9 >50; 2-step MacAdam ellipses
• Beam angle: 38° standard; field-installable optics available for 24° and 60°
• Voltage & dimming: 120V; Triac/ELV dimmable (flicker-free driver)
• Surge protection: built-in 2.5 kV
• Environment: Wet-location rated; IC rated; ASTM-E283 air-tight
• Operating temperature: -40° to 114°F
• Average life: L70 = 50,000 hours
• Certifications: ETL Listed (USA/CA) and CA Title 24 JA8-2022 CEC listed
• Warranty: 5-year limited warranty
• Finish: Black (series available in White and Black)

What this fixture is for

Direct answer: The LED-DLJBX-TML-4R-15W-5CCT-BLK is a 4" trimless recessed downlight intended for general recessed lighting in commercial and multifamily settings.

Typical applications identified by the manufacturer include residential & multifamily, offices and meeting rooms, education, healthcare, retail and hospitality.

• Trimless design with mud-in ring for a seamless ceiling finish
• Manufacturer lists general recessed lighting and common commercial/multifamily applications

Light output and optical options

Direct answer: The 15W 4" model is specified at approximately 1000 lumens and ships with a clear lens and a 38° nominal beam; manufacturer photometrics show lumen variations depending on beam optics.

Field-installable optics for 24° and 60° are available separately to produce tighter or wider distributions.

• Nominal lumen output: ~1000 lm (manufacturer photometrics list fixture lumens slightly higher depending on optic)
• Standard beam: 38°; optional 24° and 60° field lenses available
• 5-CCT selectable (2700K–5000K) and CRI >90 with R9 >50

Electrical requirements and dimming

Direct answer: The fixture operates on 120V line voltage and uses a Triac/ELV dimmable, flicker-free driver with built-in 2.5 kV surge protection.

The manufacturer provides a tested list of TRIAC/ELV dimmers; other dimmers may be compatible but were not tested by the manufacturer.

• Voltage: 120V
• Dimming: Triac/ELV (flicker-free)
• Built-in 2.5 kV surge protection
• Manufacturer lists optional emergency backup (field installable) for selected fixtures

Mounting, cut-out and servicing

Direct answer: This is a mud-in trimless fixture that requires a specific cut-out and does not fit into a standard recessed can; it can be removed from below the ceiling for service.

A pre-wired junction box is integrated for circuit wiring, and the manufacturer offers new-construction plates and extension cables as accessories.

• Cut-out for 4" round model: 3-7/8" (manufacturer cut-out dimension)
• Mud-in ring included for trimless installation
• Pre-wired junction box with 3 in / 3 out and 1/2" knockouts
• Optional new-construction plates and extension cables available (sold separately)

Certifications, ratings and warranty

Direct answer: The fixture is ETL listed for USA and Canada, CA Title 24 JA8-2022 CEC listed, IC rated and ASTM-E283 air-tight, and carries a 5-year limited warranty.

Manufacturer performance data indicates L70 life of 50,000 hours and an operating temperature range of -40° to 114°F.

• Listings: ETL (USA/CA), CA Title 24 JA8-2022 CEC listed
• Environmental: Wet-location rated, IC rated, ASTM-E283 air-tight
• Lifetime: L70 = 50,000 hours
• Operating temperature: -40° to 114°F
• Warranty: 5-year limited warranty

Before You Order

This entry is for the 4" round trimless black model LED-DLJBX-TML-4R-15W-5CCT-BLK. Verify the exact model, finish and beam option before ordering.

• Confirm cut-out dimensions and that a trimless (mud-in) installation matches your ceiling construction.
• Order any required accessories—emergency backup, new-construction plates or field optics—separately if needed.
• Confirm dimmer compatibility with your control system; manufacturer publishes a list of tested TRIAC/ELV dimmers.
