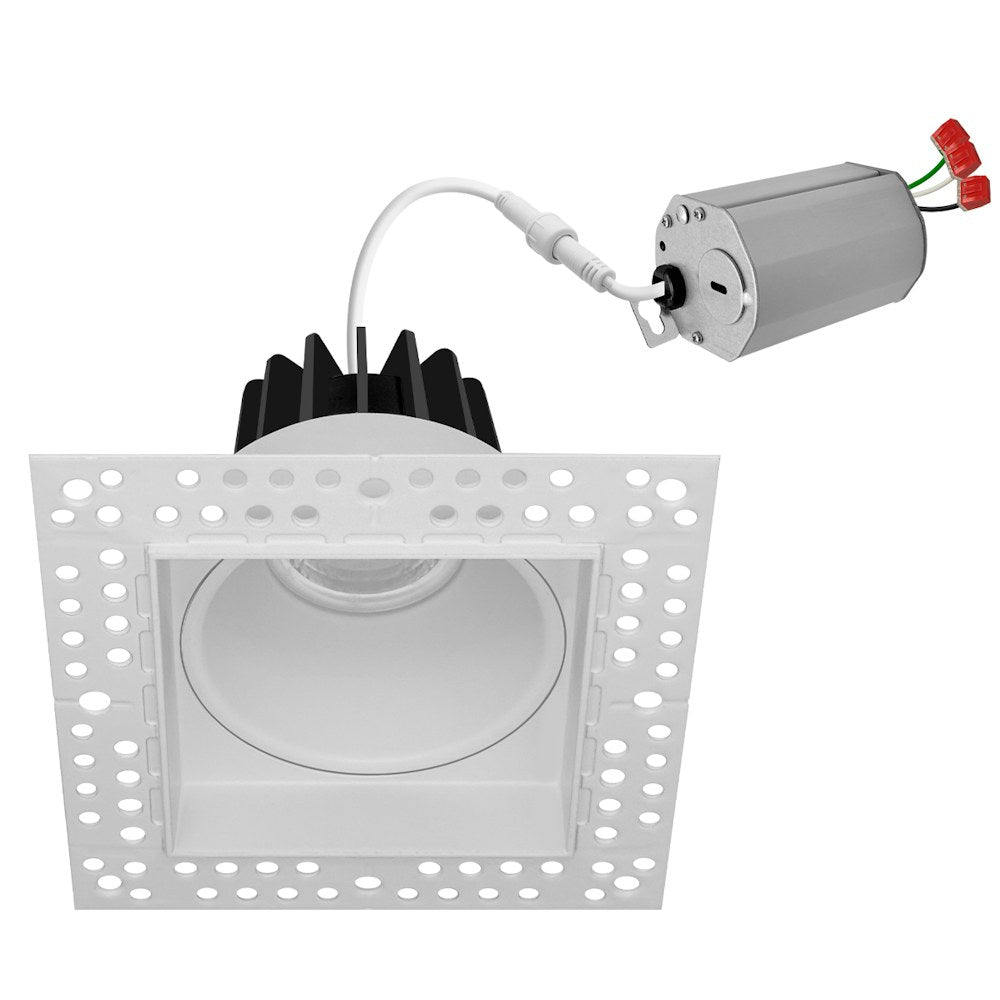

EnVision LED-DLJBX-TML-2SQ-8W-5CCT-WH – Trimless-Line

Product Overview

The EnVision LED-DLJBX-TML-2SQ-8W-5CCT-WH is a 2-inch square, white-finish trimless LED downlight rated at 8W and 600 lumens. It operates at 120V and has a 38° beam angle.

Choose from five color temperatures: 2700K, 3000K, 3500K, 4000K or 5000K. The fixture is wet-location rated and ETL listed for the United States and Canada.

Key Features

• 8W and 600 lumens with a 38° beam angle
• Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K and 5000K
• 2-inch square trimless design with white finish and included mud-in ring
• 120V operation with Triac/ELV dimming
• CRI greater than 90; wet-location rated

Output and Selectable Color Temperature

This EnVision downlight delivers 600 lumens at 8W with a 38° beam angle. Select 2700K, 3000K, 3500K, 4000K or 5000K.

• CRI: greater than 90

Trimless Design and Installation Details

The 2-inch square fixture includes a mud-in ring. Its specified ceiling cutout is 2-7/8 in. × 2-7/8 in.

This fixture does not fit into a recessed can and can be removed from below the ceiling for service or replacement. Its junction box is pre-wired, with circuit wiring arranged as 3 in/3 out.

Electrical, Dimming and Ratings

The downlight operates at 120V and supports Triac/ELV dimming. It is wet-location rated and ETL listed for the United States and Canada.

• California Title 24 JA8-2022 CEC listed
• IC rated and ASTM-E283 air-tight
• Five-year limited warranty

Applications

The Trimless-Line family is specified for general recessed lighting in residential and multifamily settings, offices and meeting rooms, education, healthcare, retail and hospitality spaces.

Before You Order

This model does not fit into a recessed can.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-TML-2SQ-8W-5CCT-WH – Trimless-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
