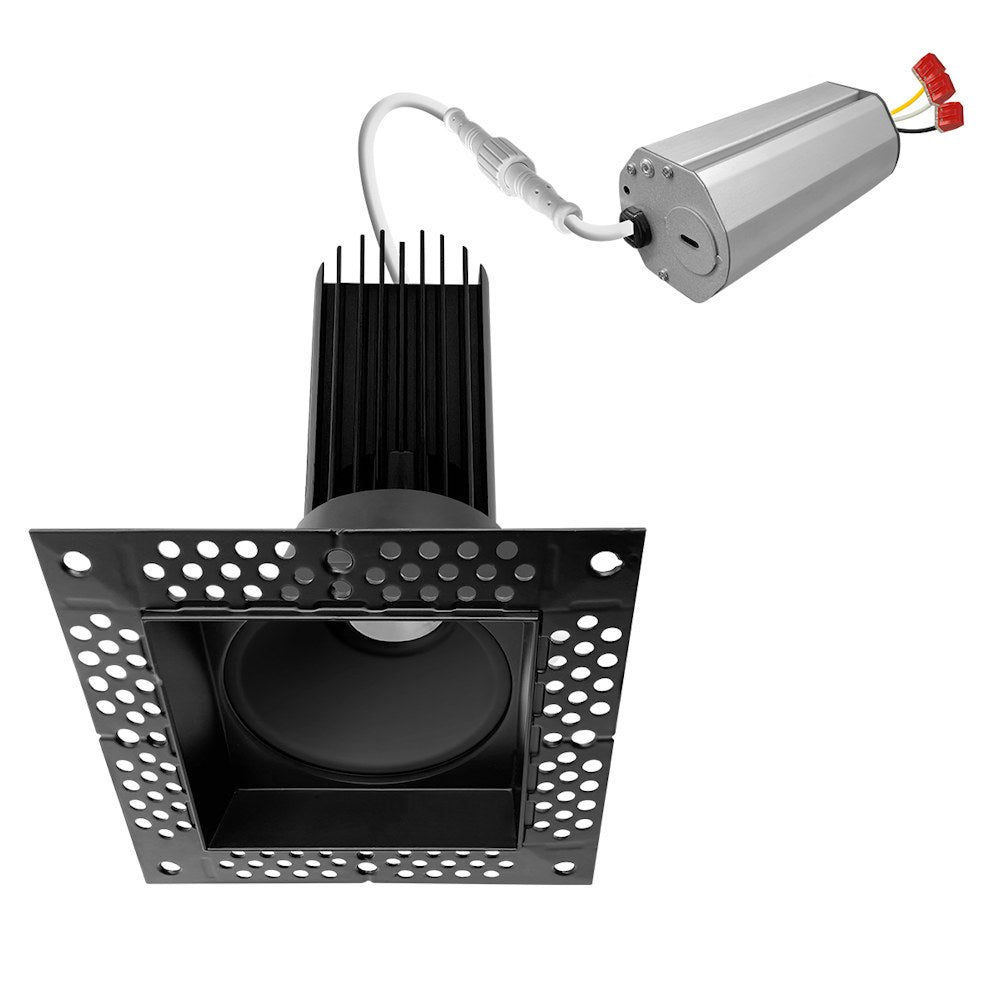

EnVision LED-DLJBX-TML-2SQ-15W-5CCT-BLK – Trimless-Line

Product Overview

The EnVision LED-DLJBX-TML-2SQ-15W-5CCT-BLK is a 2" square trimless recessed downlight that delivers approximately 1000 lumens from a 15W COB light engine with 5-CCT selectable options (2700K, 3000K, 3500K, 4000K, 5000K).

This commercial/residential compatible fixture includes a mud-in ring for trimless installation, a clear lens, metal housing with diecast aluminum heatsink, integrated junction box, >90 CRI with R9 >50, wet-location rating, ETL listing, JA8-2022 compliance, and a 5-year limited warranty.

Key Features

• Wattage: 15W; delivered lumen output: ~1000 lm
• Selectable color temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
• High color rendering: CRI >90 with R9 >50
• Driver: 120V Triac/ELV dimmable; built-in 2.5 kV surge protector; described as flicker free
• Wet-location rated; ETL Listed for USA and Canada; JA8-2022 (Title 24) listed; IC rated and ASTM E283 air-tight
• Average life (L70): 50,000 hours; operating temperature range: -40° to 114° F
• Finish: Black (this SKU); mud-in ring included for trimless installation; clear lens; metal housing and diecast aluminum heatsink
• Beam angle: 38° standard; 24° and 60° optics available as field-install lenses or accessories
• Pre-wired junction box with 3 in / 3 out and 1/2" knockouts

What this fixture delivers

This 2" square trimless recessed downlight is rated at 15W and is listed with an approximate delivered lumen output of 1000 lm. It uses a COB light source with a clear lens and is specified with CRI >90 and R9 >50 for enhanced color rendering.

• Nominal power: 15W
• Approximate delivered lumens: 1000 lm
• Light source: COB chip with clear lens

Where to use it

Manufacturer documentation lists general recessed lighting applications including residential and multifamily, offices and meeting rooms, education, healthcare, retail and hospitality. The fixture carries a wet-location rating for applicable environments.

• Typical applications: residential, multifamily, office, education, healthcare, retail, hospitality
• Wet-location rated

Electrical, dimming and driver features

The fixture is designed for 120V operation with an integral driver that supports Triac/ELV dimming. The driver is specified with a built-in 2.5 kV surge protector and is described as flicker free. The manufacturer provides a tested list of compatible dimmers.

• Input voltage: 120V
• Dimming: Triac/ELV (manufacturer lists tested dimmers)
• Surge protection: built-in 2.5 kV; flicker free described by manufacturer

Mounting, cutout and serviceability

This trimless model ships with a mud-in ring for trimless installation and a pre-wired junction box. The fixture is removable from below the ceiling for service without requiring a recessed can. Optional new-construction plates and extension cables are available as accessories.

• Cutout (2" square): 2-7/8" x 2-7/8"
• Pre-wired junction box with 3 in / 3 out and 1/2" knockouts
• Mud-in ring included; optional new-construction plates and extension cables available separately

Beam, optics and photometric notes

The standard beam for this SKU is 38°. Field-installable optics are offered to change beam spread to 24° or 60°. Manufacturer photometric files list measured fixture lumens and spacing criteria for each optic; for example, one photometric entry for the 2" 15W configuration at 38° reports around 1092 lumens (photometric output can vary by optic and measurement).

• Standard beam: 38°; 24° and 60° field-install lenses available
• Manufacturer photometric data and spacing criteria available for each optic

Certifications, ratings and warranty

The fixture is ETL listed for the U.S. and Canada, JA8-2022 (Title 24) listed, IC rated and meets ASTM E283 air-tight requirements. Manufacturer specifies L70 life of 50,000 hours and provides a 5-year limited warranty.

• Listings: ETL (USA & CA), JA8-2022 (Title 24)
• Environment & ratings: Wet-location rated, IC rated, ASTM E283 air-tight
• L70: 50,000 hours; 5-year limited warranty

Before You Order

Confirm the exact model, finish and quantity before ordering. Accessories such as new-construction plates, extension cables, emergency backup units and field-install optics are ordered separately.

• Verify cutout dimensions (2-7/8" x 2-7/8") and that trimless mud-in installation is appropriate for your ceiling construction.
• If emergency backup, alternate beam optics, or new-construction plates are required, select the corresponding accessory SKUs from the manufacturer.
• Consult the manufacturer's tested dimmer compatibility list for Triac/ELV dimming.
