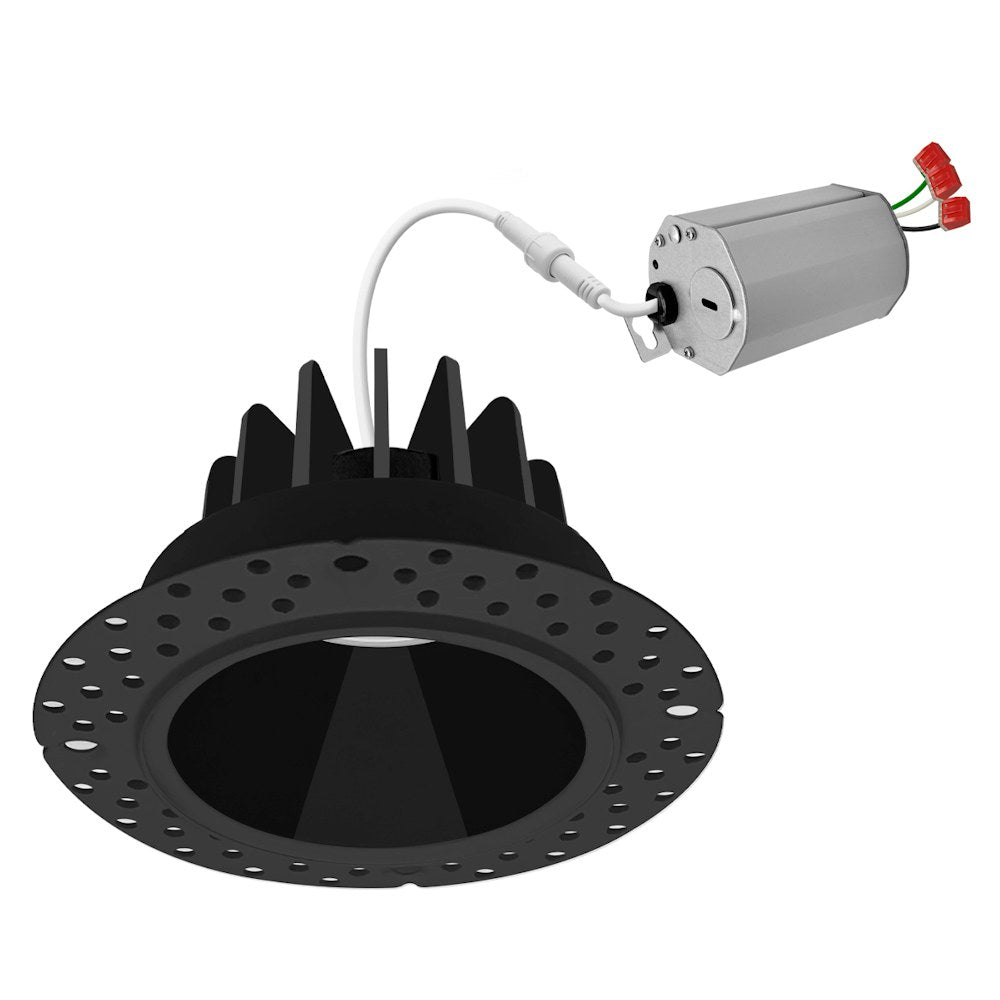

EnVision LED-DLJBX-TML-2R-8W-5CCT-BLK – Trimless-Line

Product Overview

The EnVision LED-DLJBX-TML-2R-8W-5CCT-BLK is a 2-inch round, black trimless LED downlight rated at 8W and 600 lumens. It has five selectable color temperatures from 2700K to 5000K and a standard 38° beam angle.

This wet-location-rated downlight is designed for general recessed lighting in residential and multifamily spaces, offices, meeting rooms, education, healthcare, retail, and hospitality settings. A trimless mud-in ring is included, and the fixture has a pre-wired junction box.

Key Features

• 2-inch round trimless downlight in black
• 8W; 600 lumens
• Selectable 2700K, 3000K, 3500K, 4000K, or 5000K
• 38° standard beam angle
• 120V; Triac dimmable
• CRI greater than 90; wet-location rated
• ETL listed for the USA and Canada; CA Title 24 JA8-2022 CEC listed

Output and Selectable Color Temperature

This 2-inch round EnVision downlight produces 600 lumens at 8W. Its five selectable color temperatures are 2700K, 3000K, 3500K, 4000K, and 5000K, and its CRI is greater than 90.

The standard beam angle is 38°. This model has a black finish.

Voltage and Dimming

The LED-DLJBX-TML-2R-8W-5CCT-BLK operates on 120V and is Triac dimmable. EnVision provides a list of tested compatible dimmer models; check that information when selecting a control.

Trimless Installation Details

This fixture includes a trimless mud-in ring and has a pre-wired junction box with circuit wiring built in. The specified ceiling cutout for the 2-inch round model is 2-3/5 inches.

The fixture does not fit into a recessed can and can be removed from below the ceiling for service or replacement. An optional new-construction plate is available separately.

Location Rating and Listings

The downlight is wet-location rated and IC rated. It is ETL listed for the USA and Canada and CA Title 24 JA8-2022 CEC listed. The manufacturer specifies a five-year limited warranty.

Before You Order

This model does not fit into a recessed can.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-TML-2R-8W-5CCT-BLK – Trimless-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
