EnVision LED-DLJBX-TML-2R-15W-5CCT-BLK – Trimless-Line

Product Overview

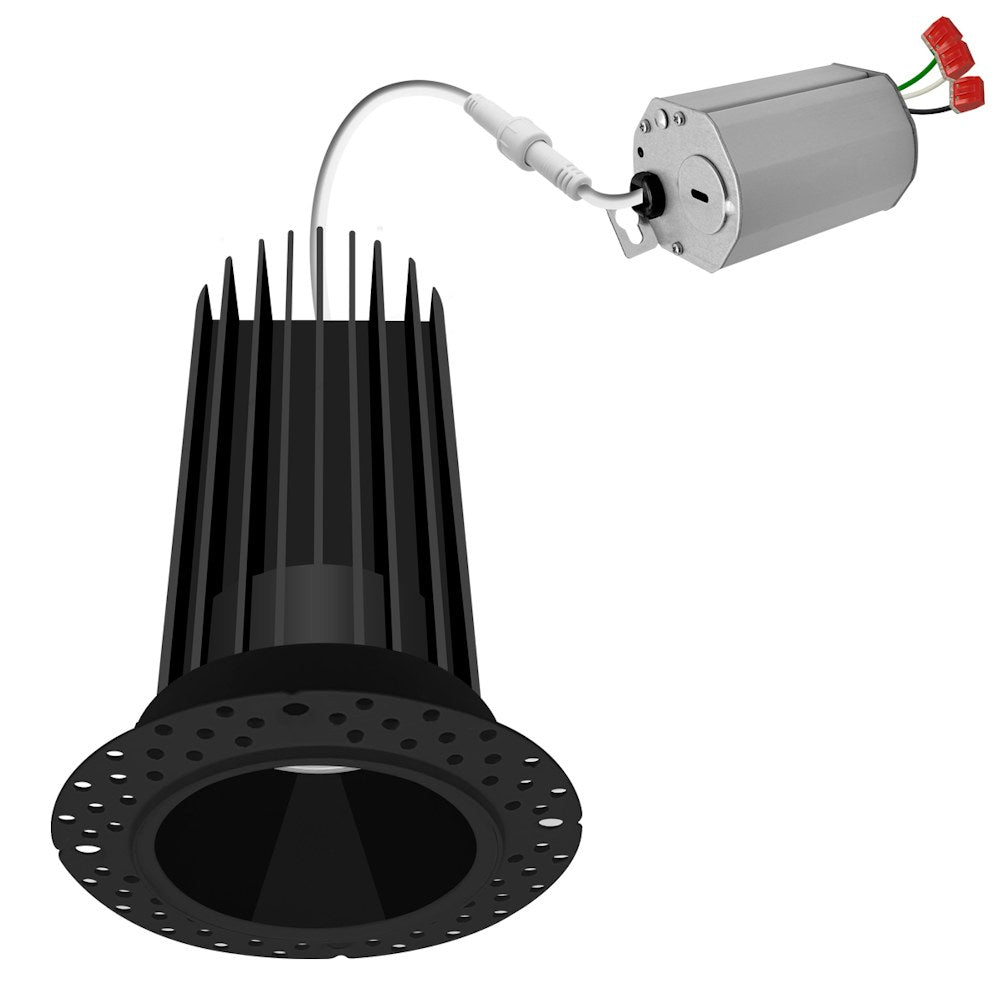

The EnVision LED-DLJBX-TML-2R-15W-5CCT-BLK is a 2-inch round trimless LED recessed downlight with a black finish. It is rated at 15W and 1,000 lumens, with five selectable color temperatures from 2700K to 5000K.

This model has a 38° beam angle, 120V input and a wet-location rating. A mud-in ring is included.

Key Features

• 2-inch round trimless downlight in black
• 15W; 1,000 lumens
• Selectable 2700K, 3000K, 3500K, 4000K or 5000K
• 38° beam angle; CRI greater than 90
• 120V; Triac/ELV dimming
• Wet-location rated; ETL listed for the USA and Canada

Output and Selectable Color Temperature

This 2-inch round EnVision downlight is rated at 15W and 1,000 lumens, with a standard 38° beam angle. Its five selectable CCT settings are 2700K, 3000K, 3500K, 4000K and 5000K. The fixture has a CRI greater than 90.

Trimless Design and Installation Details

The trimless fixture includes a mud-in ring. For the 2-inch round model, the specified ceiling cutout is 2-3/5 inches. This fixture does not fit into a recessed can and can be removed from below the ceiling for service or replacement.

• A pre-wired junction box with circuit wiring is specified.
• A new-construction plate is available as an optional accessory.

Electrical and Dimming

The downlight is specified for 120V operation and Triac/ELV dimming. Tested dimmer compatibility is listed in the manufacturer documentation.

Ratings and Listings

This model is wet-location rated. It is listed by ETL for the USA and Canada, and the manufacturer documentation identifies CA Title 24 JA8-2022, an IC rating and ASTM-E283 airtight construction. A five-year limited warranty is specified.

Before You Order

This trimless fixture does not fit into a recessed can.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-TML-2R-15W-5CCT-BLK – Trimless-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
