EnVision LED-DLJBX-ADJ-3RG-8W-5CCT-WH-SQ – SnapTrim-Line

(No Ratings)
SKU: LED-DLJBX-ADJ-3RG-8W-5CCT-WH-SQ
Price: $37.80
Free shipping on orders over $1,500

Description

Product Overview

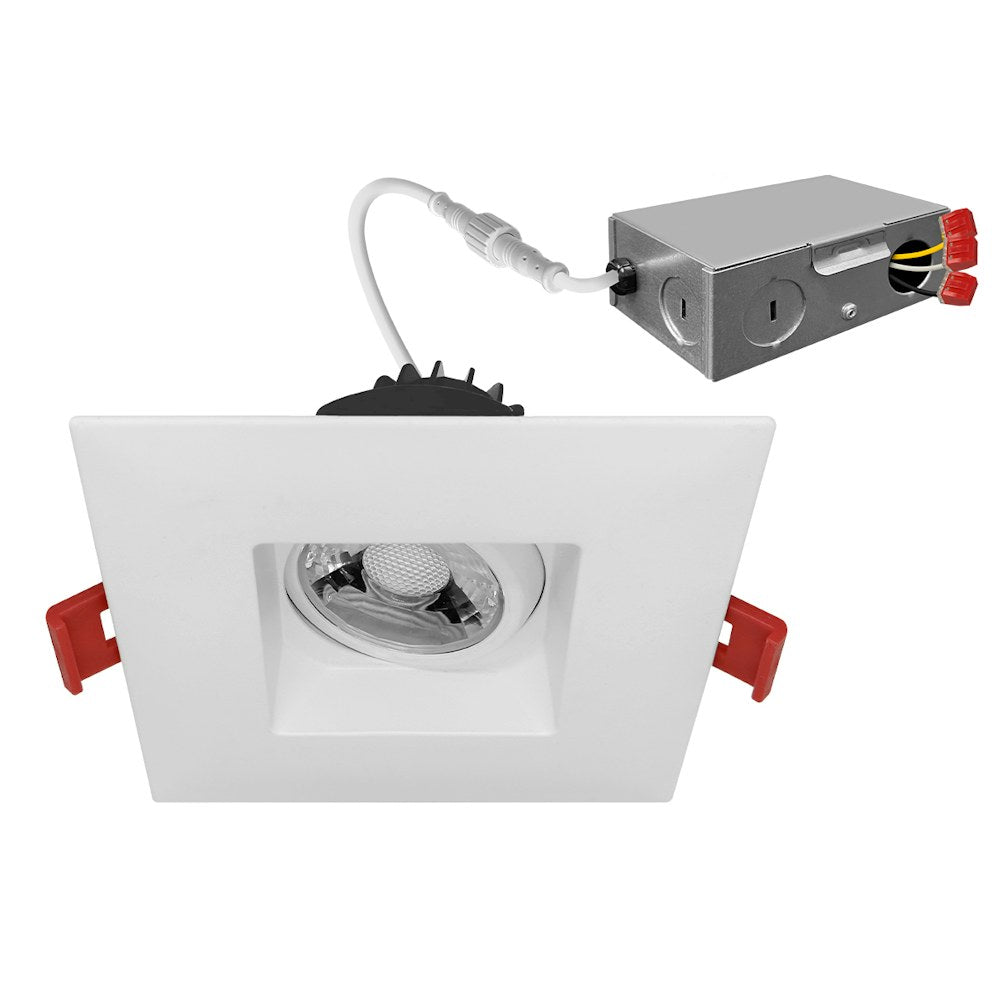

The EnVision LED-DLJBX-ADJ-3RG-8W-5CCT-WH-SQ is a 3" regressed gimbal canless SnapTrim-Line downlight delivering 8W and a manufacturer-nominal 600 lumens with >90 CRI.

Features include 5‑CCT selectable color temperatures (2700K/3000K/3500K/4000K/5000K), Triac/ELV dimmable driver, IP54 wet-location rating, ETL listing and CA Title 24 JA8 listing, with a 5‑year limited warranty.

Key Features

  • Wattage: 8W (nominal)
  • Light output: 600 lumens (manufacturer nominal)
  • Color temperature: 5‑CCT selectable — 2700K/3000K/3500K/4000K/5000K
  • CRI: >90 (R9 >50)
  • Beam: 38° standard (manufacturer offers field-install optics for other beam options)
  • Voltage & dimming: 120V; Triac/ELV dimmable (manufacturer lists tested dimmers)
  • Mounting: Canless SnapTrim with spring tension clips; 3-3/8" cutout
  • Ratings & warranty: ETL Listed (US/CA), CA Title 24 JA8 listed, IP54 wet-location rated, 5‑year limited warranty

What this fixture does

Answer: The LED-DLJBX-ADJ-3RG-8W-5CCT-WH-SQ is a 3" regressed gimbal canless downlight designed for general recessed lighting and targeted/adjustable illumination in interior spaces.

It is offered for residential and commercial interiors where a compact, adjustable downlight with selectable color temperature is required.

  • Trim style: White square regressed gimbal
  • Typical uses (per manufacturer): general recessed lighting, residential & multifamily, offices, education, healthcare, retail, hospitality

Light output and optical performance

Answer: The fixture is specified at 600 lumens (manufacturer nominal) with >90 CRI and an R9 >50.

Manufacturer photometric data is available for 24°, 38° and 60° optics; the standard SKU is published with a 38° beam angle.

  • Lumens: 600 lm (nominal)
  • Beam angle: 38° standard; field-install lenses available for 24° and 60°
  • Color rendering: >90 CRI, R9 >50
  • Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K

Voltage, dimming and driver features

Answer: This model is 120V and is compatible with Triac/ELV dimmers. The manufacturer lists tested dimmers from Lutron, Leviton, Legrand and Cooper.

The built-in driver includes a 2.5 kV surge protector and is described as flicker-free by the manufacturer.

  • Voltage: 120V AC
  • Dimming: Triac/ELV (manufacturer-tested dimmers listed)
  • Driver: Built-in with 2.5 kV surge protection; manufacturer describes flicker-free operation

Mounting, cutout and installation notes

Answer: The SnapTrim-Line is a canless fixture that installs with spring tension clips into ceilings 1/2" to 1.5" thick and does not require a recessed can.

The product includes a pre-wired junction box with knockouts and is serviceable from below the ceiling per the manufacturer notes.

  • Cutout: 3-3/8"
  • Ceiling thickness supported: 1/2" to 1.5"
  • New construction: optional pre-mounting/new construction plates are available separately
  • Note: This fixture is not intended to fit into a traditional recessed can

Ratings, listings and warranty

Answer: Manufacturer specifications list ETL listing for US/CA, CA Title 24 JA8-2022 listing, IP54 wet-location rating, IC rating and ASTM-E283 air-tight, with a 5‑year limited warranty.

Additional manufacturer data includes an L70 life of 50,000 hours and an operating temperature range of -40°F to 114°F.

  • Listings: ETL Listed (US/CA), CA Title 24 JA8-2022 listed
  • Environmental: IP54 wet-location rated, IC rated, ASTM-E283 air-tight
  • Lifetime: L70 ~50,000 hours (manufacturer spec)
  • Warranty: 5‑year limited warranty

Before You Order

Verify the SKU and trim shape—this SKU is the white square trim—and confirm quantities before ordering. Order optional accessories (new construction plates, extension cables, emergency backup, field optics) separately if required.

  • Requires a 3-3/8" cutout; does not fit into a standard recessed can.
  • Optional accessories (sold separately) include new construction plates, extension cables, field-install emergency backup and field optics (24°/60°).
  • Confirm dimmer compatibility with the manufacturer's tested dimmer list or consult the manufacturer for other dimmers.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-ADJ-3RG-8W-5CCT-WH-SQ – SnapTrim-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
SKULED-DLJBX-ADJ-3RG-8W-5CCT-WH-SQ
Type3" Regressed Gimbal Canless Downlight (SnapTrim-Line)
Wattage8W
Lumens600 lm (nominal)
Color TemperatureSelectable 2700K / 3000K / 3500K / 4000K / 5000K
CRI>90 (R9 >50)
Beam Angle38° standard (24° and 60° optics available)
Voltage120V
DimmingTriac/ELV (manufacturer-tested dimmers listed)
IP / Environmental RatingIP54 wet-location rated; IC rated; ASTM-E283 air-tight
Cutout3-3/8"
Ceiling ThicknessSupports ceilings 1/2" to 1.5" thick
FinishWhite square trim
Size3"
Certifications / WarrantyETL Listed (US/CA), CA Title 24 JA8-2022, 5‑year limited warranty
Operating Temperature-40° to 114°F
Rated Life50,000 hours (manufacturer spec)
UPC819715028083
