EnVision LED-DLJBX-ADJ-3RG-8W-5CCT-BLK-R – SnapTrim-Line

(No Ratings)
SKU: LED-DLJBX-ADJ-3RG-8W-5CCT-BLK-R
Price: $37.80
Free shipping on orders over $1,500

Description

Product Overview

The EnVision LED-DLJBX-ADJ-3RG-8W-5CCT-BLK-R SnapTrim-Line is a 3" canless, regressed gimbal downlight that provides nominally 600 lumens from an 8W input with a standard 38° beam and CRI >90.

This model includes a 5‑CCT selectable switch (27/30/35/40/50K), a 120V Triac/ELV dimmable driver with built‑in 2.5kV surge protection, an IP54 wet location rating, ETL listing and JA8 (Title 24) compliance, and is covered by a 5‑year limited warranty.

Key Features

  • 8W nominal, ~600 lumens (manufacturer specification)
  • 5‑CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
  • CRI >90, R9 >50, 3‑step MacAdam ellipses
  • 120V Triac/ELV dimmable driver, flicker free, built‑in 2.5kV surge protection
  • Canless SnapTrim design with spring clips and remote junction box — no recessed can required
  • IP54 wet location rating
  • Black round trim; 3" nominal size with 3‑3/8" cutout
  • ETL Listed (USA & CA), CA Title 24 JA8‑2022 listed, 5‑year limited warranty

What this fixture does

The LED-DLJBX-ADJ-3RG-8W-5CCT-BLK-R is a 3" regressed gimbal downlight intended for general recessed lighting in residential, multifamily and commercial interiors. The gimbal allows aiming of the light and the SnapTrim canless design installs without a recessed housing.

  • Typical applications: residential, multifamily, offices, retail, hospitality, education and healthcare
  • Canless SnapTrim system with spring clips and a pre‑wired junction box; does not fit into a traditional recessed can

Performance and optical output

Manufacturer ratings specify approximately 600 lumens at an 8W input for the standard 38° beam option. The fixture offers five selectable color temperatures and high color fidelity.

  • Nominal output: 600 lm at 8W (manufacturer specification)
  • Standard beam: 38° (other beam options and field‑install optics are available as accessories)
  • Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
  • Color quality: CRI >90, R9 >50

Electrical and dimming requirements

The fixture is designed for 120V operation and uses a Triac/ELV dimmable driver listed as flicker free. A 2.5kV surge protector is included in the driver design.

  • Voltage: 120V
  • Dimming: Triac/ELV compatible (manufacturer publishes a tested dimmer list)
  • Built‑in 2.5kV surge protection
  • Driver characteristics: flicker free (per manufacturer)

Mounting, dimensions and accessories

The SnapTrim canless assembly mounts with tension spring clips into 1/2" to 1.5" thick ceilings and includes a pre‑wired junction box. The fixture is serviceable from below the ceiling and optional new construction and rough‑in plates and other accessories are available.

  • Cut‑out dimension: 3‑3/8"
  • Ceiling thickness supported: 1/2" to 1.5"
  • Serviceable from below ceiling
  • Available accessories (ordered separately): universal pre‑mount plate, rough‑in plates, extension cables, field‑install optics, emergency backup

Listings and warranty

This model is ETL Listed for the U.S. and Canada and is CA Title 24 JA8‑2022 listed. It carries an IP54 wet location rating and a 5‑year limited warranty.

  • Certifications: ETL Listed (USA & CA), JA8 (Title 24) listed
  • Environmental rating: IP54 (wet location)
  • Operating temperature range: -40° to 114° F (manufacturer specification)
  • Warranty: 5‑year limited warranty; additional compliance: FCC Part 15, IC rated, ASTM‑E283 air‑tight per manufacturer

Before You Order

Confirm the model number, trim finish and needed accessories before ordering to ensure compatibility with your ceiling and project requirements.

  • This is a canless fixture and does not fit into traditional recessed cans — use SnapTrim canless installation or order compatible new construction/rough‑in plates if required.
  • Optional accessories (ordered separately) include new construction plates, extension cables, field‑install optics and emergency backup units.
  • If dimming is required, verify compatibility with your dimmer; the manufacturer publishes a tested dimmer list.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-ADJ-3RG-8W-5CCT-BLK-R – SnapTrim-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
SKULED-DLJBX-ADJ-3RG-8W-5CCT-BLK-R
Type3" Regressed Gimbal Canless Downlight (SnapTrim-Line)
Wattage8W
Lumens600 lm (nominal)
Color TemperatureSelectable 2700K / 3000K / 3500K / 4000K / 5000K
CRI>90 (R9 >50)
Beam Angle38° (standard)
Voltage120V
DimmingTriac/ELV dimmable (flicker free)
Surge ProtectionBuilt‑in 2.5kV
IP RatingIP54 (wet location)
FinishBlack round trim
Size / Cutout3" nominal / Cut‑out 3‑3/8"
Mounting TypeCanless SnapTrim with spring clips; pre‑wired remote junction box (3 in / 3 out)
Operating Temperature-40° to 114° F
CertificationsETL Listed (USA & CA), JA8 (Title 24)
Warranty5‑Year Limited Warranty
UPC819715027253

Comments

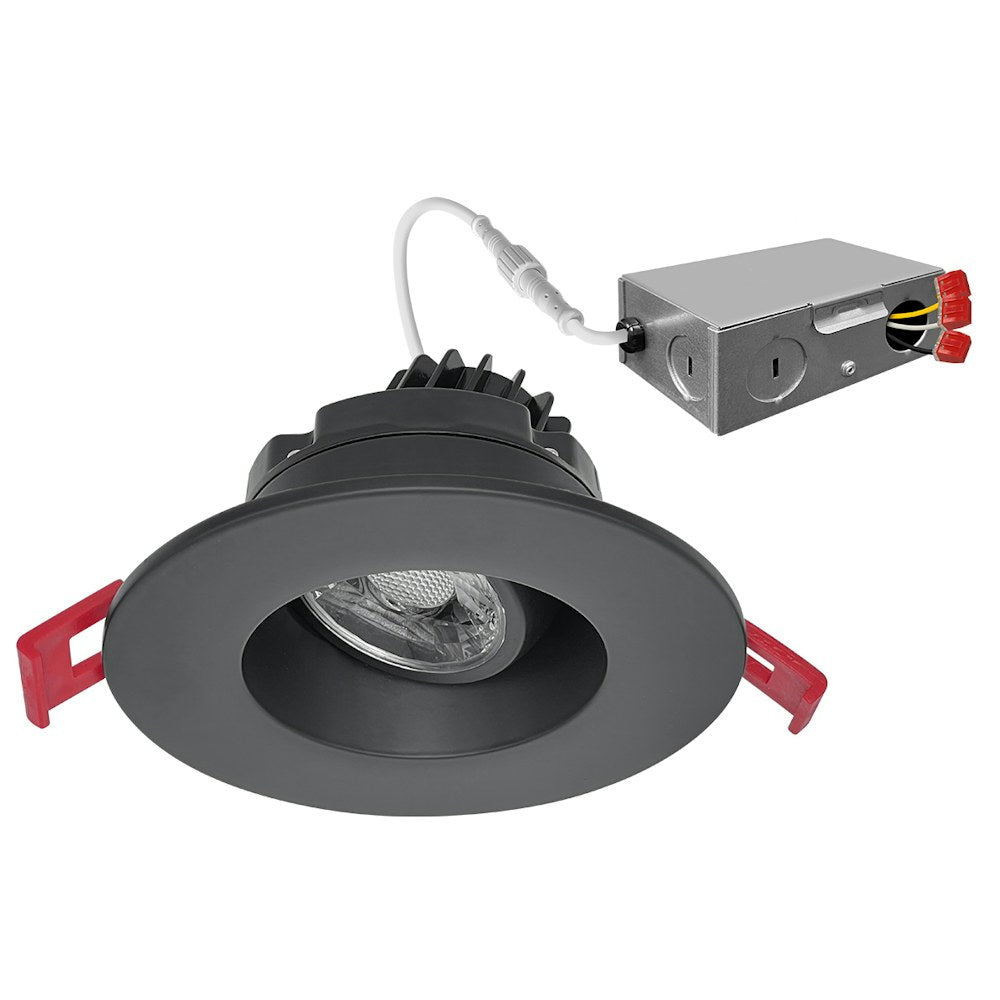

EnVision LED-DLJBX-ADJ-3RG-8W-5CCT-BLK-R LED Downlight
