EnVision LED-DLJBX-ADJ-2-5W-5CCT-WH – SnapTrim-Line

Product Overview

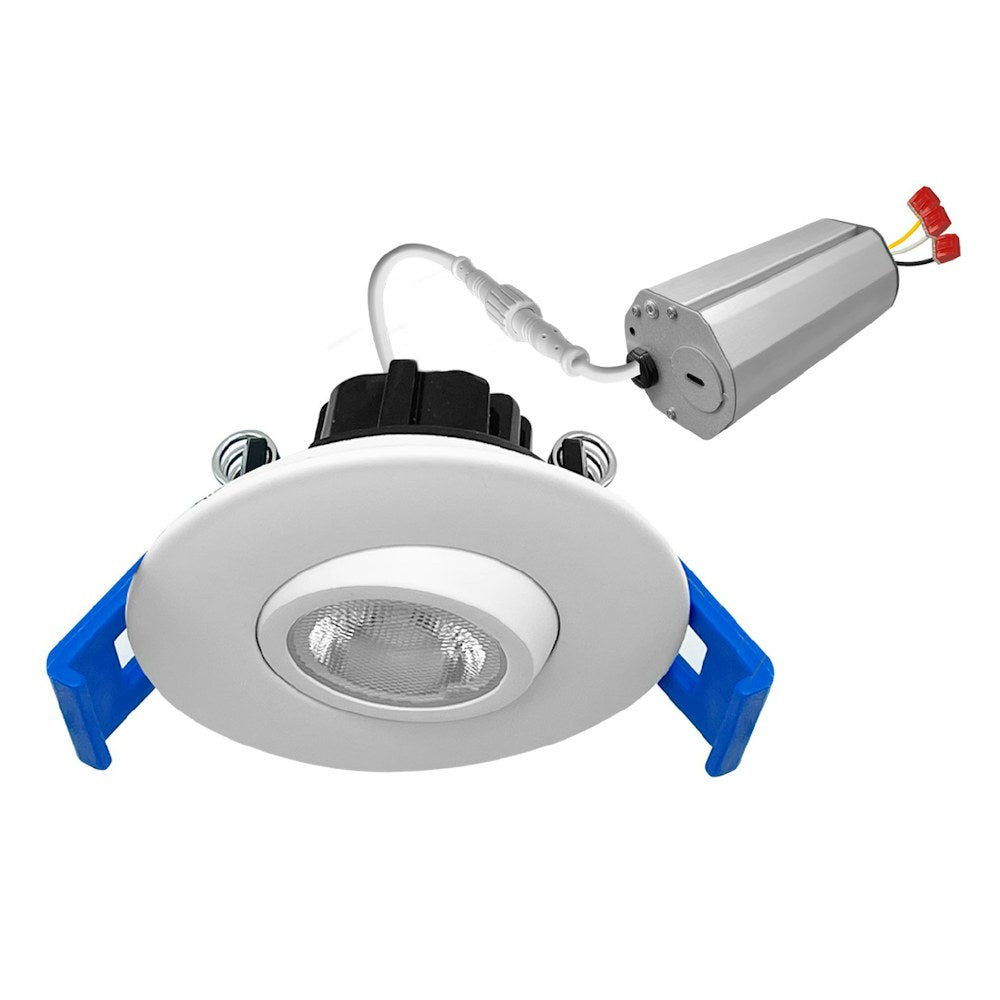

The EnVision SnapTrim-Line LED-DLJBX-ADJ-2-5W-5CCT-WH is a 2-inch canless gimbal LED downlight with a white finish. This 120V model uses 5 watts and produces 350 lumens.

Select from five color temperatures: 2700K, 3000K, 3500K, 4000K or 5000K. The gimbal rotates 360 degrees and tilts 18 degrees.

Key Features

• Selectable 2700K, 3000K, 3500K, 4000K and 5000K color temperatures
• 5W output of 350 lumens with CRI greater than 90
• 2-inch canless gimbal design with 360-degree rotation and 18-degree tilt
• 120V operation and Triac dimming
• IP54 wet-location rating and white finish

Light Output and Selectable Color Temperature

This EnVision downlight produces 350 lumens at 5 watts and operates on 120V. Its five selectable color temperatures are 2700K, 3000K, 3500K, 4000K and 5000K.

• CRI: greater than 90
• Standard beam angle: 38 degrees

Adjustable 2-Inch Gimbal Design

The SnapTrim-Line fixture has a 2-inch gimbal that rotates 360 degrees and tilts 18 degrees.

• White finish
• Clear, non-yellowing lens

Canless Mounting and Ceiling Cutout

This canless downlight uses spring clips and a remote junction box; it does not fit into a recessed can. For remodel applications, the manufacturer specifies tension-clip mounting in ceilings 1/2 to 1.5 inches thick. The fixture can be removed from below the ceiling for service or replacement.

• Ceiling cutout: 2 1/8 inches
• A new-construction plate is available as an optional accessory

Dimming, Voltage and Location Rating

The LED-DLJBX-ADJ-2-5W-5CCT-WH operates at 120V and is specified for Triac dimming. It is IP54 wet-location rated. The manufacturer lists tested Triac/ELV dimmers.

Listings and Warranty

The manufacturer identifies this model as ETL listed for the USA and Canada and CA Title 24 JA8-2022 CEC listed. It carries a 5-year limited warranty.

Before You Order

This canless fixture does not fit into a recessed can; check the ceiling cutout and mounting conditions for your installation.
