EnVision LED-DLJBX-ADJ-2-5W-40K – SnapTrim-Line

Product Overview

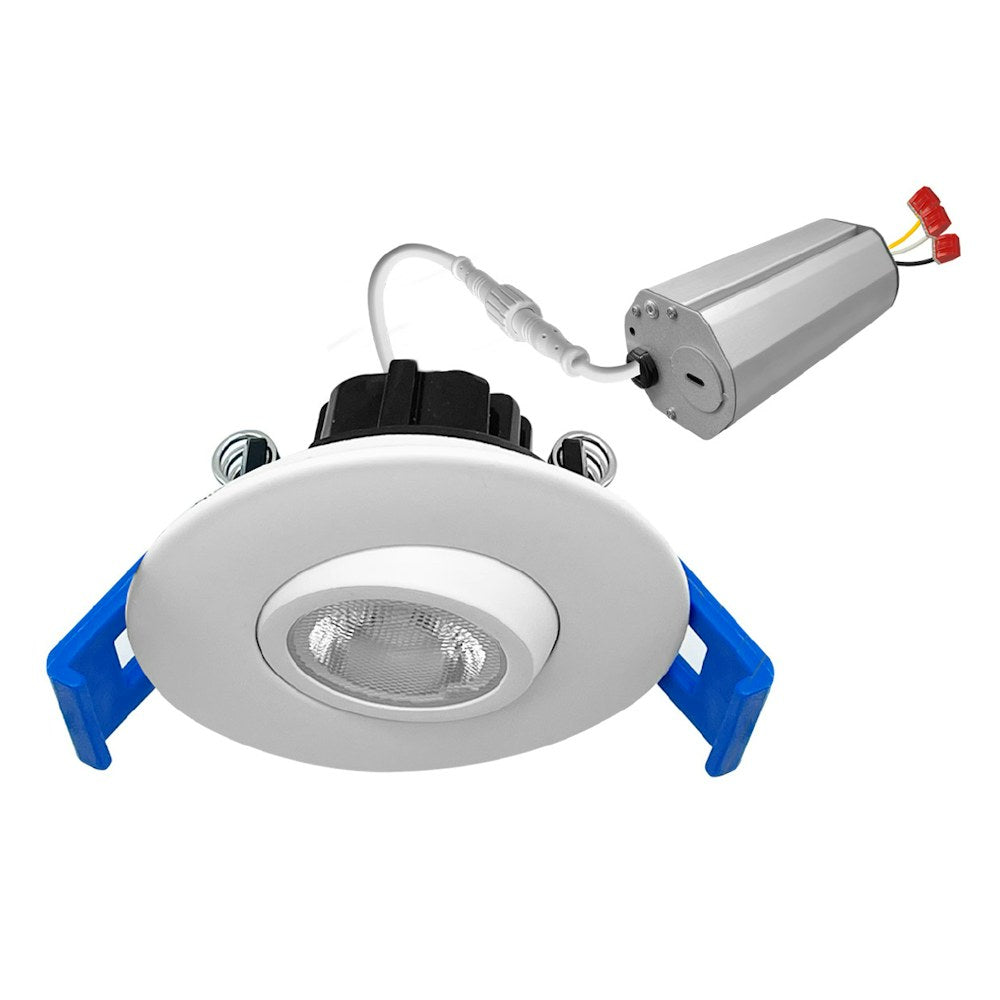

The EnVision LED-DLJBX-ADJ-2-5W-40K is a 2-inch SnapTrim-Line canless gimbal downlight with a white finish. It produces 350 lumens at 5W, with a 4000K color temperature, a 38° standard beam angle and CRI greater than 90.

This 120V fixture has Triac/ELV dimming and an IP54 wet-location rating. Its gimbal rotates 360° and tilts 18°.

Key Features

• 5W output with 350 lumens and 4000K color temperature
• 2-inch canless gimbal design with 360° rotation and 18° tilt
• 38° standard beam angle and CRI greater than 90
• 120V operation with Triac/ELV dimming
• IP54 wet-location rating and white finish
• ETL listed for the USA and Canada; CA Title 24 JA8-2022 compliant

Light Output and Color

This SKU delivers 350 lumens using 5W and produces a 4000K color temperature. Its CRI is greater than 90.

Gimbal Aiming and Beam

The SnapTrim-Line gimbal can rotate 360° and tilt 18° to direct light. Its standard beam angle is 38°.

Voltage and Dimming

The downlight operates at 120V and is specified for Triac/ELV dimming.

Canless Installation

This is a canless downlight with spring clips and a remote junction box; it does not fit into a recessed can. The specified ceiling cutout is 2 1/8 inches. For remodel applications, tension clips mount into ceilings 1/2 to 1.5 inches thick.

• A new-construction plate is available as an optional accessory.
• The fixture can be removed from below the ceiling for service or replacement.

Wet-Location Rating and Listings

The fixture is IP54 rated for wet locations. It is ETL listed for the USA and Canada and CA Title 24 JA8-2022 compliant. It has a five-year limited warranty.

Before You Order

This fixture does not fit into a recessed can. Optional construction plates and extension cables are ordered separately.
