EnVision LED-DLJBX-ADJ-2-5W-27K – SnapTrim-Line

Product Overview

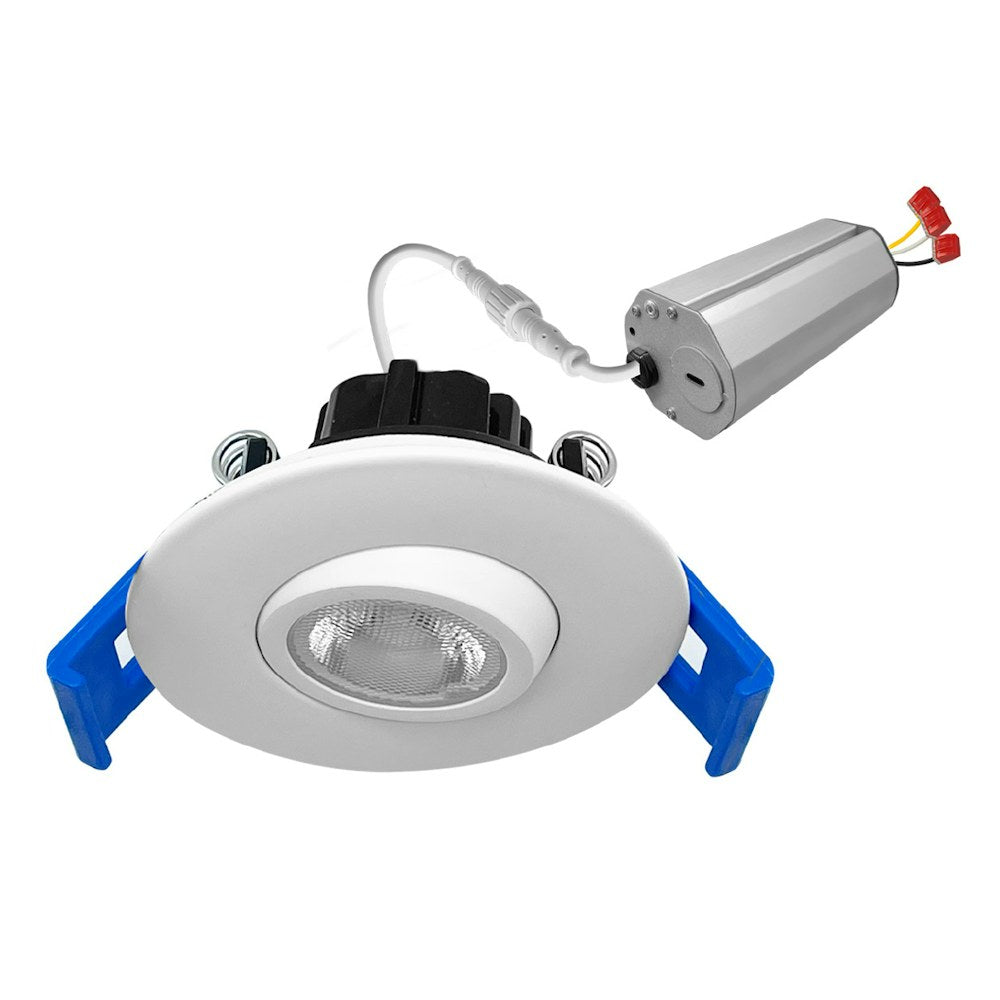

The EnVision LED-DLJBX-ADJ-2-5W-27K is a 2" SnapTrim-Line canless gimbal downlight intended for accent and display lighting. It delivers 5W and 350 lumens at 2700K with CRI greater than 90 and a 38° beam angle.

The fixture is 120V Triac/ELV dimmable, ETL listed for USA and Canada, CA Title 24 JA8-2022 listed, IP54 wet-location rated, and covered by a 5-year limited warranty.

Key Features

• Output: 5W; 350 lumens
• Color: 2700K with CRI >90 and R9 >50
• Optics: 38° beam; adjustable gimbal with 360° rotation and 18° tilt
• Electrical: 120V operation; Triac/ELV dimmable; built-in 2.5 kV surge protection; specified flicker-free
• Construction: canless SnapTrim design with spring tension clips and pre-wired junction box; white trim
• Ratings: IP54 wet-location rated; ETL Listed (USA/CA); CA Title 24 JA8-2022 listed; IC rated and ASTM-E283 air-tight
• Life & warranty: L70 50,000 hours (average life); 5-year limited warranty

What this fixture does

The LED-DLJBX-ADJ-2-5W-27K is a 2" canless gimbal downlight from EnVision's SnapTrim-Line. It is intended for accent lighting and small-display situations where directional aiming from a compact aperture is needed.

• Common uses: accent lighting, displays, cabinets, bars, residential and multifamily applications
• Adjustability: gimbal provides 360° rotation and 18° tilt for directional control

Light output and optical performance

This SKU produces 350 lumens at 5 watts with a warm 2700K color temperature. The fixture uses a COB light source with R9 >50, CRI greater than 90, and a standard 38° beam delivered through a clear, non-yellowing lens.

• Lumens/wattage: 350 lm at 5W
• Color quality: CRI >90, R9 >50; 3-step MacAdam ellipses
• Beam: 38° standard beam angle

Voltage, dimming and driver features

The luminaire is designed for 120V line operation and supports Triac/ELV dimming. The built-in driver includes a 2.5 kV surge protector and is specified as flicker free.

• Operating voltage: 120V
• Dimming compatibility: Triac/ELV dimmers (manufacturer provides a tested dimmer list)
• Driver features: built-in 2.5 kV surge protection; flicker-free performance

Mounting and installation overview

The SnapTrim canless design installs without a recessed can. Spring tension clips secure the fixture into ceiling thicknesses from 1/2" to 1.5". The unit includes a pre-wired junction box with three in/three out wiring knockouts for through-branch circuits.

• Cut-out dimension: 2 1/8"
• Total fixture length with adapter: 12"; removable from below the ceiling for service
• This fixture does not fit into a recessed can; optional new construction plates, extension cables, and an emergency backup accessory are available separately

Certifications, ratings and warranty

The product carries verified listings and environmental ratings appropriate for commercial and residential use and is covered by a manufacturer limited warranty.

• Listings: ETL Listed for USA and Canada; CA Title 24 JA8-2022 CEC listed
• Environmental ratings: IP54 wet-location rated; IC rated; air-tight per ASTM-E283
• Life & warranty: average life L70 50,000 hours; 5-year limited warranty

Before You Order

Confirm the exact model number and quantity before ordering; accessories and installation details vary with ceiling construction.

• This fixture is canless and does not fit into a recessed can—confirm ceiling thickness (1/2"–1.5") for spring-clip mounting.
• Optional accessories (ordered separately) include new construction plates, extension cables, and an emergency backup accessory.
• Verify dimmer compatibility for your installation; the manufacturer publishes a tested dimmer list.
