EnVision LED-DLJBX-6RG-24W-5CCT-WH-R – 6" Regressed Downlight 5CCT
Description
Product Overview

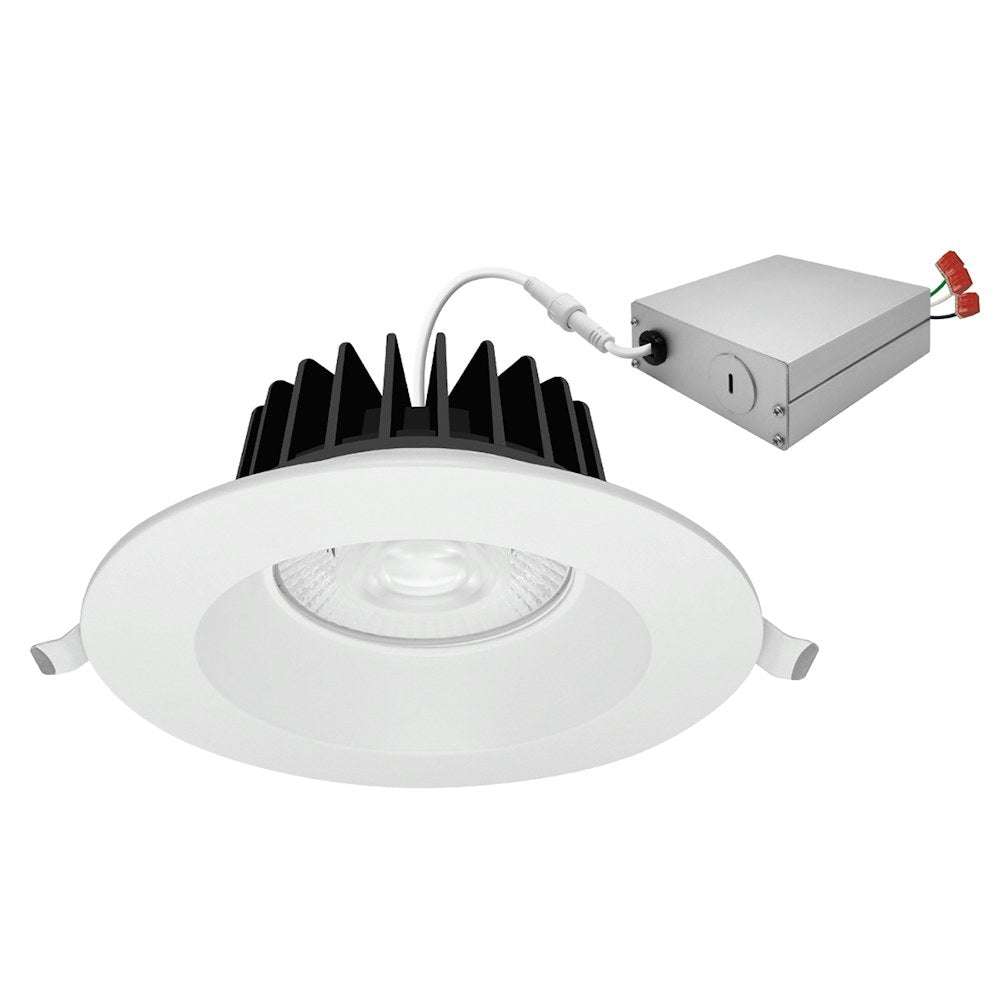

The EnVision LED-DLJBX-6RG-24W-5CCT-WH-R is a 6-inch regressed LED downlight with a white round trim. Its canless design uses spring clips and a remote junction box.
This 120V fixture is rated at 24W and 1,800 lumens. Its selectable color temperature settings are 2700K, 3000K, 3500K, 4000K and 5000K.
Key Features
- 38° beam angle and CRI greater than 90
- Wet-location rated; white round trim included
- 120V Triac dimmable; tested Triac/ELV dimmers are identified by the manufacturer
- ETL Listed for the USA and Canada, Energy Star Certified and CA Title 24 JA8-2022 CEC Listed
Light Output and Selectable Color
The LED-DLJBX-6RG-24W-5CCT-WH-R produces 1,800 lumens at 24W and has a 38° beam angle. A selectable switch provides five color temperature settings: 2700K, 3000K, 3500K, 4000K and 5000K. The fixture has a CRI greater than 90.
Canless Design and Installation Fit
This 6-inch regressed downlight uses spring clips and a remote junction box; it does not fit into a recessed can. The round ceiling cutout is 5-3/4 inches. For remodel applications, the tension clips mount in ceilings 1/2 to 1.5 inches thick. The fixture can be removed from below the ceiling for service or replacement.
- White round trim is included with this model.
- The junction box is pre-wired, with circuit wiring described as 3 in/3 out.
- A new-construction plate is optional.
Voltage and Dimming
The fixture operates at 120V and is Triac dimmable. The manufacturer identifies tested Triac and ELV dimmers; other dimmers may be compatible but are not identified as tested.
Ratings and Warranty
The downlight is wet-location rated and ETL Listed for the USA and Canada. It is Energy Star Certified and CA Title 24 JA8-2022 CEC Listed. The manufacturer specifies a 5-year limited warranty.
Before You Order
Check that the 5-3/4-inch round cutout suits the intended installation.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-6RG-24W-5CCT-WH-R – 6" Regressed Downlight 5CCT. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| Model / SKU | LED-DLJBX-6RG-24W-5CCT-WH-R |
| Product Type | 6-inch regressed canless LED downlight |
| Wattage | 24W |
| Lumens | 1,800 lumens |
| Selectable CCT | 2700K, 3000K, 3500K, 4000K, 5000K |
| Voltage | 120V |
| Dimming | Triac dimmable; tested Triac/ELV dimmers identified by manufacturer |
| CRI | >90 |
| Beam Angle | 38° |
| Trim | White round; included |
| Wet-location rating | Yes |
| Round cutout | 5-3/4 inches |
| Warranty | 5-year limited |
| UPC | 819715022234 |
