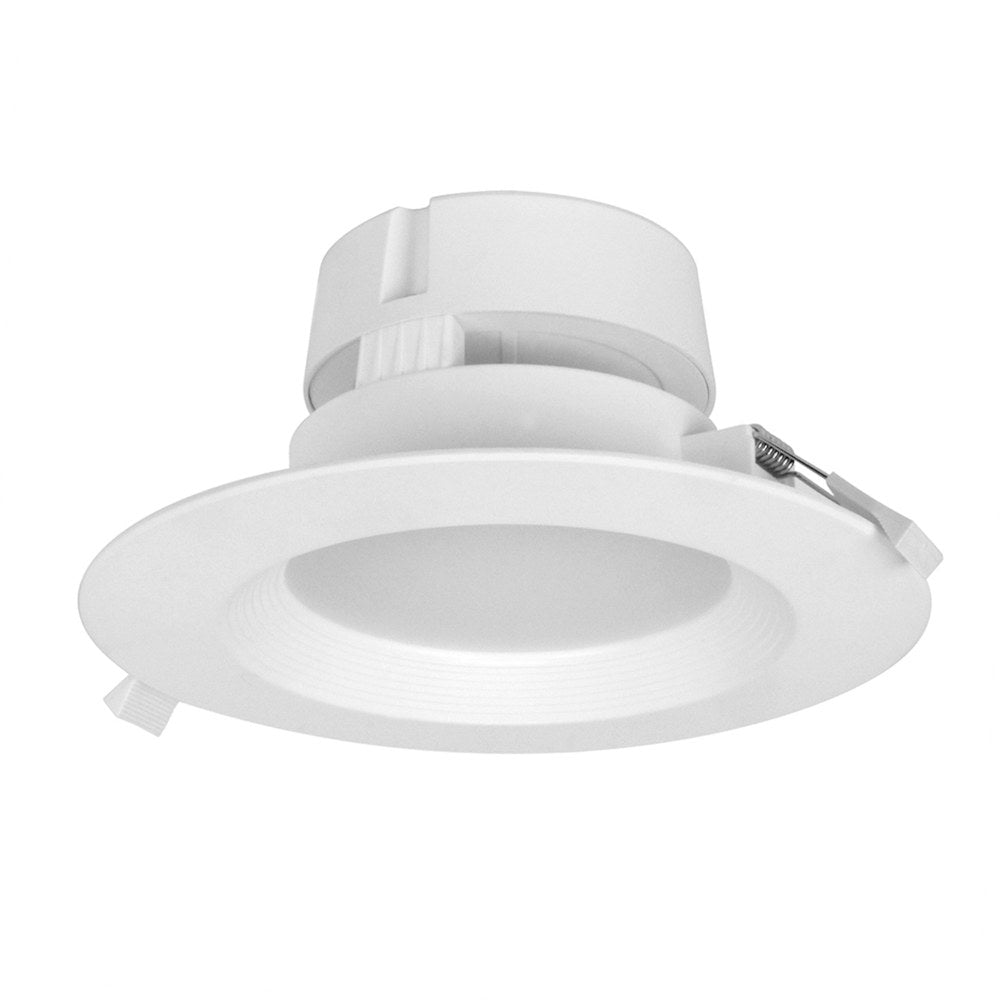

EnVision LED-DLJBX-6B-9W-27K – SnapTrim-Line

Product Overview

The EnVision SnapTrim LED-DLJBX-6B-9W-27K is a 6-inch recessed LED downlight rated for 9W and 120V, with a 2700K color temperature. Its integrated junction box eliminates the need for a recessed can.

The fixture has spring clips and is described for recessed downlighting in new construction or remodel projects. It is IC rated, airtight, suitable for wet locations, and dimmable with most dimmers down to 5%.

Key Features

• 6-inch downlight with integrated junction box and spring clips
• 9W, 120V, 2700K
• 700 lumens and 100° beam spread
• CRI greater than 90
• IC rated, airtight, and suitable for wet locations
• Dimmable with most dimmers down to 5%
• JA8 compliant; 5-year limited warranty

Light output and color

The LED-DLJBX-6B-9W-27K produces 2700K light with a CRI greater than 90. EnVision specifies 700 lumens and a 100° beam spread for this model.

• Power: 9W
• Color temperature: 2700K
• Luminous output: 700 lumens
• Beam spread: 100°

Canless construction and installation

This SnapTrim downlight has a built-in junction box, so a separate recessed can is not required. Spring clips hold the fixture flush to the ceiling. EnVision describes it for recessed downlighting in new construction or remodel projects.

• Integrated junction box for direct wiring
• Spring clips for flush installation
• Described as ready to replace existing 65W or 75W halogen lamps

Electrical and dimming details

The fixture is rated for 120V and is dimmable. EnVision states compatibility with most dimmers down to 5%.

Ratings and warranty

EnVision describes this downlight as IC rated and airtight, and suitable for wet locations. It is JA8 compliant and carries a 5-year limited warranty.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-6B-9W-27K – SnapTrim-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
