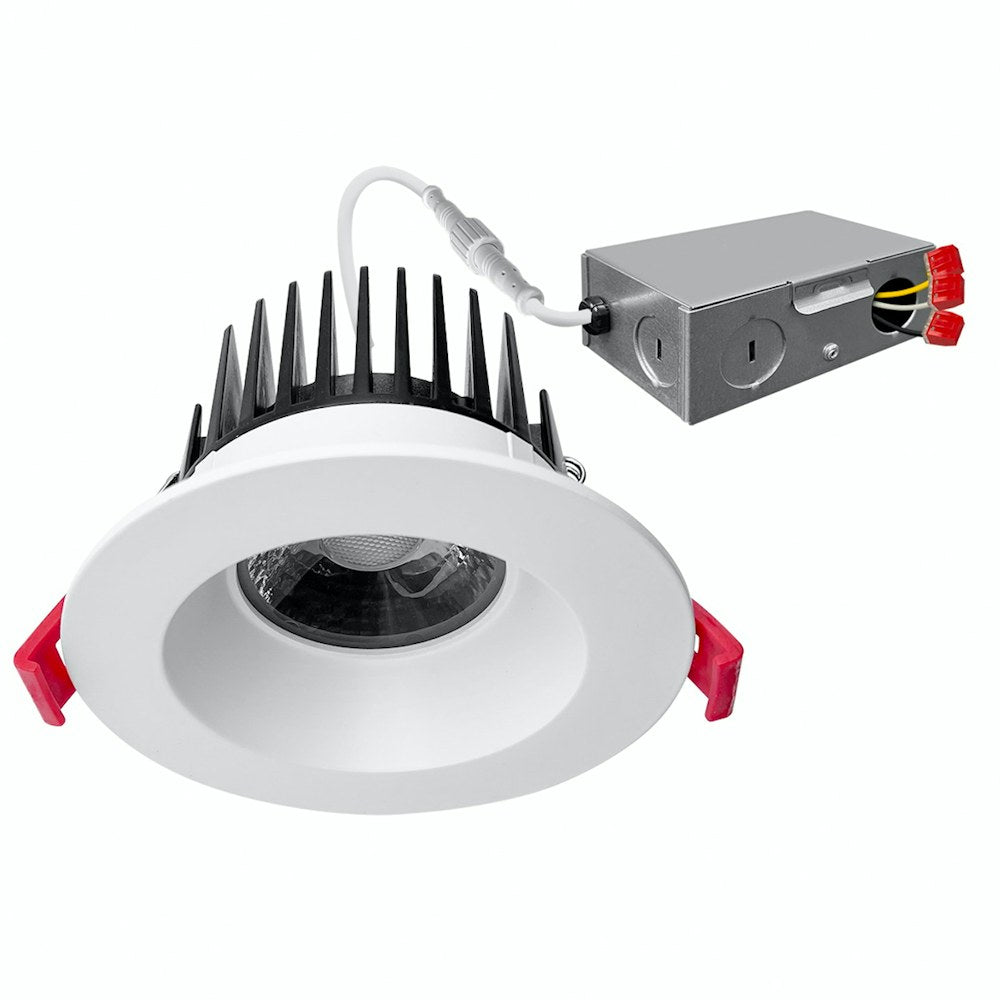

EnVision LED-DLJBX-4RG-18W-5CCT-WH-R – 4" Regressed Downlight 5CCT
Description
Product Overview
The EnVision LED-DLJBX-4RG-18W-5CCT-WH-R is a 4" regressed canless downlight that delivers 18W and 1,500 lumens with five selectable color temperatures (27/30/35/40/50K).
This SKU includes a standard white round trim, a frosted non-yellowing lens, CRI >90 with R9 >50, and is listed by ETL, ENERGY STAR certified, CA Title 24 JA8-2022 listed with a five-year limited warranty.
Key Features
- 18W • 1,500 lumens
- 5‑CCT selectable: 27K / 30K / 35K / 40K / 50K
- >90 CRI, R9 >50
- 38° beam angle (standard)
- 120V TRIAC/ELV driver configuration for this SKU (0–10V driver available on other SKUs)
- IP54 wet-location rated; IC rated and ASTM-E283 air-tight
- Canless SnapTrim design with spring clips and pre-wired junction box
- ETL Listed (USA & Canada), ENERGY STAR certified, CA Title 24 JA8-2022 CEC listed; 5-year limited warranty
What this fixture does
The LED-DLJBX-4RG-18W-5CCT-WH-R is a compact 4" regressed downlight designed for recessed, directional illumination where a canless installation is preferred. The regressed aperture helps reduce glare compared with flush trims.
- Typical applications documented by the manufacturer: general recessed lighting, residential & multifamily, office, education, healthcare, retail and hospitality
- Includes standard white round trim; metal housing is used for heat dissipation
Light output and optical performance
This model is rated at 1,500 lumens and 18W with a standard 38° beam and a frosted, non-yellowing lens. Color temperature is field‑selectable across five settings to match existing installations or tune space appearance.
- Selectable CCT: 27K / 30K / 35K / 40K / 50K
- CRI: >90 with R9 >50
- Standard beam: 38°; manufacturer lists 24° and 60° optics as available accessory options
Mounting and installation considerations
The SnapTrim canless design uses spring clips and a remote junction box so a recessed can is not required for remodel installations. The fixture is serviceable from below the ceiling.
- Cut-out dimension: 3-3/4"
- Fits ceiling thicknesses indicated for remodel installations (manufacturer lists 1/2" to 1.5")
- This fixture does not fit into a recessed can; optional new construction plates and rough-in plates are available from the manufacturer
Electrical and dimming compatibility
This SKU is configured for 120V operation with a TRIAC/ELV dimmable driver. The manufacturer documents other driver options in the family, including 0–10V 120–277V versions on different SKUs.
- Voltage: 120V for this model
- Dimming: TRIAC/ELV (manufacturer tested compatible dimmers are listed in technical documentation)
- Driver features documented by the manufacturer include a built-in 2.5kV surge protector and flicker-free operation
Certifications, rated life and warranty
The product carries multiple listings and is provided with a five-year limited warranty as documented by the manufacturer.
- Listings/certifications: ETL (USA & Canada), ENERGY STAR certified, CA Title 24 JA8-2022 CEC listed
- Average life (L70): 50,000 hours (manufacturer rating)
- Operating temperature range: -40°F to 114°F
- 5-year limited warranty
Before You Order
Confirm this exact SKU and the quantity needed; this listing is for the 120V, 18W, 1,500 lm 5‑CCT selectable version with white round trim.
- If you require 0–10V/120–277V drivers, warm-dim, alternate trims, emergency backup, or different optics, order the corresponding SKU or accessories from the manufacturer.
- Verify cutout (3-3/4") and ceiling thickness for remodel applications.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-4RG-18W-5CCT-WH-R – 4" Regressed Downlight 5CCT. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| SKU | LED-DLJBX-4RG-18W-5CCT-WH-R |
| Product type | 4" Regressed LED Downlight (canless) |
| Wattage | 18W |
| Lumens | 1,500 lm |
| Color temperature | Selectable 27K / 30K / 35K / 40K / 50K |
| CRI | >90 (R9 >50) |
| Beam angle | 38° standard |
| Voltage | 120V |
| Dimming | Triac/ELV (0–10V driver available on other SKUs) |
| IP / Environmental rating | IP54 wet-location rated; IC rated; air-tight (ASTM-E283) |
| Lens | Frosted, non-yellowing |
| Cutout | 3-3/4" |
| Finish | White (round trim included) |
| Average life (L70) | 50,000 hours |
| Operating temperature | -40° to 114° F |
| Certifications / Warranty | ETL, ENERGY STAR, CA Title 24 JA8-2022; 5-year limited warranty |
| UPC | 819715022616 |
| Box quantity | 18 |
