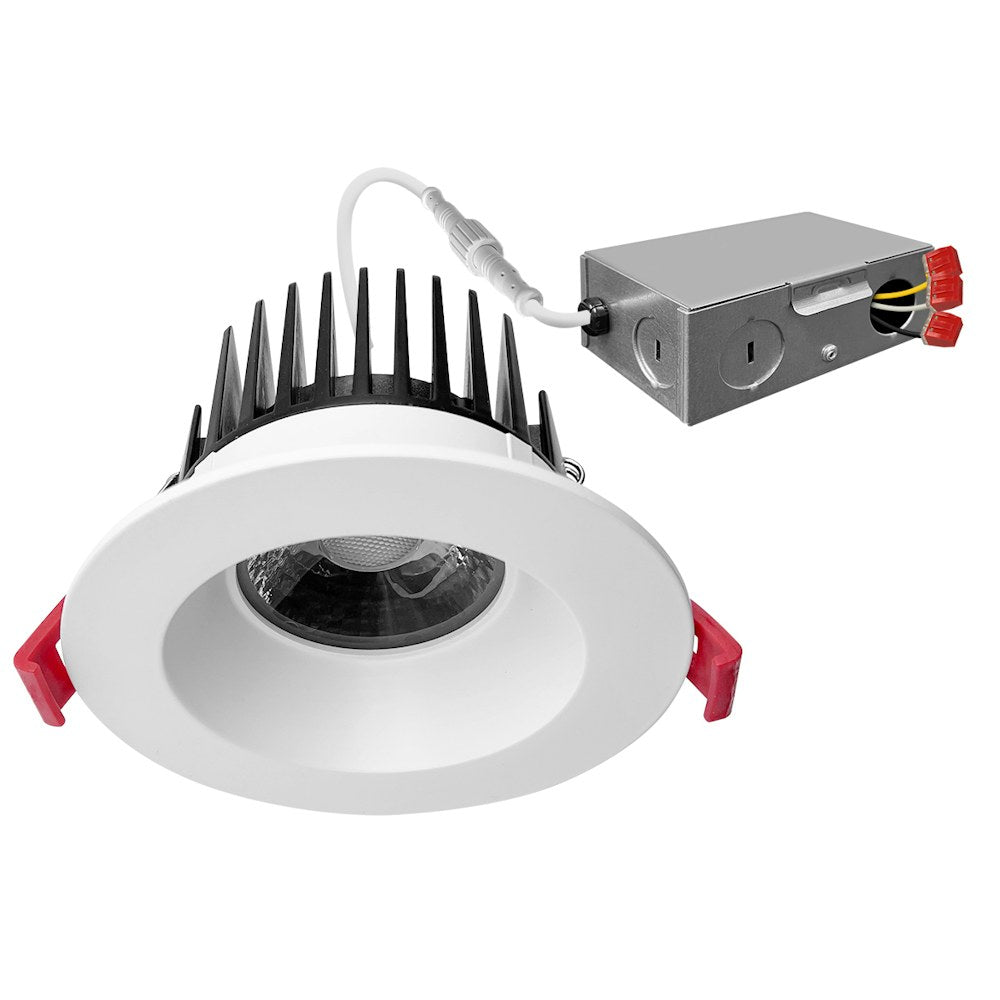

EnVision LED-DLJBX-4RG-15W-5CCT-WH-R – 4" Regressed Downlight 5CCT
Description
Product Overview
The EnVision LED-DLJBX-4RG-15W-5CCT-WH-R is a 4-inch, 15W regressed LED downlight with white round trim and five selectable color temperatures: 2700K, 3000K, 3500K, 4000K and 5000K.
This 120V canless fixture has a 38-degree beam angle, CRI greater than 90 and an IP54 wet-location rating. Its remote junction box and spring clips are used without a recessed can.
Key Features
- 15W LED downlight with five selectable color temperatures from 2700K to 5000K
- 120V operation with Triac dimming
- 4-inch regressed design with included white round trim
- 38-degree standard beam angle and CRI greater than 90
- IP54 wet-location rated
Selectable Color and Light Characteristics
The EnVision LED-DLJBX-4RG-15W-5CCT-WH-R offers five selectable color temperatures: 2700K, 3000K, 3500K, 4000K and 5000K. It has a standard 38-degree beam angle and a CRI greater than 90.
Voltage and Dimming
This model operates at 120V and supports Triac dimming.
Canless Mounting and Installation
The canless downlight uses spring clips and a remote junction box and does not fit into a recessed can. The specified cutout is 3-3/4 inches, and the fixture mounts in ceilings 1/2 to 1.5 inches thick. No housing is needed for remodel applications.
- The pre-wired junction box has three circuit wiring inlets and three outlets.
- The fixture can be removed from below the ceiling for service or replacement.
- A new-construction plate is available separately.
Wet-Location Rating and Certifications
The fixture is IP54 wet-location rated. It is ETL listed for the United States and Canada, Energy Star certified, and CA Title 24 JA8-2022 CEC listed. It is also IC rated and identified as air-tight to ASTM E283.
- 5-year limited warranty
Manufacturer-Listed Applications
Listed applications include general recessed lighting, residential and multifamily spaces, offices and meeting rooms, education, healthcare, retail and hospitality.
Before You Order
Confirm the selected model is the 120V, 5-CCT version.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-4RG-15W-5CCT-WH-R – 4" Regressed Downlight 5CCT. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| Model / SKU | LED-DLJBX-4RG-15W-5CCT-WH-R |
| Fixture type | Canless regressed LED downlight |
| Size | 4 inches |
| Wattage | 15W |
| Voltage | 120V |
| Selectable CCT | 2700K, 3000K, 3500K, 4000K, 5000K |
| Dimming | Triac |
| CRI | Greater than 90 |
| Beam Angle | 38 degrees standard |
| Trim | White round |
| Location Rating | IP54 wet-location rated |
| Cutout | 3-3/4 inches |
| Ceiling Thickness | 1/2 to 1.5 inches |
| Certifications | ETL listed for USA and Canada; Energy Star certified; CA Title 24 JA8-2022 CEC listed; IC rated |
| Warranty | 5-year limited warranty |
