EnVision LED-DLJBX-3RG-15W-5CCT-WH-R – 3" Regressed Downlight 5CCT
Description
Product Overview

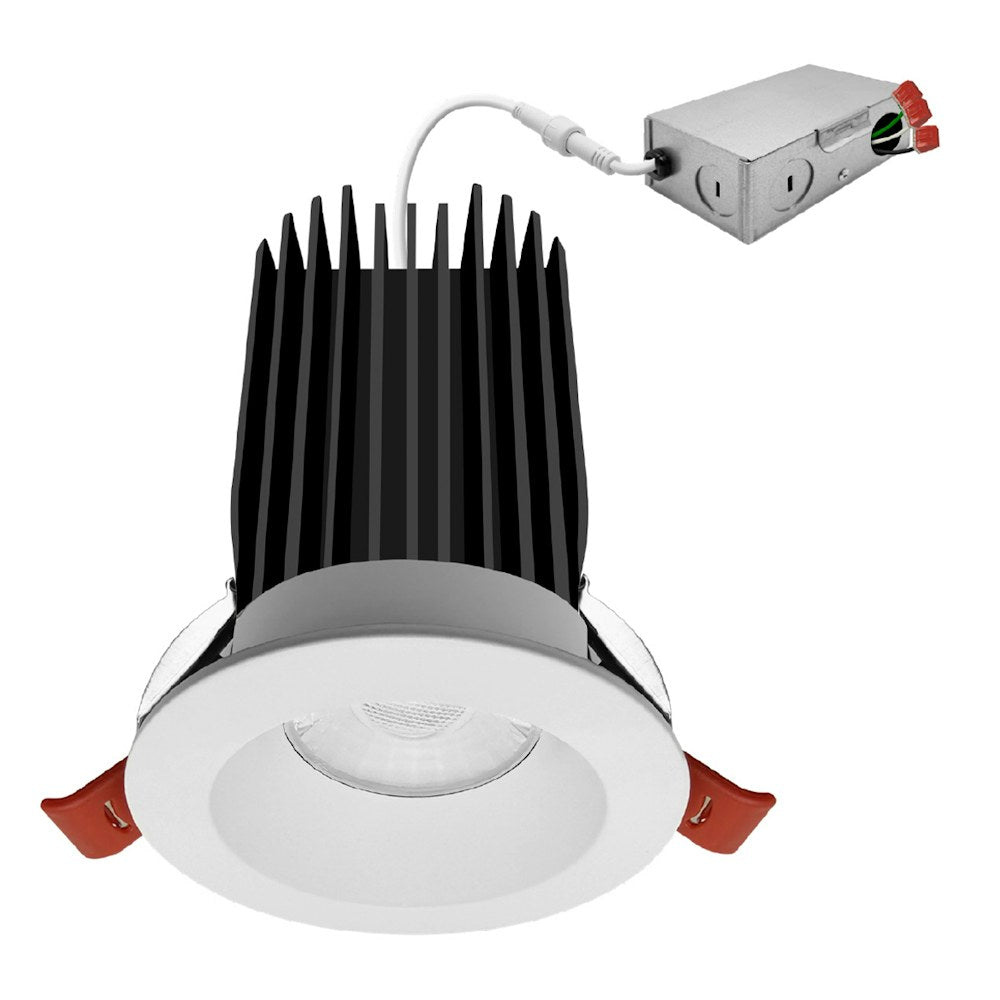

The EnVision LED-DLJBX-3RG-15W-5CCT-WH-R is a 3-inch regressed canless LED downlight with white round trim. It is rated at 15 watts and 1,000 lumens, with five selectable color temperatures from 2700K to 5000K.
This 120V fixture has a remote junction box, spring-clip mounting and a 38-degree beam angle. It is wet-location rated and intended for general recessed lighting in settings including residential, multifamily, office, education, healthcare, retail and hospitality.
Key Features
- 15W, 1,000 lumens and 120V operation
- Selectable 2700K, 3000K, 3500K, 4000K or 5000K color temperature
- 38-degree beam angle and CRI greater than 90
- White round trim, wet-location rating and Triac/ELV dimming
- ETL listed, Energy Star certified and CA Title 24 JA8-2022 compliant
Light Output and Selectable Color Temperature
This EnVision downlight produces 1,000 lumens at 15 watts. Its selectable CCT settings are 2700K, 3000K, 3500K, 4000K and 5000K, and its color rendering rating is greater than 90 CRI.
The fixture has a standard 38-degree beam angle and white round trim.
Electrical and Dimming Details
The downlight operates on 120V and is dimmable with Triac/ELV dimmers. The manufacturer provides a list of tested compatible dimmer models.
Canless Mounting and Ceiling Cutout
The SnapTrim canless fixture uses spring clips and a remote junction box; it does not fit into a recessed can. The specified round cutout is 3 1/4 inches. For remodel applications, the tension clips mount in ceilings 1/2 to 1.5 inches thick.
- A pre-wired junction box is included.
- The fixture can be removed from below the ceiling for service or replacement.
Location Rating and Certifications
This downlight is wet-location rated. It is ETL listed for the USA and Canada, Energy Star certified, and CA Title 24 JA8-2022 compliant. It is also IC rated and ASTM-E283 air-tight.
- 5-year limited warranty
Before You Order
This canless fixture does not fit into a recessed can.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-3RG-15W-5CCT-WH-R – 3" Regressed Downlight 5CCT. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| Model / SKU | LED-DLJBX-3RG-15W-5CCT-WH-R |
| Fixture type | 3-inch regressed canless LED downlight |
| Wattage | 15W |
| Lumens | 1,000 lumens |
| Color Temperature | Selectable: 2700K / 3000K / 3500K / 4000K / 5000K |
| Voltage | 120V |
| Dimming | Triac/ELV |
| CRI | >90 |
| Beam Angle | 38° |
| Trim | White round |
| Cutout | 3 1/4 inches, round |
| Location Rating | Wet location |
| Certifications and ratings | ETL listed for USA and Canada; Energy Star certified; CA Title 24 JA8-2022 compliant; IC rated; ASTM-E283 air-tight |
| Warranty | 5-year limited |
| UPC | 810143710458 |
