EnVision LED-DLJBX-2-6W-3WD-W/W-S – SnapTrim-Line

(No Ratings)
SKU: LED-DLJBX-2-6W-3WD-W/W-S
Price: $39.20
Free shipping on orders over $1,500

Description

Product Overview

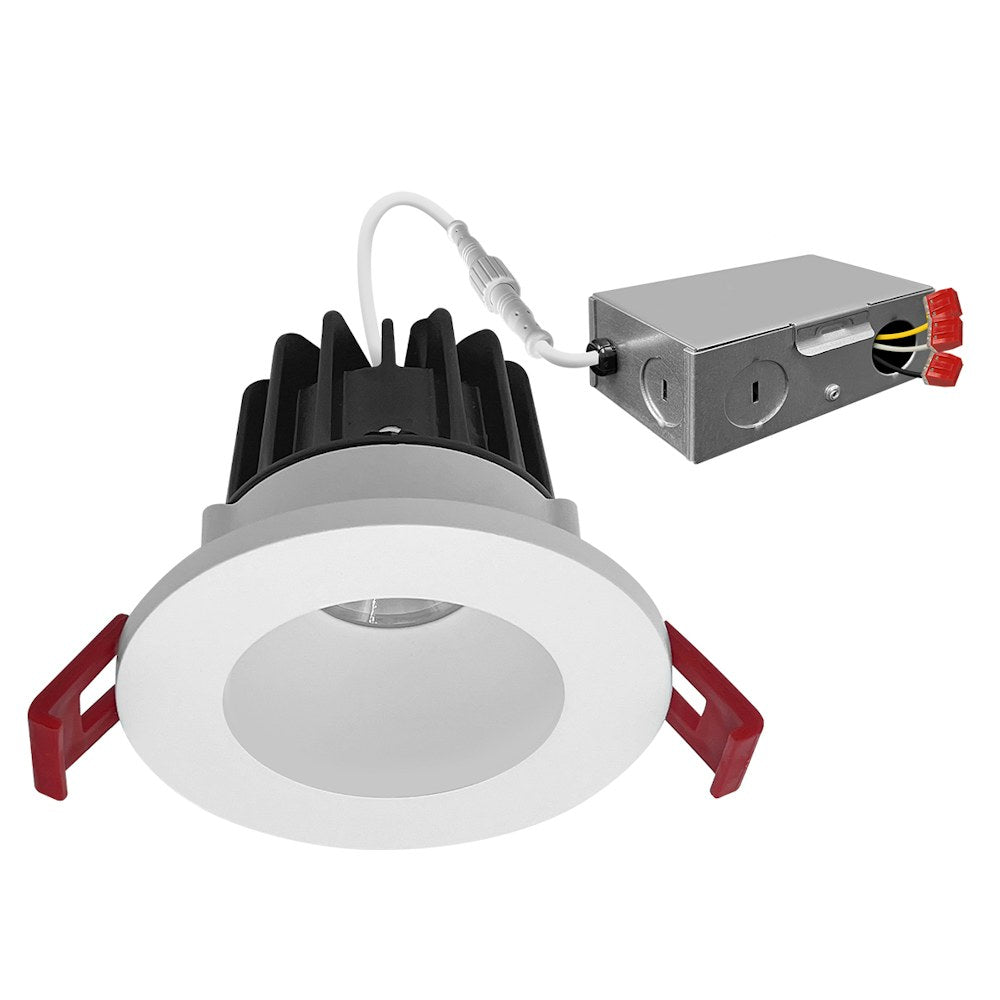

The EnVision SnapTrim-Line LED-DLJBX-2-6W-3WD-W/W-S is a 2-inch canless LED downlight rated at 6W and 450 lumens. It has a warm-dimming range from 3000K to 1800K and operates on 120V with Triac/ELV dimming.

This model has a white finish and a 38° beam angle. Spring clips and a remote junction box support canless mounting; the fixture does not fit into a recessed can.

Key Features

  • 2-inch downlight with 6W power and 450-lumen output
  • Warm-dimming range from 3000K to 1800K
  • 120V operation with Triac/ELV dimming
  • 38° beam angle, white finish and CRI greater than 90
  • IP54 wet-location rated

Light Output and Warm Dimming

The LED-DLJBX-2-6W-3WD-W/W-S produces 450 lumens at 6W and has a 38° standard beam angle. Its warm-dimming range is 3000K to 1800K, and its color rendering rating is CRI greater than 90.

Voltage and Dimming

This downlight operates at 120V with Triac/ELV dimming. The manufacturer provides a list of tested compatible dimmers.

Canless Mounting and Installation

The SnapTrim-Line uses spring clips and a remote junction box for canless mounting; it does not fit into a recessed can. For remodel applications, the specified cutout is 2-3/4 inches and the tension clips mount in ceilings 1/2 to 1.5 inches thick. The fixture can be removed from below the ceiling for service or replacement.

  • A new-construction plate is available as an optional accessory.

Ratings and Certifications

The fixture is IP54 wet-location rated and IC rated. It is ETL listed for the USA and Canada, California Title 24 JA8-2022 CEC listed, and identified as ASTM-E283 air-tight. It has a 5-year limited warranty.

Before You Order

Confirm the model number and that the canless mounting configuration suits your installation.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-2-6W-3WD-W/W-S – SnapTrim-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
SeriesSnapTrim-Line
Model / SKULED-DLJBX-2-6W-3WD-W/W-S
Fixture typeCanless LED recessed downlight
Size2 inches
Wattage6W
Lumens450 lumens
Color TemperatureWarm dimming, 3000K to 1800K
Voltage120V
DimmingTriac/ELV
CRI>90
Beam Angle38°
FinishWhite
IP / Environmental RatingIP54 wet-location rated
Cutout2-3/4 inches
Mounting TypeSpring clips with remote junction box; canless
Certifications and ratingsETL listed for USA and Canada; California Title 24 JA8-2022 CEC listed; IC rated; ASTM-E283 air-tight
Warranty5-year limited
Box Quantity18
UPC819715028458
