EnVision LED-DLJBX-2-15W-5CCT-W/W-S – SnapTrim-Line

Product Overview

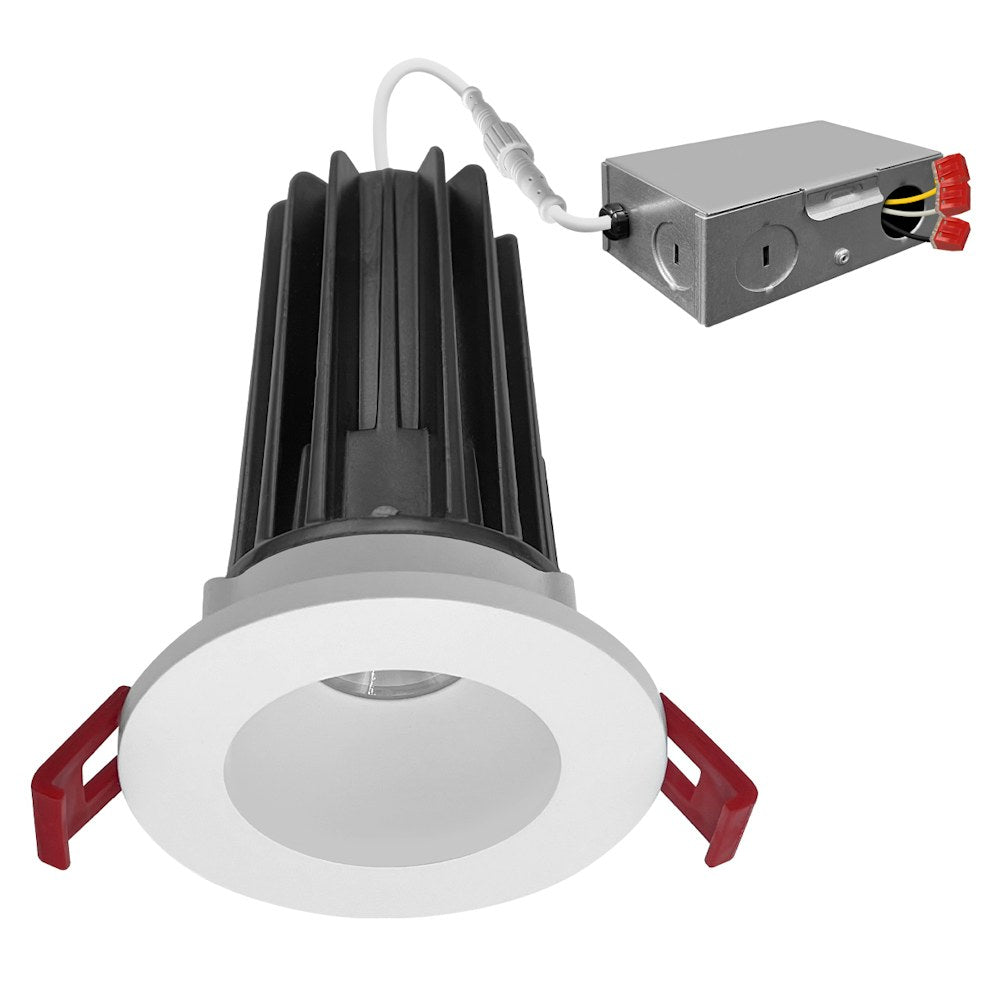

The EnVision LED-DLJBX-2-15W-5CCT-W/W-S is a 2" canless SnapTrim-Line recessed downlight that produces 15W and 1,000 lumens with five selectable CCT options.

The fixture is a canless design that mounts with spring clips, includes a pre-wired junction box, and ships with a white round trim.

Key Features

• 15W, 1,000 lumens
• 5‑CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• CRI >90 with R9 >50 (COB chip)
• Standard 38° beam angle; field-installable 24° and 60° optics available
• 120V Triac/ELV dimmable; built-in 2.5 kV surge protector; flicker-free
• IP54 wet-location rated
• ETL listed (US & CA), Title 24 JA8-2022 listed, 5‑year limited warranty
• Canless SnapTrim design with pre-wired junction box and spring-clip mounting; cut-out 2-3/4"

What this fixture does

The LED-DLJBX-2-15W-5CCT-W/W-S is a 2" canless recessed downlight intended for general recessed lighting in residential, multifamily and commercial interiors. It is designed to be installed without a traditional recessed housing.

• Canless SnapTrim design mounts with spring clips into 1/2" to 1.5" ceilings.
• Includes a pre-wired junction box with three in / three out wiring connections.
• Fixture is serviceable from below the ceiling for maintenance or replacement.

Light output and color

This model produces 1,000 lumens at 15W and offers five selectable CCT settings to match application needs or maintain color consistency across a project.

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K.
• CRI >90 with R9 >50 using a COB light engine.
• Standard beam angle: 38°. Field-installable 24° and 60° optics are available as accessories.

Voltage, dimming and driver features

The fixture is configured for 120V operation and is compatible with forward-phase (Triac/ELV) dimming. The built-in driver includes surge protection and is specified as flicker-free.

• 120V Triac/ELV dimming standard.
• Built-in 2.5 kV surge protector.
• Manufacturer provides a list of tested compatible dimmers.

Mounting, cut-out and installation notes

As a canless product, this SnapTrim-Line downlight installs without a recessed can. It is suitable for remodel applications and can be used with optional new-construction plates for new builds.

• Cut-out dimension: 2-3/4".
• Mounts with spring clips into ceilings 1/2" to 1.5" thick.
• Does not fit into a recessed can; optional new-construction plates and rough-in plates are available.
• Can be removed from below the ceiling for service.

Listings and warranty

This EnVision downlight carries applicable safety and energy listings and includes a manufacturer warranty.

• ETL listed for USA and Canada.
• California Title 24 JA8-2022 listed.
• IP54 wet-location rated.
• 5‑year limited warranty; tested average life L70 of 50,000 hours.

Size, trim options and accessories

The LED-DLJBX-2-15W-5CCT-W/W-S ships with a standard white round trim. A range of optional trims, optics, extension cables and emergency backup units are documented as compatible accessories.

• Approximate fixture diameter 3.15" with a 2" visible aperture.
• Optional trims: white, black, bronze, brushed nickel, chrome; square trims available (order separately).
• Optional accessories: 24° and 60° field-installable optics, extension cables (6', 10', 12'), emergency backup modules, and new-construction plates.

Before You Order

Confirm the exact model, trim selection and quantity before ordering and verify ceiling thickness for spring-clip mounting.

• This is a canless fixture and does not fit into a recessed can—use the specified cut-out and mounting method.
• Optional voltages, dimming types, trims, optics or emergency backup modules are sold as separate SKUs or accessories.
