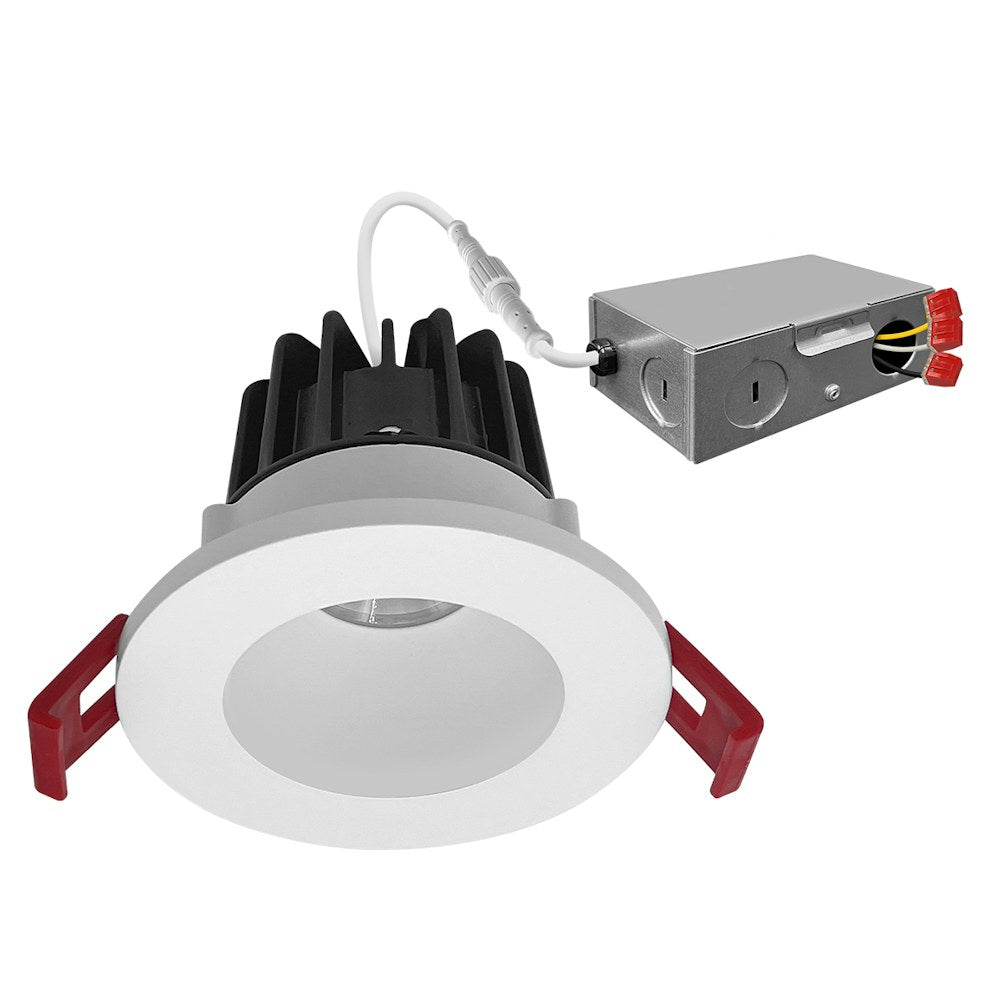

EnVision LED-DLJBX-2-12W-3WD-W/W-S – SnapTrim-Line
Description
Product Overview
The EnVision LED-DLJBX-2-12W-3WD-W/W-S is a 2" canless SnapTrim-Line recessed downlight that provides compact general and accent lighting.
This model delivers 12W and 850 lumens with warm-dimming from 3000K to 1800K, CRI greater than 90, a 38° standard beam angle, 120V Triac/ELV dimmable operation, ETL listing, JA8 (Title 24) listing, IP54 wet-location rating, and a 5-year limited warranty.
Key Features
- 12W nominal power with 850 lumens output
- Warm-dimming 3000K → 1800K (3WD); CRI >90 with R9 >50
- 38° standard beam; field-installable 24° and 60° optics available
- Canless SnapTrim design with spring clips and pre-wired junction box (cutout 2-3/4")
- 120V Triac/ELV dimmable driver with built-in 2.5 kV surge protector; specified as flicker-free
- IP54 wet-location rated; ETL listed for USA/Canada; JA8 (Title 24) listed; 5-year limited warranty
What this fixture does
The LED-DLJBX-2-12W-3WD-W/W-S is a 2" canless recessed downlight in EnVision’s SnapTrim-Line intended for compact general and accent lighting. The canless design uses spring clips and a pre-wired junction box so it installs into 1/2" to 1.5" ceilings without a separate housing and can be removed from below the ceiling for service.
- Typical applications listed by the manufacturer include general recessed lighting, residential and multifamily, offices, education, healthcare, retail, and hospitality.
- Standard white round trim is included; multiple optional trims and finishes are available from the manufacturer (ordered separately).
Light output and color
This SKU produces 850 lumens from a 12W LED source and features warm-dimming optics that transition from 3000K to 1800K (3WD). The LED engine is specified with CRI greater than 90 and R9 over 50.
- Output: 850 lm
- Color: warm-dimming 3000K → 1800K (3WD)
- CRI: >90; R9 >50
- Beam: 38° standard; 24° and 60° field-installable optics are listed as options
Electrical and dimming
The fixture is intended for 120V line-voltage operation and is supplied with a triac/ELV dimmable driver. The driver includes a 2.5 kV surge protector and is specified as flicker-free.
- Voltage: 120V
- Dimming: Triac/ELV compatible (manufacturer provides a tested dimmer list)
- Surge protection: built-in 2.5 kV
- Flicker-free (as specified by manufacturer)
Mounting, dimensions and serviceability
SnapTrim canless construction eliminates the need for a recessed can. Tension spring clips secure the fixture into the ceiling cutout and the pre-wired junction box includes circuit wiring. The manufacturer notes the fixture does not fit into a recessed can and can be removed from below for service.
- Cutout dimension: 2-3/4"
- Fits ceilings 1/2" to 1.5" thick for remodel installations
- Does not fit into a standard recessed can; new-construction plates and extension cables are available as accessories
- Operating temperature range: -40° to 114° F (manufacturer specification)
Certifications, ratings and warranty
According to the manufacturer, the product is ETL listed for the U.S. and Canada, JA8 (Title 24) CEC listed, and IP54 wet-location rated. The manufacturer specifies an average life (L70) of 50,000 hours and provides a 5-year limited warranty.
- Listings: ETL (USA/CA), JA8 (Title 24) CEC
- Environmental rating: IP54 (wet location)
- Life: L70 at 50,000 hours (manufacturer spec)
- Warranty: 5-year limited warranty
Before You Order
Verify cutout size and ceiling thickness for canless installation and confirm required trim/finish options and quantities.
- This is a canless fixture and does not fit into standard recessed cans — ensure ceiling thickness and cutout (2-3/4") are compatible.
- Optional trims, optics (24°/60°), new-construction plates, extension cables and emergency backup accessories are available separately per manufacturer documentation.
- Confirm dimmer compatibility with the specific control system; the manufacturer provides a tested dimmer list.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-2-12W-3WD-W/W-S – SnapTrim-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| SKU | LED-DLJBX-2-12W-3WD-W/W-S |
| Type | 2" Canless Recessed Downlight (SnapTrim-Line) |
| Wattage | 12W |
| Lumens | 850 lm |
| Color Temperature | Warm-dimming 3000K → 1800K (3WD) |
| CRI | >90 (R9 >50) |
| Beam Angle | 38° standard (24° and 60° optics optional) |
| Voltage | 120V |
| Dimming | Triac/ELV |
| IP Rating | IP54 (Wet Location) |
| Cutout | 2-3/4" |
| Size | 2" |
| Finish | White (standard trim) |
| Average life (L70) | 50,000 hours |
| Certifications | ETL listed (USA/CA), JA8 Title 24 CEC |
| Warranty | 5-year limited warranty |
| UPC | 819715028465 |
