EnVision LED-DLJBX-1RG-7W-5CCT-WH-R – SnapTrim-Line
Description
Product Overview

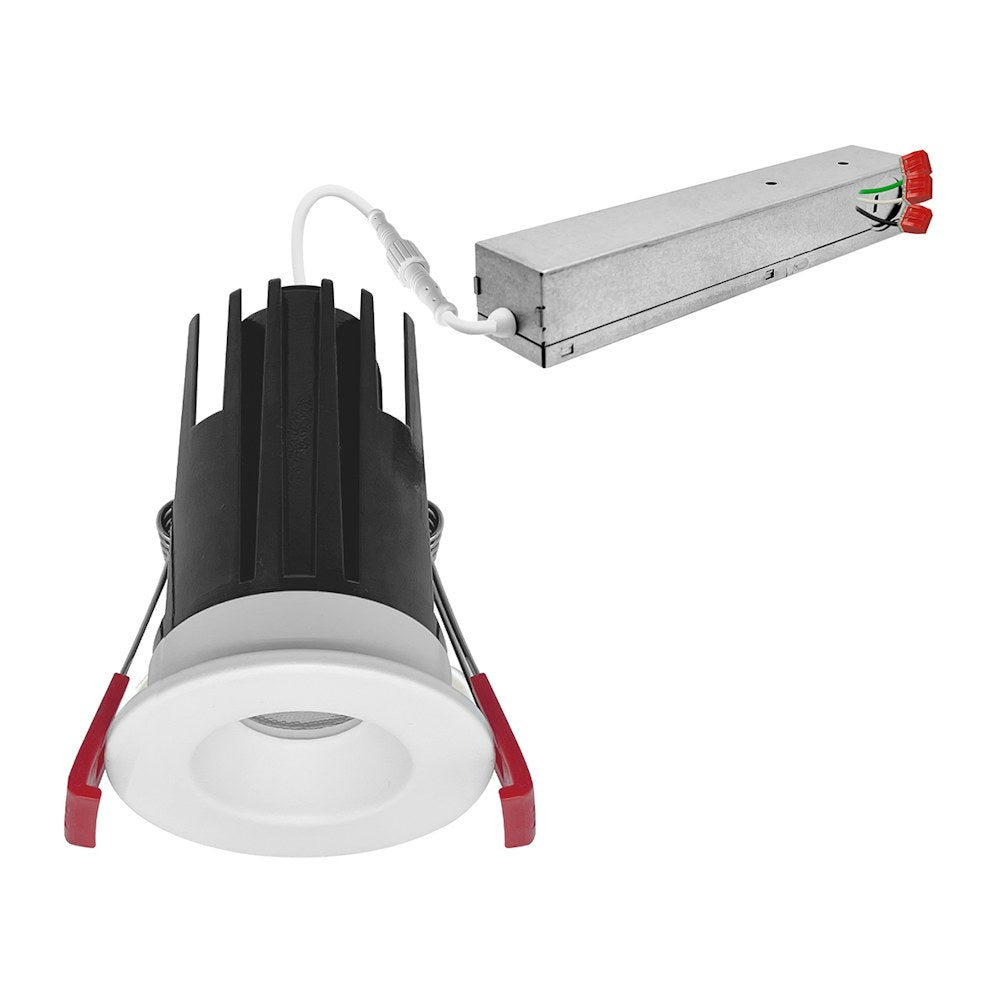

The EnVision SnapTrim-Line LED-DLJBX-1RG-7W-5CCT-WH-R is a 1-inch canless LED recessed downlight with white round trim. It delivers 550 lumens at 7 watts and offers five selectable color temperatures from 2700K to 5000K.
Specified for recessed lighting in residential and multifamily spaces, offices, education, healthcare, retail and hospitality, this model uses spring clips and a remote junction box rather than a recessed can.
Key Features
- 7W output, 550 lumens and a 38-degree standard beam angle
- Selectable 2700K, 3000K, 3500K, 4000K or 5000K color temperature; CRI greater than 90
- 120V operation with Triac dimming; the manufacturer lists tested compatible TRIAC/ELV dimmers
- IP54 wet-location rating and included white round trim
- ETL listed for the USA and Canada, Energy Star certified, and CA Title 24 JA8-2022 CEC listed
Light Output and Selectable Color Temperature
This SnapTrim-Line downlight produces 550 lumens using 7 watts and has a standard 38-degree beam angle. Its selector offers five color temperature settings: 2700K, 3000K, 3500K, 4000K and 5000K. The fixture is specified at greater than 90 CRI.
Canless Mounting and Ceiling Fit
The LED-DLJBX-1RG-7W-5CCT-WH-R mounts with spring clips and a remote junction box, so it does not use a recessed can. The manufacturer specifies a 2-1/8-inch cutout and says the tension clips mount in ceilings 1/2 to 1.5 inches thick. The fixture can be removed from below the ceiling for service or replacement.
- A standard white round trim is included.
- The fixture does not fit into a recessed can.
- A new-construction plate is available as an optional accessory.
Voltage and Dimming
This model operates on 120V. The manufacturer identifies Triac dimming and provides a list of tested compatible TRIAC/ELV dimmers; other dimmers may be compatible but are not listed as tested.
Wet-Location Rating and Listings
The downlight is IP54 wet-location rated. The manufacturer lists it as ETL listed for the USA and Canada, Energy Star certified, and CA Title 24 JA8-2022 CEC listed. A five-year limited warranty is stated.
Before You Order
Verify that the ceiling cutout and thickness match this fixture's installation requirements.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DLJBX-1RG-7W-5CCT-WH-R – SnapTrim-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| Series | SnapTrim-Line |
| Model / SKU | LED-DLJBX-1RG-7W-5CCT-WH-R |
| Product Type | Canless LED recessed downlight |
| Wattage | 7W |
| Lumens | 550 lumens |
| Selectable CCT | 2700K, 3000K, 3500K, 4000K, 5000K |
| CRI | >90 |
| Beam Angle | 38° standard |
| Voltage | 120V |
| Dimming | Triac; manufacturer lists tested TRIAC/ELV dimmers |
| Location Rating | IP54 wet-location rated |
| Trim | White round; included |
| Fixture size | 1 inch |
| Cutout | 2-1/8 inches |
| Ceiling Thickness | 1/2 to 1.5 inches |
| Listings | ETL listed for USA and Canada; Energy Star certified; CA Title 24 JA8-2022 CEC listed |
| Warranty | 5-year limited warranty |
| UPC | 819715029240 |
