EnVision LED-DL-SQ-EX-6-3P18-5CCT-WH-SM – SQ-Line
Description
Product Overview

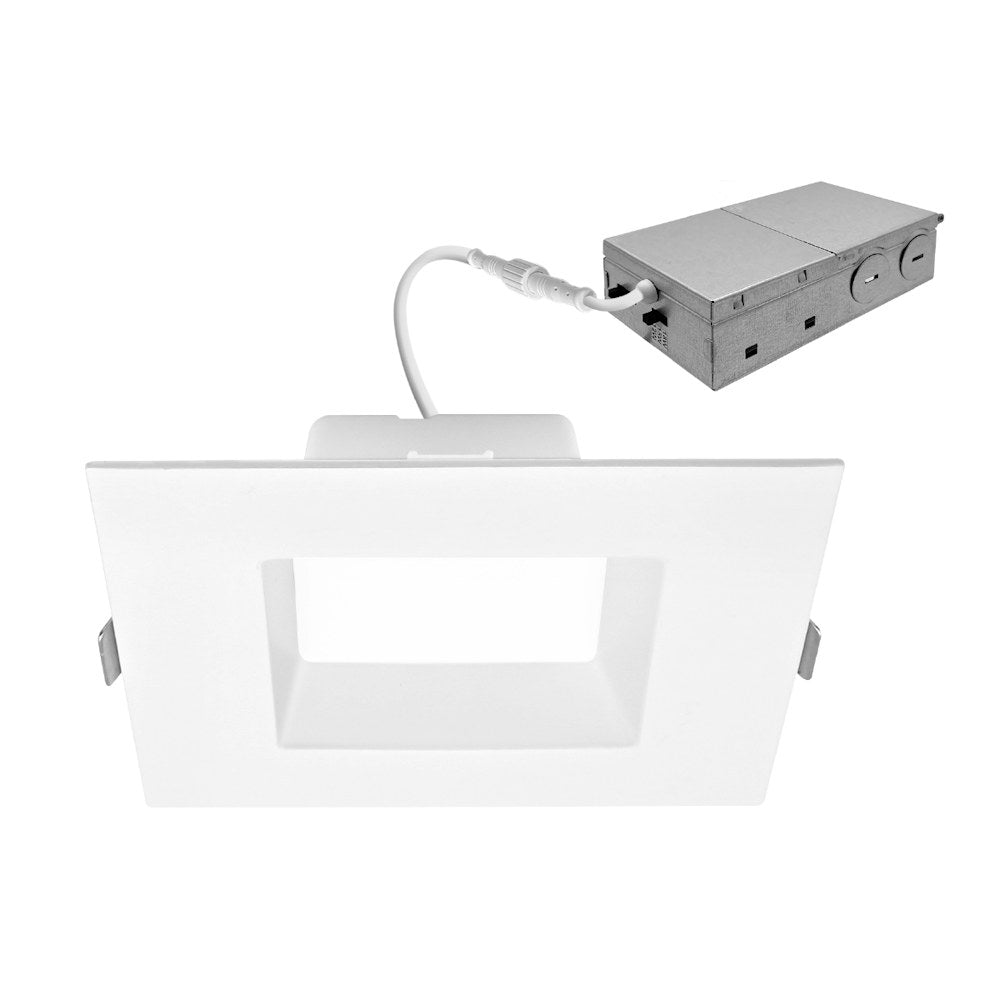

The EnVision LED-DL-SQ-EX-6-3P18-5CCT-WH-SM is a 6" square retrofit (canless) downlight with Select-n-Switch technology offering three power settings and five selectable color temperatures for flexible specification.
It provides up to 1,500 lumens at the highest setting, CRI greater than 90, is wet-location rated, and carries ETL, ENERGY STAR and California Title 24 JA8 listings with a 5‑year limited warranty.
Key Features
- Selectable output: 18W / 15W / 12W — 1,500 / 1,100 / 700 lumens
- Selectable color temperatures: 2700K / 3000K / 3500K / 4000K / 5000K
- High color quality: CRI > 90 with R9 > 50
- 120V input, Triac/ELV dimmable and flicker free
- Wet-location rated with frosted, non‑yellowing polycarbonate lens and 100° beam
- Metal housing and trim; SnapTrim canless mounting with remote junction box option
- Certifications: ETL, ENERGY STAR, JA8 (Title 24); 5‑year limited warranty
What this fixture does
The LED-DL-SQ-EX-6-3P18-5CCT-WH-SM is a 6" square canless retrofit downlight intended for general recessed lighting in residential, multifamily and commercial interiors. It uses Select-n-Switch technology to select among three wattage levels and five color temperatures on the fixture.
- Designed for remodel (canless) installations; SnapTrim spring clips secure into 1/2"–1.5" ceilings
- Remote junction box can be mounted up to 12' from the fixture
- Metal housing and trim for heat dissipation and serviceability
Light output and color options
Output and color temperature are selectable on the fixture to match application needs without ordering different SKUs.
- Wattage settings: 18W / 15W / 12W
- Lumen outputs: 1,500 lm / 1,100 lm / 700 lm
- Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
- 100° beam angle with frosted polycarbonate lens
- Color quality: CRI > 90, R9 > 50
Voltage, dimming and driver features
The fixture operates on 120V and includes driver features intended for common line-voltage dimming and reliable on-site performance.
- 120V input
- Triac dimmable / ELV compatible (manufacturer notes dimming down to 5%)
- Flicker-free output and built-in 2.5 kV surge protector
- Manufacturer lists tested compatible dimmers from Lutron and Leviton
Mounting, cutout and installation notes
This model is a canless square retrofit designed for installation in existing ceilings and includes a remote junction box for wiring.
- 6" model cutout dimension: 6.3"
- Tension spring clips mount into 1/2"–1.5" thick ceilings
- Pre-wired junction box with 3 in / 3 out circuit wiring
- Removable from below the ceiling for service or replacement
- Optional new construction plate and separate trim colors are available as accessories
Listings and warranty
The LED-DL-SQ-EX-6-3P18-5CCT-WH-SM carries common regulatory listings and is covered by the manufacturer's limited warranty.
- ETL Listed for USA and Canada
- ENERGY STAR certified
- California Title 24 JA8-2022 CEC listed
- IC Rated and ASTM-E283 Air-Tight
- 5‑year limited warranty
Before You Order
Verify the model number, cutout size and that a canless retrofit fixture is appropriate for your ceiling construction before ordering.
- This fixture does not fit into a recessed can; intended for canless/remodel installations.
- Optional trims, new construction plates and emergency backup modules are sold separately and must be ordered by their accessory part numbers.
- If dimming is required, confirm compatibility with your dimmer; the manufacturer lists tested Lutron and Leviton models.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DL-SQ-EX-6-3P18-5CCT-WH-SM – SQ-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| SKU | LED-DL-SQ-EX-6-3P18-5CCT-WH-SM |
| Type | 6" Square LED Retrofit Downlight (Canless) |
| Wattage | 18W / 15W / 12W (selectable) |
| Lumens | 1,500 / 1,100 / 700 lm (corresponding to wattage) |
| Color Temperature | Selectable 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | >90 (R9 > 50) |
| Beam Angle | 100° |
| Voltage | 120V |
| Dimming | Triac/ELV (manufacturer notes dimmable to 5%) |
| IP / Environmental Rating | Wet Location |
| Finish | White (smooth). Black and Bronze trims available separately |
| Cutout / Size | 6.3" cutout; 6" nominal size |
| Lens | Frosted polycarbonate, non‑yellowing |
| Rated Life | 50,000 hours |
| Certifications | ETL, ENERGY STAR, JA8 (Title 24) |
| Warranty | 5-year limited warranty |
| UPC | 810143715248 |
| DLC ID | 4481094 |
