EnVision LED-DL-SQ-EX-4-3P12-5CCT-WH-SM – SQ-Line

(No Ratings)
SKU: LED-DL-SQ-EX-4-3P12-5CCT-WH-SM
Price: $18.20
Free shipping on orders over $1,500

Description

Product Overview

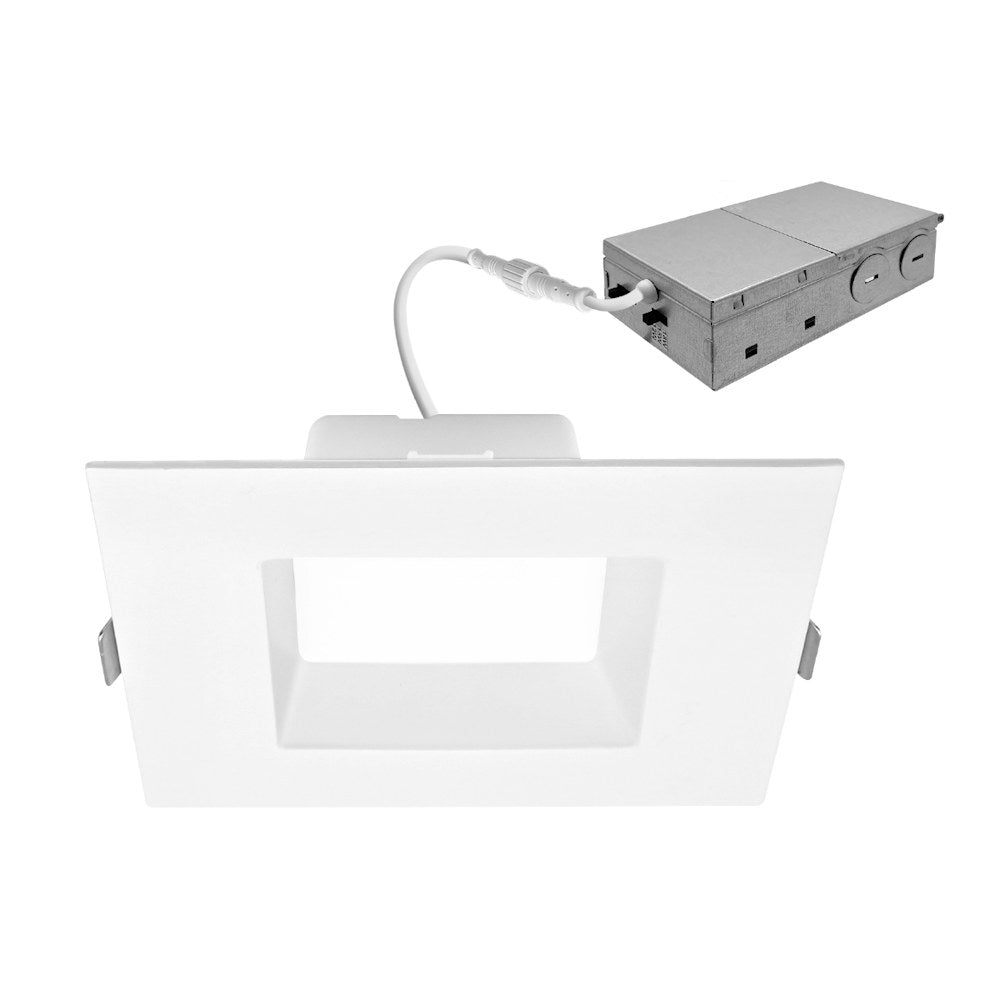

The EnVision LED-DL-SQ-EX-4-3P12-5CCT-WH-SM is a 4" square canless retrofit downlight with 3-power and 5-CCT selectable settings. It offers lumen outputs of 960 / 700 / 560 at 12 / 10 / 8 watts and a CRI greater than 90.

Designed for remodel and new-construction applications where a canless downlight is desired, the fixture includes a metal housing and trim, frosted PC lens, 100° beam angle, 120V operation, and triac/ELV dimming. It is ETL listed, Energy Star certified, JA8 compliant, and carries a 5-year limited warranty.

Key Features

  • Selectable outputs: 12W / 10W / 8W (960 / 700 / 560 lm)
  • 5-CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K (Select-n-Switch)
  • CRI > 90 with R9 > 50 and 3-step MacAdam ellipses
  • 120V input; Triac dimmable (listed to dim to 5%); built-in 2.5 kV surge protection; flicker-free
  • Wet location rated; frosted PC lens (non-yellowing); 100° beam angle
  • Average life L70: 50,000 hours; operating temperature range: -40° to 114° F
  • ETL Listed (US/CA), Energy Star certified, California Title 24 JA8-2022 compliant; 5-year limited warranty
  • White smooth finish standard; metal housing and trim for heat dissipation

What this downlight does

A 4" square canless retrofit downlight for general recessed lighting in residential and commercial spaces. The Select-n-Switch controls allow choosing from multiple lumen outputs and color temperatures from a single SKU.

  • Suitable for general recessed lighting applications including multifamily, offices, retail, hospitality, education and healthcare (as listed by the manufacturer)
  • Canless SnapTrim design with spring clips for remodel installations into 1/2"–1.5" ceiling thickness

Light output and color options

Use the 3-power and 5-CCT selectable settings to match lumen output and color temperature to the space without changing fixtures.

  • Wattage: 12W / 10W / 8W
  • Lumens: 960 / 700 / 560 respectively
  • Color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
  • Beam angle: 100°; frosted PC lens (non-yellowing)
  • Color rendering: CRI > 90 with R9 > 50; 3-step MacAdam ellipses

Voltage, dimming and driver features

The integrated driver is designed for 120V operation and includes dimming capability and surge protection as specified by the manufacturer.

  • Input voltage: 120V
  • Dimming: Triac/ELV dimmable (manufacturer lists down to 5%)
  • Built-in 2.5 kV surge protector and flicker-free operation
  • Optional field-installable emergency backup accessories are available separately

Mounting and installation

Canless retrofit design installs without a recessed can; the product includes a remote junction box that may be mounted remotely per manufacturer instructions.

  • Cutout dimension (4" model): 4.3"
  • Tension/spring clips secure into ceiling thickness from 1/2" to 1.5"
  • Pre-wired junction box with 3 in / 3 out circuit wiring
  • Fixture can be removed from below the ceiling for service or replacement
  • Does not fit into an existing recessed can according to the manufacturer

Listings, lifetime and warranty

Meets multiple regulatory and performance standards and is covered by a manufacturer-limited warranty.

  • ETL Listed for USA and Canada
  • Energy Star certified; California Title 24 JA8-2022 compliant
  • IC rated and ASTM-E283 air-tight; FCC listed where applicable
  • Average life L70: 50,000 hours
  • 5-year limited warranty

Before You Order

Confirm model and quantity for your project. Optional trims, emergency backup modules and new construction plates are sold separately.

  • Verify cutout dimension (4.3") and ceiling thickness compatibility (1/2"–1.5") before ordering

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DL-SQ-EX-4-3P12-5CCT-WH-SM – SQ-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.

Specifics

BrandEnVision
SKULED-DL-SQ-EX-4-3P12-5CCT-WH-SM
Product type4" Square LED Retrofit Downlight (Canless)
Wattage12 / 10 / 8 W (selectable)
Lumens960 / 700 / 560 lm (selectable)
Color TemperatureSelectable 2700K, 3000K, 3500K, 4000K, 5000K
CRI> 90 (R9 > 50)
Beam Angle100°
LensFrosted PC, non-yellowing
Voltage120V
DimmingTriac/ELV dimmable (listed to 5%)
Operating Temperature-40° to 114° F
IP / Environmental RatingWet location rated; IC rated; ASTM-E283 air-tight
Rated LifeL70 at 50,000 hours
FinishWhite smooth (black and bronze trims available separately)
Cutout4.3"
CertificationsETL (US/CA), Energy Star, JA8-2022
Warranty5-year limited warranty
UPC810143715231
DLC ID4481093
