Description
Product Overview

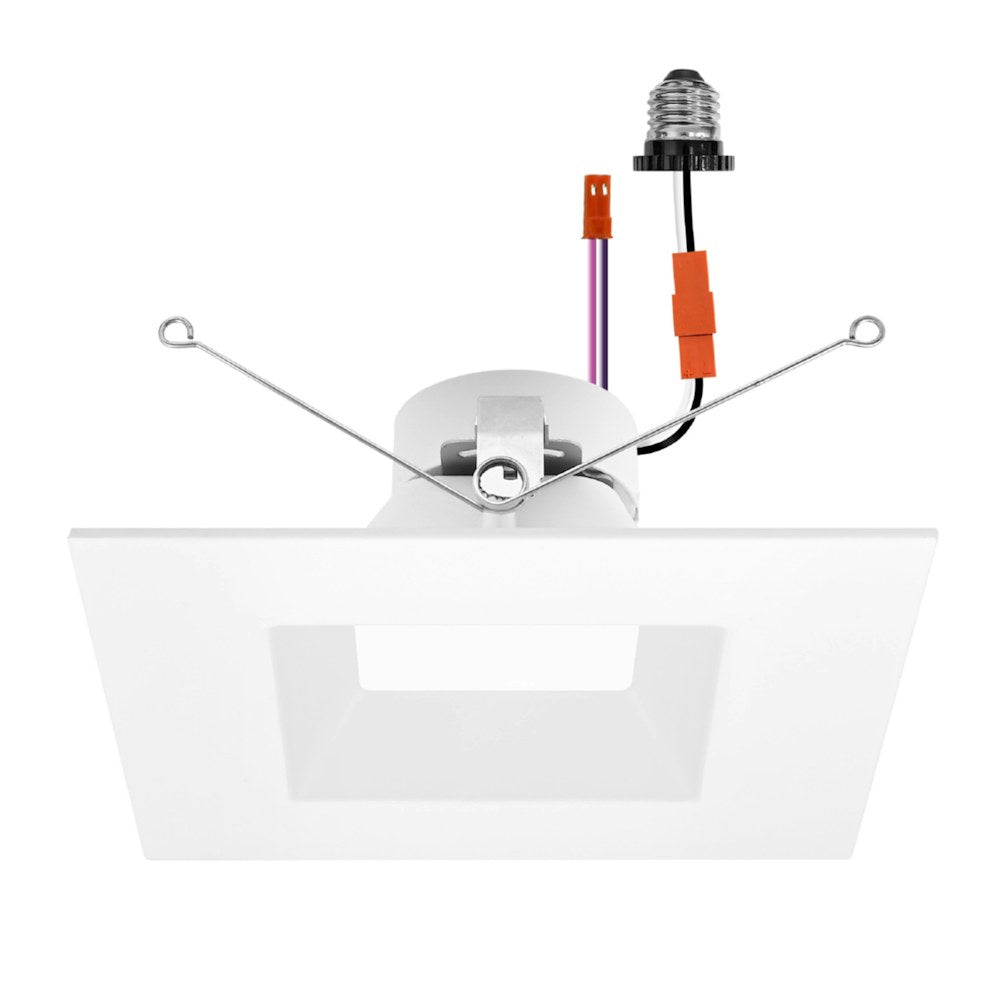

The EnVision RDL-Line LED-DL-SQ-6-13W-5CCT-UNV-0/10V is a 6-inch square LED retrofit downlight rated at 13 watts and 1,100 lumens. Its five selectable color temperatures are 2700K, 3000K, 3500K, 4000K, and 5000K.
This downlight has a white finish, 120–277V input, 0–10V dimming, a 100° beam angle, and a wet-location rating. It is designed for retrofit into existing recessed housing with an E26 socket.
Key Features
- 13W output with 1,100 lumens
- Five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, or 5000K
- 120–277V input and 0–10V dimming down to 5%
- 6-inch square form with white finish and 100° beam angle
- Wet-location rated; ETL listed for the United States and Canada
Output and Selectable Color Temperature
This EnVision downlight produces 1,100 lumens at 13 watts, with a 100° beam angle and CRI greater than 90.
Select from five color temperatures: 2700K, 3000K, 3500K, 4000K, or 5000K.
Voltage and 0–10V Dimming
The downlight operates on 120–277V input and supports 0–10V dimming down to 5%. The manufacturer also specifies flicker-free operation and a built-in 2.5 kV surge protector.
Retrofit Housing Fit and Installation
This 6-inch square retrofit downlight uses spring clips specified to fit most compatible 5-inch and 6-inch recessed cans. It is designed for retrofit into existing housing with an E26 socket and can be removed from below the ceiling for service or replacement.
The fixture includes an orange LED quick connector and an E26 base adapter. The manufacturer identifies remodel and new-construction applications.
Applications and Location Rating
The downlight is wet-location rated. Manufacturer-listed applications include general recessed lighting; residential and multifamily spaces; offices and meeting rooms; education, healthcare, retail, and hospitality.
Listings and Warranty
The manufacturer identifies the downlight as ETL listed for the United States and Canada and JA8-2025 CEC listed. The stated warranty is 5 years, limited.
Before You Order
Check that the existing recessed housing is compatible and has an E26 socket.
Ordering from Lumera Electric
Check the purchasing options shown on the Lumera Electric product page for EnVision LED-DL-SQ-6-13W-5CCT-UNV-0/10V – RDL-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
Specifics
| Brand | EnVision |
|---|---|
| Series | RDL-Line |
| Model / SKU | LED-DL-SQ-6-13W-5CCT-UNV-0/10V |
| Product Type | Square LED retrofit downlight |
| Size | 6-inch |
| Wattage | 13W |
| Lumens | 1,100 lumens |
| Selectable CCT | 2700K / 3000K / 3500K / 4000K / 5000K |
| Input Voltage | 120–277V |
| Dimming | 0–10V, down to 5% |
| CRI | >90 |
| Beam Angle | 100° |
| Finish | White |
| Location Rating | Wet location |
| Listings | ETL listed for the United States and Canada; JA8-2025 CEC listed |
| Warranty | 5-year limited |
| UPC | 810143716337 |
| Box Quantity | 36 |
