EnVision LED-CYE-UD-3-3P30-TRI-BL-PC – M-Line Up/Down Light

Product Overview

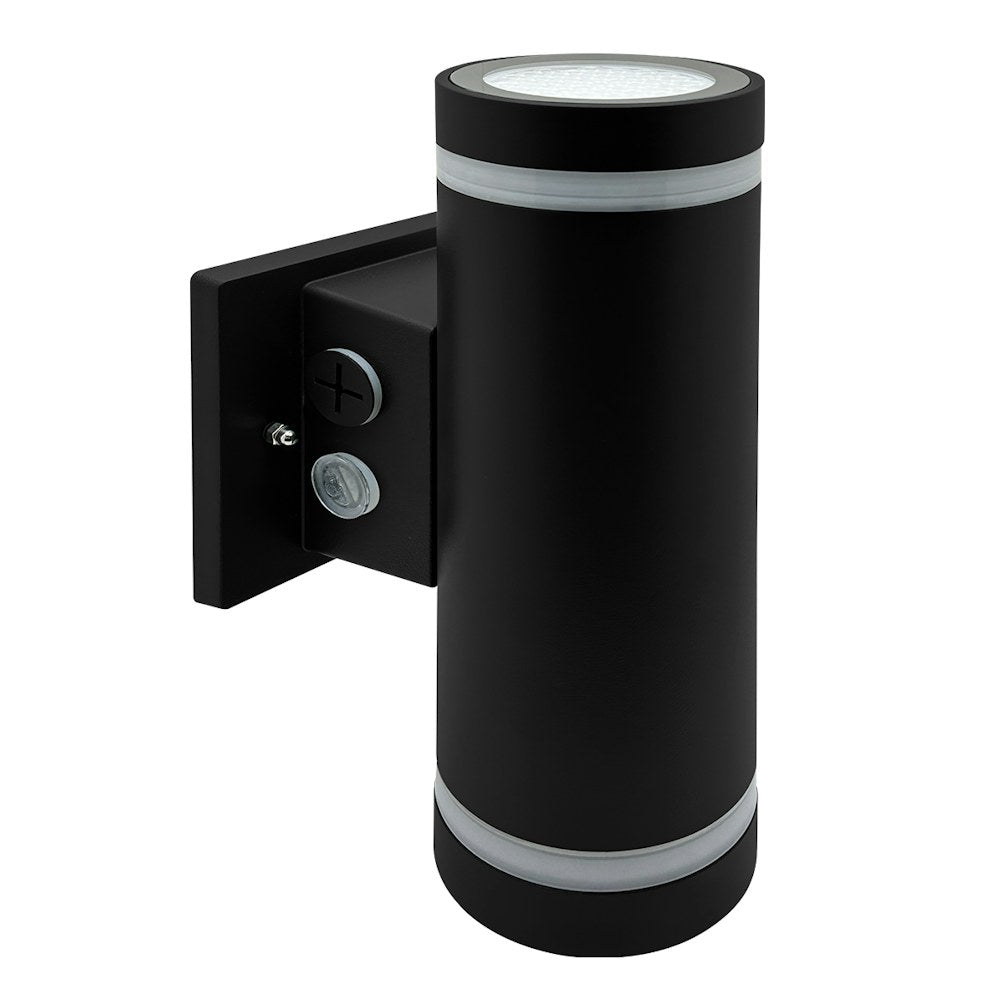

The EnVision LED-CYE-UD-3-3P30-TRI-BL-PC is a 3-inch M-Line edge-lit up/down LED cylinder with selectable power and color temperature settings and an integrated photocell.

It features a die-cast aluminum housing with corrosion-resistant powder coat, clear glass lens with optics, IP65 wet-location rating, mounts to standard 3" or 4" junction boxes, and includes a 1.5' STJW cable whip and quick-disconnect photocell.

Key Features

• Selectable wattage: 30 / 20 / 10W (3,600 / 2,400 / 1,200 lm)
• Selectable CCT: 3000K / 4000K / 5000K (Select-n-Switch)
• Voltage: 120–277V (UNV) with 0–10V dimming driver
• Built-in 6 kV surge protection
• Die-cast aluminum housing with corrosion-resistant powder coat (Black)
• IP65 wet-location rating; clear glass lens with optics; 60° beam angle
• Includes photocell with quick-disconnect and 1.5' STJW 18/3 cable whip
• CRI >80 with R9 >50; L70 50,000 hours; BUG: B2-U2-G2
• UL Listed (US/CA), FCC, CA Title 24 approved; 5-year limited warranty

What this fixture does

The LED-CYE-UD-3-3P30-TRI-BL-PC is an edge-lit up/down cylinder that provides illumination both above and below the fixture for vertical and ground-level lighting.

• Edge-lit up and down illumination
• Clear glass lens with optics directing a 60° beam

Light output and selectable power/CCT

Select-n-Switch technology provides three power levels and three color temperature settings to match application needs and energy preferences.

• Wattage: 30W, 20W, 10W
• Lumen outputs: 3,600 lm (30W), 2,400 lm (20W), 1,200 lm (10W)
• CCT options: 3000K, 4000K, 5000K
• CRI >80 and R9 >50

Voltage, driver and controls

The fixture uses a universal-voltage driver and supports 0–10V dimming. The driver includes surge protection as specified by the manufacturer.

• Voltage: 120–277V (UNV)
• Dimming: 0–10V
• Built-in 6 kV surge protection
• THD < 20% (±5% tolerance), power factor > 0.9, 50/60Hz

Mounting, physical and environmental details

Constructed from die-cast aluminum with a corrosion-resistant powder coat finish, the fixture mounts to 3" or 4" junction boxes and is rated for wet locations. Photocell and cable whip are included.

• Housing: die-cast aluminum, corrosion-resistant powder coat (Black)
• Mounts to 3" or 4" junction box; covers a standard 4" recessed j-box
• Includes photocell (quick disconnect) and 1.5' STJW 18/3 cable whip
• Operating temperature: -40°F to 122°F
• Average life: L70 at 50,000 hours

Certifications and warranty

This model is UL Listed for the U.S. and Canada, meets FCC requirements indicated by the manufacturer, is approved for California Title 24, and is covered by a 5-year limited warranty per the manufacturer.

• UL Listed (US/CA)
• FCC CFR 47 compliance; CA Title 24 approved
• 5-year limited warranty

Before You Order

Verify model number, quantity, and that selectable wattage/CCT settings meet your project requirements.

• Photocell is included; confirm photocell placement and function for your installation.
• Fixture mounts to 3" or 4" junction boxes—confirm box depth and cover requirements.
• Confirm site voltage (120–277V) and 0–10V dimming compatibility with controls.
