EnVision LED-CYA-UD-6-3P35-TRI-BL-PC – ARCY-Line

Product Overview

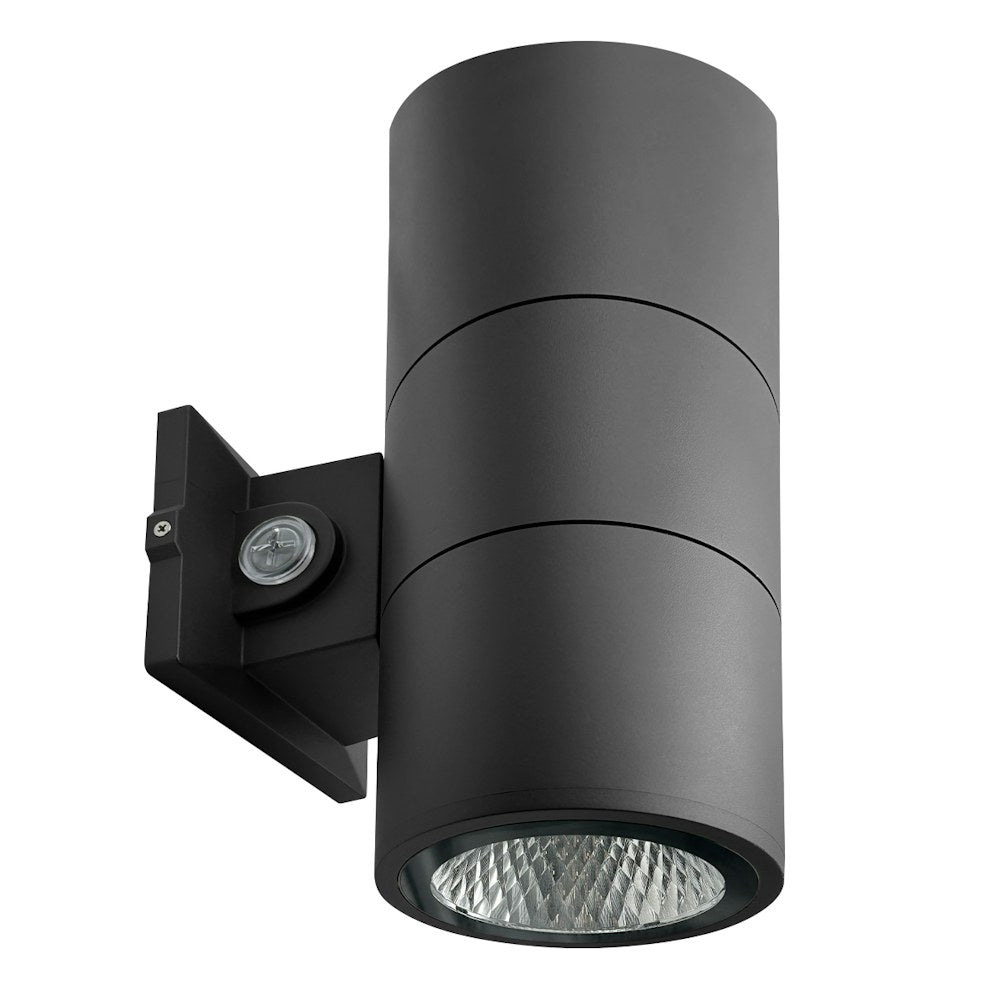

6" ARCY-Line architectural LED cylinder with 3-power and 3-CCT selectable settings: 35/29/22W producing 3,100/2,750/2,200 lumens and selectable 3000K/4000K/5000K.

Die-cast aluminum housing with corrosion-resistant powder coat finish, clear glass lens with optics, standard 40° beam, integrated photocell with on/off switch, universal 120–277V driver with 0–10V dimming, rated for wet locations (IP65).

Key Features

• Selectable wattages: 35W, 29W, 22W
• Selectable CCT: 3000K / 4000K / 5000K
• Lumen outputs: 3,100 / 2,750 / 2,200 lm
• 120–277V (UNV) driver, 0–10V dimming
• Built-in 6 kV surge protection
• IP65 wet location rating; UL listed; FCC compliant; 5-year limited warranty
• Photocell included with on/off switch; selectable light direction (Up, Down, Up & Down)
• Clear glass lens with optics; standard 40° beam (other optics available as accessory or factory option)

What this fixture does

The EnVision LED-CYA-UD-6-3P35-TRI-BL-PC is a 6" architectural cylinder that can deliver light upward, downward, or both, using field-selectable light-direction settings and a built-in photocell for dusk/dawn switching.

• Selectable light direction: Up only, Down only, or Up & Down
• Photocell included with on/off switch
• Clear glass lens with optics for a defined beam

Performance and lumen output

Three power/CCT combinations let you balance brightness and color to match the application.

• Wattages: 35W / 29W / 22W
• Lumen outputs: 3,100 / 2,750 / 2,200 lm (corresponding to wattages)
• Selectable CCT: 3000K / 4000K / 5000K
• Standard beam angle: 40° (other optics available as accessory or via factory)

Electrical and dimming

Equipped with a universal driver suitable for common commercial voltages and basic dimming controls.

• Input voltage: 120–277V (UNV)
• Dimming: 0–10V
• Built-in 6 kV surge protection
• Power characteristics: THD <20% (±5% tolerance), PF >0.9, 50/60 Hz

Mounting, materials and environmental suitability

Designed for outdoor and sheltered-exterior use with durable construction and standard mounting compatibility.

• Housing: die-cast aluminum with corrosion‑resistant powder coat
• Finish for this SKU: Black
• Mounts to 3" or 4" junction box and covers a standard 4" recessed J-box
• Operating temperature range: -40° to 122° F
• Average life: L70 at 50,000 hours (manufacturer rating)

Certifications, warranty and included items

Product carries common commercial certifications and includes specified accessories.

• UL listed for USA and Canada; FCC compliant (CFR 47, Part 15 subpart B:2017)
• Approved for California Title 24
• 5-year limited warranty
• Photocell included; 1.5' STJW 18.3 AWG cable whip included

Before You Order

Confirm the model, finish, beam angle, and required optics or accessories before ordering.

• This SKU is Black finish with standard 40° beam and integrated photocell (PC).
• If a different finish or beam (15° or 60°) is required, specify the appropriate accessory or factory option.
• Confirm compatibility with your dimming control (0–10V) and supply voltage (120–277V).
