EnVision LED-CMDSQ-6-3M30-5CCT-UNV – CMD

Product Overview

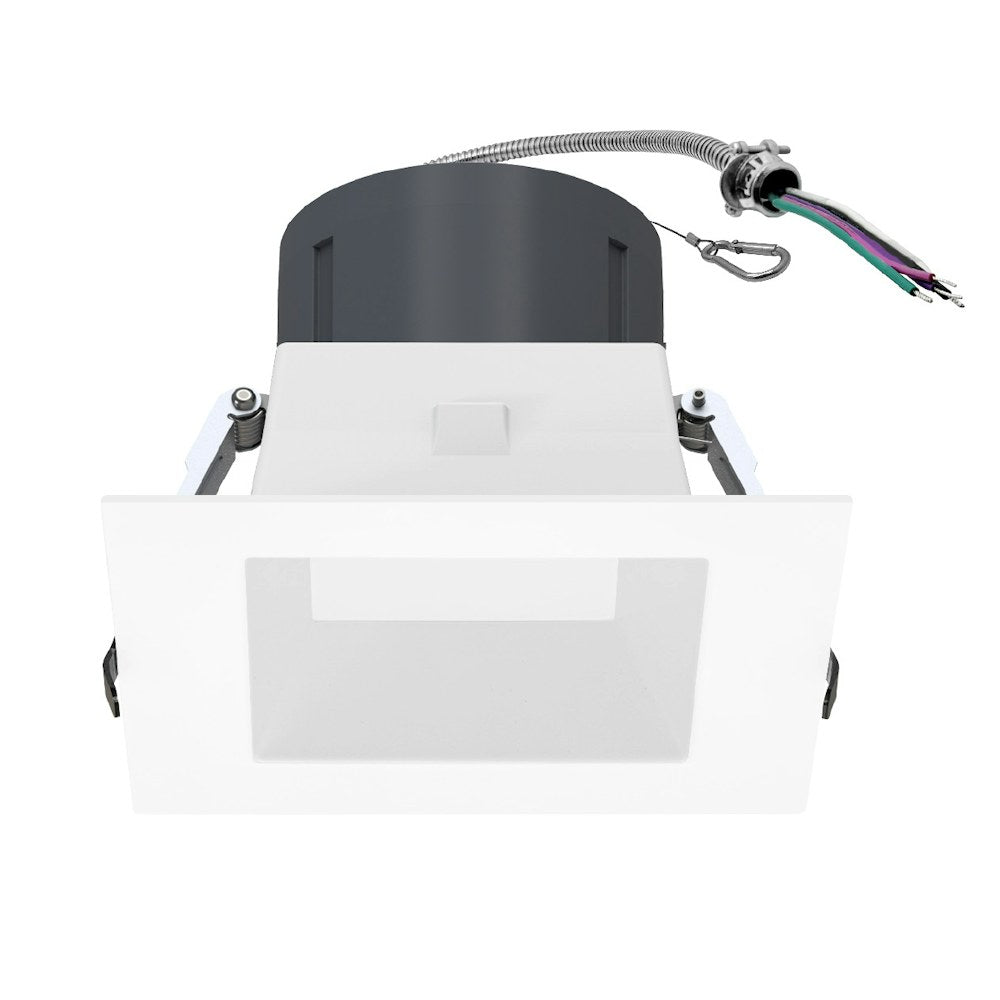

The EnVision LED-CMDSQ-6-3M30-5CCT-UNV is a 6-inch CMD commercial downlight with selectable wattage and color temperature. Its 30W, 20W and 15W settings deliver 2,850, 2,000 and 1,500 lumens, respectively.

This white-finish, wet-location-rated downlight is suited to recessed lighting in offices, education, healthcare, retail, hospitality, residential and multifamily spaces.

Key Features

• Select among five color temperatures: 2700K, 3000K, 3500K, 4000K or 5000K.
• Tri-mode dimming supports 0–10V, Triac and ELV controls, down to 5%.
• Canless design uses spring clips and a remote junction box; this fixture does not fit into a recessed can.
• ETL listed for the USA and Canada, Energy Star certified, and CA Title 24 JA8-2022 CEC listed.

Selectable Wattage, Lumens and Color Temperature

The EnVision CMD offers three power settings and five selectable color temperatures. Its output pairings are 30W with 2,850 lumens, 20W with 2,000 lumens, and 15W with 1,500 lumens. Selectable CCT settings are 2700K, 3000K, 3500K, 4000K and 5000K.

The fixture has an 80-degree beam angle and a CRI greater than 90.

Voltage and Dimming Compatibility

This model is rated for 120–277V input and supports 0–10V, Triac and ELV dimming down to 5%.

• Power factor: greater than 0.9
• Total harmonic distortion: less than 20% (±5% tolerance)
• Frequency: 50/60 Hz

Canless Mounting and Ceiling Requirements

The downlight mounts directly into the ceiling with spring clips and uses a remote junction box. It does not require a recessed can and does not fit into one.

For remodel applications, the tension clips mount in ceilings from 1/2 inch to 1.5 inches thick. The ceiling cutout is 7-9/10 inches. A 26-inch integral flex whip and carabiner safety clip are included.

• Pre-wired junction box with circuit wiring: 3 in / 3 out
• Can be removed from below the ceiling for service or replacement

Ratings and Certifications

This white-finish downlight is wet-location rated and non-IC rated.

• ETL listed for the USA and Canada
• Energy Star certified
• CA Title 24 JA8-2022 CEC listed
• ASTM-E283 air-tight
• Five-year limited warranty

Before You Order

Confirm that the non-IC rating and 7-9/10-inch ceiling cutout suit the installation; this downlight does not fit into a recessed can.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-CMDSQ-6-3M30-5CCT-UNV – CMD. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
