EnVision LED-CMDSQ-6-3M16-5CCT-UNV – CMD

Product Overview

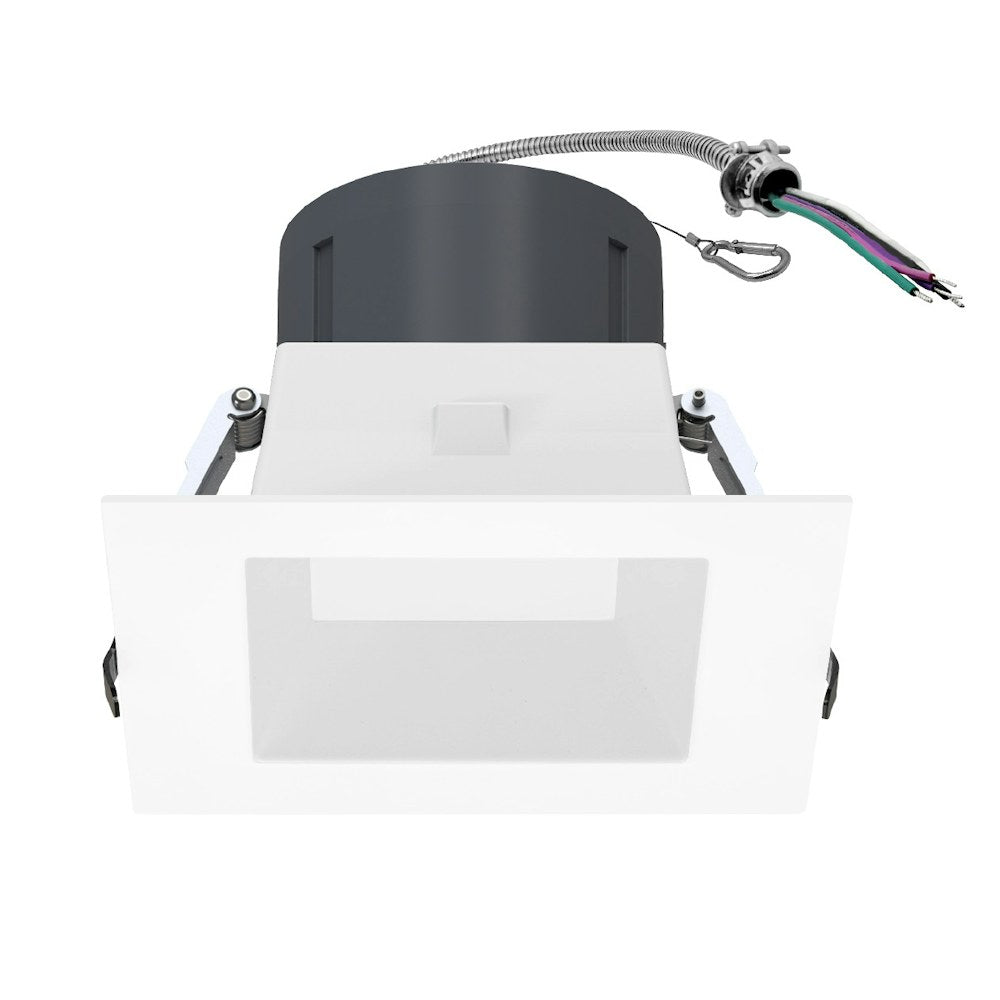

The EnVision LED-CMDSQ-6-3M16-5CCT-UNV is a 6" commercial recessed downlight with Select-n-Switch technology offering three power levels and five color temperatures for on-site configuration.

It provides up to 1,500 lumens, CRI >90 with R9 >50, tri-mode dimming (0-10V/Triac/ELV), is wet-location rated, and carries ETL and ENERGY STAR listings with a 5-year limited warranty.

Key Features

• Selectable wattage: 16 / 12 / 8 W
• Selectable lumen outputs: 1,500 / 1,100 / 750 lm
• 5 CCT options: 2700K / 3000K / 3500K / 4000K / 5000K
• Voltage: 120–277V (UNV)
• Tri-mode dimming: 0-10V, Triac, ELV (dimming to 5% supported)
• High color quality: CRI >90, R9 >50
• Beam angle: 80° with frosted, non-yellowing polycarbonate lens
• Wet location rated; white finish; metal housing
• Listings: ETL (US & CA), ENERGY STAR, JA8 / Title 24 compliant
• 5-year limited warranty; average L70 life ~70,000 hours

What this fixture does

The EnVision LED-CMDSQ-6-3M16-5CCT-UNV is a 6" commercial recessed downlight intended for general illumination in commercial and multifamily spaces. Its Select-n-Switch feature lets you choose among three power levels and five color temperatures at installation so one SKU can serve multiple applications.

• Typical applications: corridors, offices, meeting rooms, residential common areas, retail and hospitality spaces
• Integrated design elements: metal housing for heat dissipation, carabiner safety clip, deep reflector lens to reduce glare

Light output and quality

Provides three lumen levels and five CCT settings to balance visual comfort and energy use. The fixture delivers high color fidelity suitable for commercial spaces.

• Selectable wattage: 16 / 12 / 8 W
• Selectable lumen outputs: 1,500 / 1,100 / 750 lm
• CCT options: 2700K, 3000K, 3500K, 4000K, 5000K
• Color rendering: CRI >90 with R9 >50
• Beam: 80° with frosted PC lens for even distribution
• Rated life: L70 ~70,000 hours

Electrical and dimming compatibility

The integrated driver supports universal voltage and multiple dimming modes for flexible integration with common control systems. The driver includes surge protection and is specified as flicker free.

• Voltage: 120–277V (UNV)
• Dimming modes: 0-10V, Triac, ELV (tri-mode); specified dimming to 5%
• Power quality: THD <20% (±5% tolerance), power factor >0.9, 50/60 Hz
• Built-in 2.5 kV surge protector; flicker-free operation

Mounting, cutout and installation details

Designed for canless installation in remodels and adaptable to new construction with an optional plate. The fixture includes an integral flex whip and spring clips for mounting without a recessed can.

• Cutout for 6" model: 7-9/10"
• Canless installation: tension/spring clips fit 1/2" to 1.5" ceiling thickness
• Pre-wired junction box with 3 in / 3 out wiring; fixture removable from below ceiling for service
• Optional accessories sold separately: new construction plate (CUNV-NC-SQI-J-JBX), junction box (JBOX-ALM), emergency backup units (LED-EMB series)

Certifications and warranty

The product carries multiple safety and energy program listings appropriate for many commercial specifications.

• Listings: ETL (US & CA), ENERGY STAR certified
• California Title 24 / JA8-2022 CEC listed
• IC rated for the 6" 3M16 model; ASTM-E283 air-tight; specified compliance references where noted
• EMC: FCC CFR 47, CISPR/Part 15 references as listed by manufacturer
• 5-year limited manufacturer warranty

Before You Order

Confirm model number, quantity, ceiling thickness and cutout size before ordering. Determine if optional accessories (new construction plate, junction box, emergency backup) are required for your installation.

• The 6" 3M16 model is IC rated per manufacturer specifications — verify suitability for your insulated ceiling application.
• This fixture is designed for canless installation and does not fit into a standard recessed can; plan accordingly.
• Optional accessories are sold separately (CUNV-NC-SQI-J-JBX, JBOX-ALM, LED-EMB emergency backup models).
