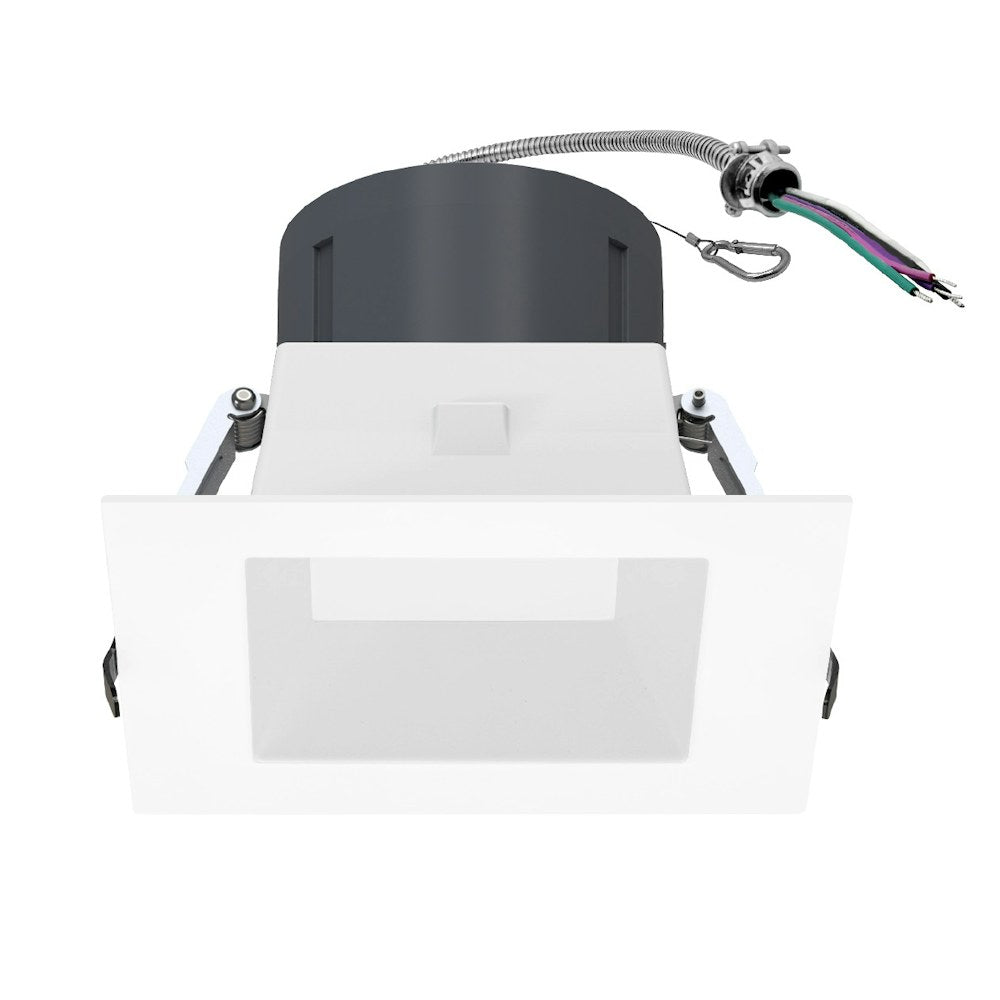

EnVision LED-CMDSQ-4-3M13-5CCT-UNV – CMD

Product Overview

The EnVision LED-CMDSQ-4-3M13-5CCT-UNV is a 4" commercial recessed downlight with selectable wattage and color temperature. It offers three power levels (13/9/6 W) producing 1,200/850/600 lumens and five CCT options (2700/3000/3500/4000/5000K).

The fixture includes an integral driver with tri-mode dimming, wet-location rating, ETL listing and Energy Star certification, and a 5-year limited warranty.

Key Features

• Select-n-Switch: 3 power settings (13/9/6 W) and 5 CCT options (2700/3000/3500/4000/5000K)
• Lumen outputs: 1,200 / 850 / 600 lm (corresponding to 13/9/6 W)
• Voltage: 120–277V (UNV) with integral flicker-free driver and built-in 2.5 kV surge protection
• Tri-mode dimming: 0-10V, Triac, ELV (dimming down to 5% as specified)
• High color quality: CRI > 90, R9 > 50 using SMD 2835 LEDs
• Wet-location rated; ETL listed (USA & Canada) and Energy Star certified; JA8 / Title 24 compliance noted
• IC rated for the 4" model, frosted non-yellowing PC lens, 80° beam angle
• Metal housing, white smooth trim, deep reflector to reduce glare

What this fixture does

The LED-CMDSQ-4-3M13-5CCT-UNV is a 4" commercial recessed downlight intended for general recessed lighting in offices, multifamily, retail, healthcare, hospitality and similar spaces. Its Select-n-Switch design lets you set output and color temperature on the fixture without changing the part number.

• Three power settings: 13 W, 9 W, 6 W
• Five color temperatures: 2700 K, 3000 K, 3500 K, 4000 K, 5000 K

Light output and quality

The fixture uses SMD 2835 LEDs and delivers selectable lumen outputs to match application needs while maintaining high color rendition.

• Lumen outputs: 1,200 lm (13 W), 850 lm (9 W), 600 lm (6 W)
• CRI > 90 with R9 > 50
• Beam angle: 80° with frosted PC lens and deep reflector to reduce glare
• Rated L70 average life: 70,000 hours

Electrical and dimming

An integral driver supports universal voltage and multiple dimming methods to work with common control systems.

• Voltage: 120–277V (UNV)
• Tri-mode dimming: 0-10V, Triac, ELV (specified down to 5%)
• THD < 20% (±5% tolerance), power factor > 0.9, 50/60 Hz
• Built-in 2.5 kV surge protector; flicker-free operation

Mounting and installation

This canless downlight installs into the ceiling without a recessed can using spring tension clips. It includes a pre-wired junction box and is serviceable from below the ceiling.

• Cut-out for 4" model: 6-3/10"
• No housing needed for remodel applications; optional new-construction plate available (order separately)
• Includes 26" integral flex whip and carabiner safety clip
• Fixture can be removed from below the ceiling for service or replacement

Certifications and warranty

The product carries manufacturer certifications and a limited warranty useful for compliance and specification.

• ETL listed for USA and Canada; Energy Star certified
• CA Title 24 JA8-2022 (JA8) listed / compliant
• IC rated for the 4" model; ASTM-E283 air-tight; references to ASTM E119 and CAN ULC S101 compliance where noted
• 5-year limited manufacturer warranty

Before You Order

Confirm the model and quantity required and verify cut-out and accessory needs for your installation.

• Cut-out dimension for the 4" model: 6-3/10"
• Optional accessories (order separately): new construction plate (CUNV-NC-SQI-J-JBX), emergency backup modules (LED-EMB series), junction box (JBOX-ALM)
• Verify dimming compatibility with site controls (0-10V, Triac, ELV)
