EnVision LED-CMDEX-4-3M12-5CCT-CUNV – CMD-Line

Product Overview

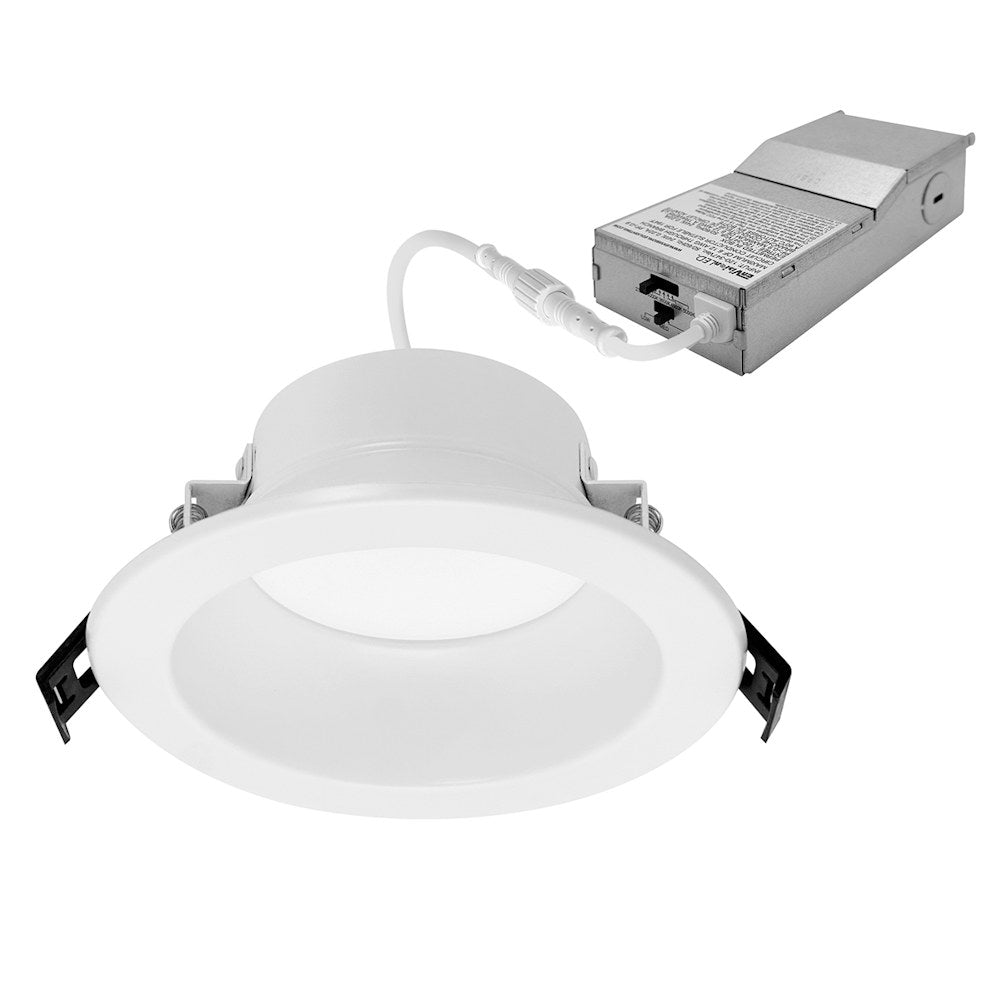

The EnVision LED-CMDEX-4-3M12-5CCT-CUNV is a 4-inch CMD-Line commercial LED downlight with selectable color temperature and three selectable power levels. It has a canless design with spring clips and an external junction box.

Select from five color temperatures, 2700K through 5000K, and power settings of 12W, 9W, or 6W. Listed lumen outputs are 1,100, 900, and 650 lumens, respectively.

Key Features

• Selectable 2700K, 3000K, 3500K, 4000K, or 5000K color temperature
• Three selectable power settings: 12W, 9W, and 6W
• 120–347V input with 0–10V dimming
• Wet-location rated, with a 90° beam angle and CRI greater than 90
• Canless design with spring clips and a pre-wired external junction box

Selectable CCT and power settings

This 4-inch CMD-Line downlight offers five selectable color temperatures: 2700K, 3000K, 3500K, 4000K, and 5000K. Its three power settings are 12W, 9W, and 6W, with listed outputs of 1,100, 900, and 650 lumens, respectively.

The fixture is preset to 5000K and maximum wattage.

Voltage and dimming

The CUNV version operates on 120–347V and uses 0–10V dimming. It has a Class II isolated driver, power factor greater than 0.9, and total harmonic distortion below 20% with a stated ±5% tolerance.

Canless mounting and installation

The downlight uses spring clips and a remote junction box. It does not fit into a recessed can and requires no housing in remodel applications. The specified ceiling cutout is 4 inches; spring clips mount in ceilings 1/2 to 1.5 inches thick. The fixture can be removed from below the ceiling for service or replacement.

• The pre-wired junction box includes circuit wiring with three inputs and three outputs.
• An optional new-construction plate is available separately.

Applications and ratings

Applications include general recessed lighting in residential and multifamily settings, as well as offices, hallways, meeting rooms, education, healthcare, retail, hospitality, and commercial spaces. The downlight is wet-location rated and has a 90° beam angle.

• ETL listed for the USA and Canada; Energy Star certified.
• CA Title 24 JA8-2022 CEC listed, IC rated, and ASTM-E283 air-tight.
• Includes a five-year limited warranty.

Before You Order

This downlight does not fit into a recessed can and requires a 4-inch ceiling cutout.
