EnVision LED-CMD-8-5P30-5CCT-UNV – CMD-Line

Product Overview

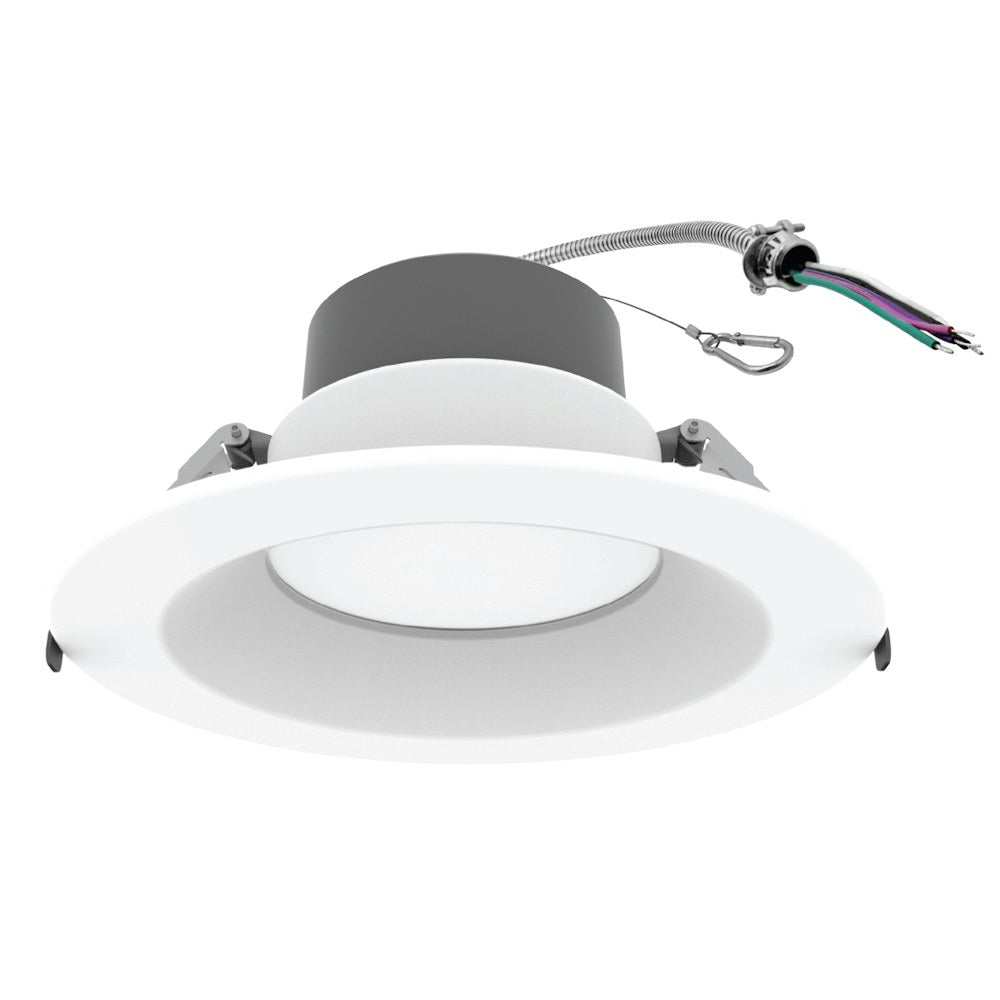

The EnVision LED-CMD-8-5P30-5CCT-UNV is an 8" commercial recessed downlight in the CMD-Line that offers field-selectable lumen output and color temperature.

Selectable power settings are 16 / 20 / 23 / 27 / 30 W with corresponding lumen packages of 2,050 / 2,450 / 2,700 / 3,200 / 3,350 lm, and selectable CCT options of 2700K, 3000K, 3500K, 4000K and 5000K.

Key Features

• Select-n-Switch: 5-power and 5-CCT selectable in the field (16/20/23/27/30 W; 2,050/2,450/2,700/3,200/3,350 lm)
• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K
• Universal input: 120–277V; TRI-mode dimming (0–10V, Triac, ELV) down to 5%
• High color quality: CRI >90 with R9 >50 (SMD 2835 LED)
• Wet-location rated; ETL Listed (US/CA), Energy Star certified, CA Title 24 JA8 listed; 5-year limited warranty

What this fixture does

Direct answer: The LED-CMD-8-5P30-5CCT-UNV is an 8" recessed downlight designed to allow one SKU to cover multiple lumen and color temperature specifications via field-selectable settings.

Select-n-Switch lets you choose one of five wattage outputs and one of five color temperatures at the fixture to match project requirements without changing the fixture model.

• Selectable wattages: 16 / 20 / 23 / 27 / 30 W
• Selectable lumen outputs: 2,050 / 2,450 / 2,700 / 3,200 / 3,350 lm
• Selectable CCT: 2700K / 3000K / 3500K / 4000K / 5000K

Recommended applications

Direct answer: Suitable for general recessed lighting in commercial and multifamily environments where high color quality and lumen/CCT flexibility are beneficial.

Manufacturer-listed typical uses include offices, hallways, meeting rooms, education, healthcare, retail, hospitality, multifamily and other commercial spaces.

• General recessed lighting, corridors and open-plan offices
• Multifamily common areas and residential applications
• Retail, hospitality, education and healthcare spaces

Electrical, dimming and driver details

Direct answer: The fixture operates on 120–277V and supports multiple dimming methods via its driver.

Documented driver features include 0–10V, Triac and ELV dimming down to 5%, THD under 20% (±5% tolerance), power factor greater than 0.9, built-in 2.5 kV surge protection, flicker-free output and a UL94-5VA fire-rated PC driver box.

• Voltage: 120–277V
• Dimming: 0–10V, Triac, ELV (dimming to 5%)
• Driver: THD <20% (±5%), PF >0.9, 50/60 Hz, 2.5 kV surge protection, flicker-free

Mounting, cut-out and installation notes

Direct answer: The CMD-Line 8" installs without a dedicated recessed can using spring tension clips (SnapTrim canless) and includes a pre-wired junction box; it can be serviced from below the ceiling.

Confirm cut-out and ceiling thickness against the published ranges before installation.

• Mounting: Canless SnapTrim with spring clips for 1/2" to 1.5" ceiling thickness; removable from below ceiling
• Cut-out for 8" model: 7-1/2" – 8-7/8"
• Includes metal housing and trim, 26" integral flex whip, carabiner safety clip and pre-wired junction box (3 in / 3 out)

Certifications, ratings and performance

Direct answer: The fixture carries multiple third-party certifications and specified performance metrics suitable for commercial installations.

Highlights from the manufacturer documentation include ETL listing for US and CA, Energy Star certification (meets ES Class A low noise), CA Title 24 JA8 listing, wet-location rating, IC rating, ASTM-E283 air-tight, UGR <22, L70 of 70,000 hours and a 5-year limited warranty.

• Listings: ETL Listed (US/CA), Energy Star certified, CA Title 24 JA8-2022
• Environmental: Wet-location rated, IC rated, ASTM-E283 air-tight
• Optical & life: CRI >90, R9 >50, UGR <22, L70 = 70,000 hours
• Warranty: 5-year limited warranty

Before You Order

Confirm desired lumen and CCT selection, model number and required quantity before ordering; verify ceiling cut-out and thickness for compatibility with canless installation.

• This fixture does not fit into a recessed can; no housing required for remodel installations.
• Optional trims, wall-wash trims, new construction plates, junction boxes and emergency backup units are available separately.
• For dimmer compatibility beyond the manufacturer’s tested list, consult the manufacturer or your Lumera Electric representative.
