EnVision LED-CMD-8-3M36-5CCT-CUNV – CMD-Line

Product Overview

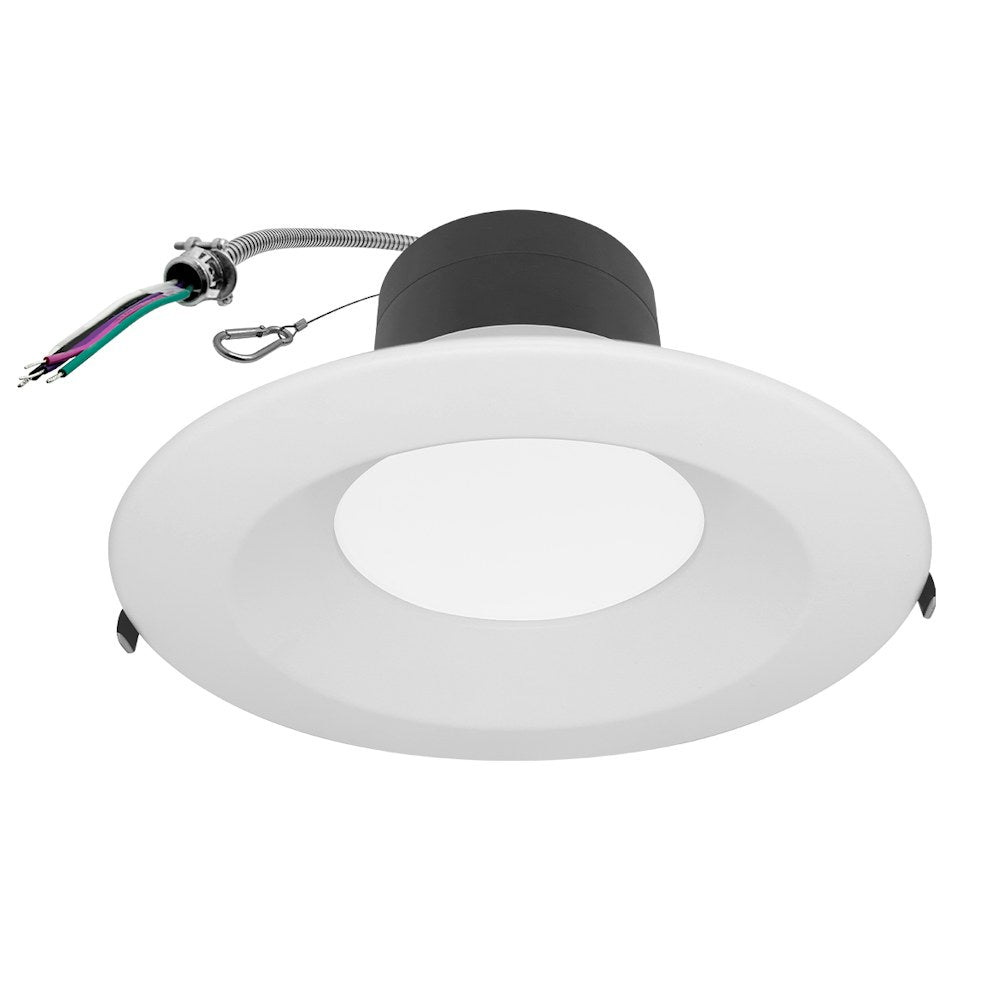

The EnVision LED-CMD-8-3M36-5CCT-CUNV is an 8" commercial recessed downlight from the CMD-Line with field-selectable power and color-temperature settings. It ships with a standard white trim, is wet-location rated, and is designed for specification-grade commercial and multifamily interiors.

Factory features include 3-power selectable (22/32/36W), 5-CCT selectable (27/30/35/40/50K), a 0–10V dimmable driver, CRI >90 with R9 >50, ETL listing, ENERGY STAR certification, and a 5-year limited warranty.

Key Features

• 3-power selectable: 22 / 32 / 36 W
• Selectable lumen outputs: 2,500 / 3,500 / 3,900 lm
• 5-CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• Voltage: 120–347V (CUNV); built-in 2.5 kV surge protector
• Dimming: 0–10V (dimmable to 5% on 8" model); flicker-free driver
• High color quality: CRI > 90, R9 > 50; 3-step MacAdam ellipses
• Beam angle: 80° with frosted polycarbonate lens and deep reflector to reduce glare
• Wet-location rated; metal housing and standard white round trim included
• Certifications and warranty: ETL (US & CA), ENERGY STAR, CA Title 24 JA8 listed, 5-year limited warranty

What this fixture is for

The EnVision LED-CMD-8-3M36-5CCT-CUNV is intended for general recessed lighting in commercial, multifamily and residential common-area interiors where an 8" specification-grade downlight is required.

• General recessed lighting for offices, corridors, retail, education, healthcare, hospitality and multifamily common areas
• Wet-location rated—suitable where fixtures may be exposed to moisture (per manufacturer rating)

Light output and color options

Field-selectable power and CCT options let you set lumen output and color temperature on site to match project needs without ordering multiple SKUs.

• Selectable wattages: 22 W, 32 W, 36 W
• Selectable lumen outputs: 2,500 lm, 3,500 lm, 3,900 lm (correspond to power settings)
• 5-CCT selection: 2700K, 3000K, 3500K, 4000K, 5000K
• Color rendering: CRI > 90 with R9 > 50; 3-step MacAdam ellipses
• Beam: 80° (8" model) with frosted PC lens and deep reflector for reduced glare

Voltage, driver and dimming compatibility

This CUNV model accepts a wide input voltage range and includes driver features intended for commercial installations.

• Input voltage: 120–347V (CUNV designation)
• Dimming: 0–10V dimmable (8" model dimmable down to 5% per manufacturer); driver is specified as flicker-free
• Electrical: THD < 20% (±5% tolerance), power factor > 0.9, 50/60 Hz (manufacturer data)
• Built-in 2.5 kV surge protector

Mounting, cutout and installation details

The 8" CMD-Line unit installs without a traditional recessed can in remodel applications and includes installation features intended to simplify mounting and service.

• Cutout range for 8" model: 7-1/2" – 8-7/8"
• No recessed can required for remodel installs; spring/tension clips allow installation into ceilings 1/2" to 1.5" thick
• Includes 27" integral flex whip, pre-wired junction box (3 in / 3 out) and carabiner safety clip
• Can be removed from below the ceiling for service or replacement
• Optional accessories (ordered separately): trims, goof rings, new-construction plates, junction boxes and emergency backup units

Listings, life and warranty

The fixture carries common commercial listings and manufacturer-rated life and warranty appropriate for specification use.

• ETL Listed for USA and Canada
• ENERGY STAR certified and CA Title 24 JA8 listed
• Average L70 life: 70,000 hours (manufacturer specification)
• Operating temperature range: -40°F to 114°F (manufacturer specification)
• 5-year limited warranty

Before You Order

Confirm model number, required quantity and ceiling cutout before ordering. Select any trims, new-construction plates or emergency backup units separately if needed.

• Cutout range for 8" model: 7-1/2" – 8-7/8"
• This 8" CMD-Line unit is listed as non-IC for the LED-CMD-8-3M36-5CCT-CUNV model — verify thermal/clearance requirements for your application
• Optional trims, goof rings, new-construction plates and emergency backup units are sold separately

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-CMD-8-3M36-5CCT-CUNV – CMD-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
