EnVision LED-CMD-8-3M29-5CCT-UNV – CMD-Line

Product Overview

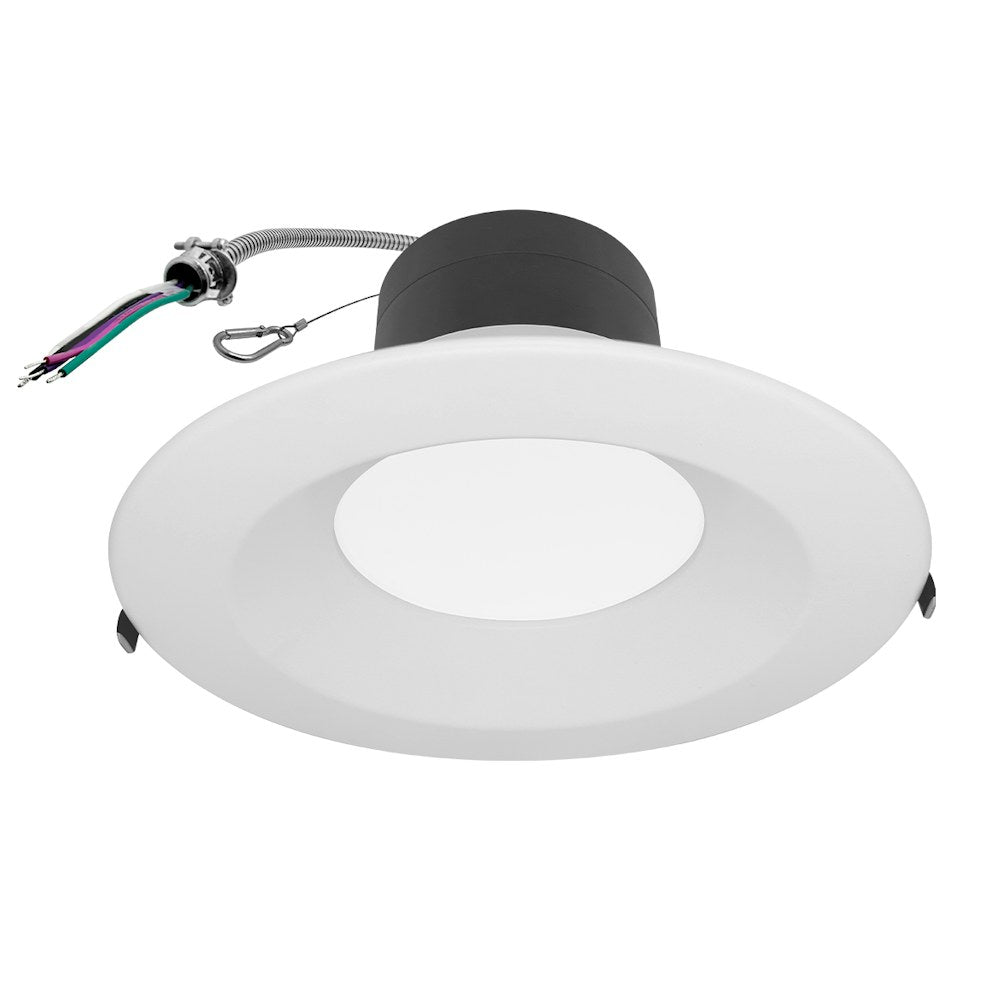

The EnVision LED-CMD-8-3M29-5CCT-UNV is an 8" commercial recessed downlight with Select-n-Switch 5‑CCT and 3‑power selectable settings, allowing on-site selection of lumen output and color temperature from a single SKU.

The fixture includes a frosted polycarbonate lens, metal housing, integrated driver with surge protection, and is wet-location rated. The 8" model is listed as IC rated in the manufacturer documentation.

Key Features

• Selectable power: 16.5W / 23W / 29W
• Selectable lumen output: 1,500 lm / 2,000 lm / 2,500 lm
• 5‑CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
• Voltage: 120–277V (UNV); built‑in 2.5 kV surge protector
• Dimming: 0–10V, dimmable down to 5% for 8" models
• High color rendering: CRI >90, R9 >50 (SMD 2835); 3‑step MacAdam ellipses
• Beam angle: 80° (8" models)
• Wet location rated, ETL listed (US & CA), Energy Star certified, 5‑year limited warranty
• Includes 27" integral flex whip, carabiner safety clip, and pre‑wired junction box

What this fixture does

This 8" CMD-Line downlight provides adjustable lumen and color-temperature options for general recessed lighting in commercial and multifamily settings. The Select-n-Switch controls let installers set power and CCT on-site without changing the fixture.

• Metal housing with standard white smooth trim and deep reflector lens to reduce glare
• SnapTrim canless design with spring clips for remodel installations; pre-wired junction box included (3 in / 3 out)
• Includes 27" integral flex whip and carabiner safety clip

Light output & color options

Choose among three power/lumen settings and five correlated color temperatures to meet design or energy goals.

• Power: 16.5W / 23W / 29W
• Light output: 1,500 lm / 2,000 lm / 2,500 lm
• CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Beam angle: 80° (for 4, 6 and 8" models per documentation)
• Color quality: CRI >90 with R9 >50; 3‑step MacAdam ellipses

Electrical and dimming requirements

The integrated driver for the UNV version supports 120–277V and includes surge protection and flicker‑free operation. The 8" model is 0–10V dimmable to 5% per the manufacturer.

• Voltage: 120–277V (UNV)
• Dimming: 0–10V (dimmable to 5% for 8" models)
• Driver specs: THD <20% (±5%), PF >0.9, 50/60 Hz; built‑in 2.5 kV surge protector; flicker‑free

Mounting, cutout and installation notes

The CMD-Line 8" unit is listed as IC rated and intended for remodel/canless installations; it does not fit into a standard recessed can and uses spring clips to secure into ceilings between 1/2" and 1.5" thick. The fixture can be removed from below the ceiling for service.

• IC Rated (8" model)
• Cutout dimensions (8"): 7-1/2" – 8-7/8"
• Pre‑wired junction box and 27" integral flex whip included
• Optional new‑construction plates, trims, goof rings and emergency backups are available as separate accessories

Certifications & warranty

Manufacturer documentation lists ETL listing for USA & Canada, Energy Star certification, CA Title 24 JA8‑2022 listing, and a 5‑year limited warranty for the product.

• ETL Listed (USA & CA)
• Energy Star certified
• CA Title 24 JA8‑2022 (JA8) listed
• 5‑year limited warranty

Before You Order

Verify the model, required quantity, and which trims or accessories your project requires before ordering.

• Optional trims, goof rings, new‑construction plates, junction boxes and emergency backup units are sold separately.
• If dimmer compatibility is required, review the manufacturer's tested dimmer list or contact the supplier for guidance.
