EnVision LED-CMD-6-5P24-5CCT-UNV – CMD-Line

Product Overview

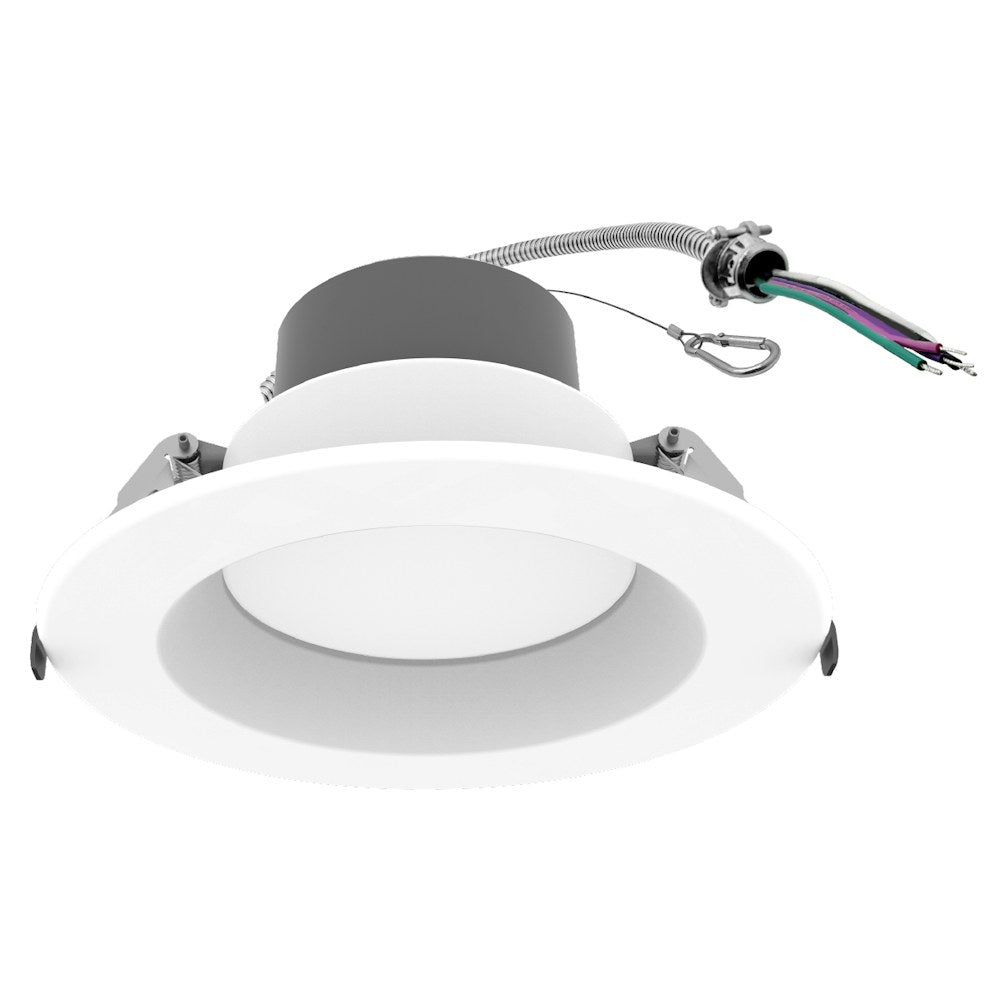

The EnVision LED-CMD-6-5P24-5CCT-UNV is a 6-inch CMD-Line LED downlight with five selectable power levels and five selectable color temperatures.

Selectable wattages are 9.5W, 13W, 18.5W, 21W, and 24W, with corresponding listed outputs of 1,200, 1,600, 2,200, 2,400, and 2,800 lumens. It has a white smooth finish, a 90° beam angle, and a wet-location rating.

Key Features

• Five selectable power settings: 9.5W, 13W, 18.5W, 21W, and 24W
• Five selectable CCT settings: 2700K, 3000K, 3500K, 4000K, and 5000K
• 120–277V input; 0–10V, Triac, and ELV dimming
• CRI greater than 90 and a 90° beam angle
• Canless design with spring clips and a remote junction box

Selectable Wattage, Lumens, and CCT

This 6-inch CMD-Line downlight offers five selectable power settings: 9.5W, 13W, 18.5W, 21W, and 24W. The corresponding listed lumen outputs are 1,200, 1,600, 2,200, 2,400, and 2,800 lumens.

Select from 2700K, 3000K, 3500K, 4000K, or 5000K. The fixture has a CRI greater than 90, a 90° beam angle, and a standard white smooth finish.

Voltage and Dimming

The downlight is rated for 120–277V and supports 0–10V, Triac, and ELV dimming. The manufacturer specifies dimming down to 5%, dim-to-off, and flicker-free operation.

Canless Mounting and Ceiling Cutout

The CMD-Line uses spring clips and a remote junction box; it does not fit into a recessed can. For remodel applications, the manufacturer specifies mounting in ceilings 1/2 to 1.5 inches thick.

The specified ceiling cutout range for the 6-inch model is 6-1/8 to 7-3/16 inches. Each fixture includes a 26-inch integral flex whip and a carabiner safety clip, and can be removed from below the ceiling for service or replacement.

Ratings and Certifications

The fixture is wet-location rated and IC rated, and is listed as air-tight to ASTM E283. Manufacturer documentation identifies ETL listing for the USA and Canada, Energy Star certification, and California Title 24 JA8-2022 CEC listing. It has a 5-year limited warranty.

Before You Order

Check that the specified ceiling cutout and ceiling thickness suit the intended installation.
