EnVision LED-CMD-6-5P19-5CCT-UNV – CMD-Line

Product Overview

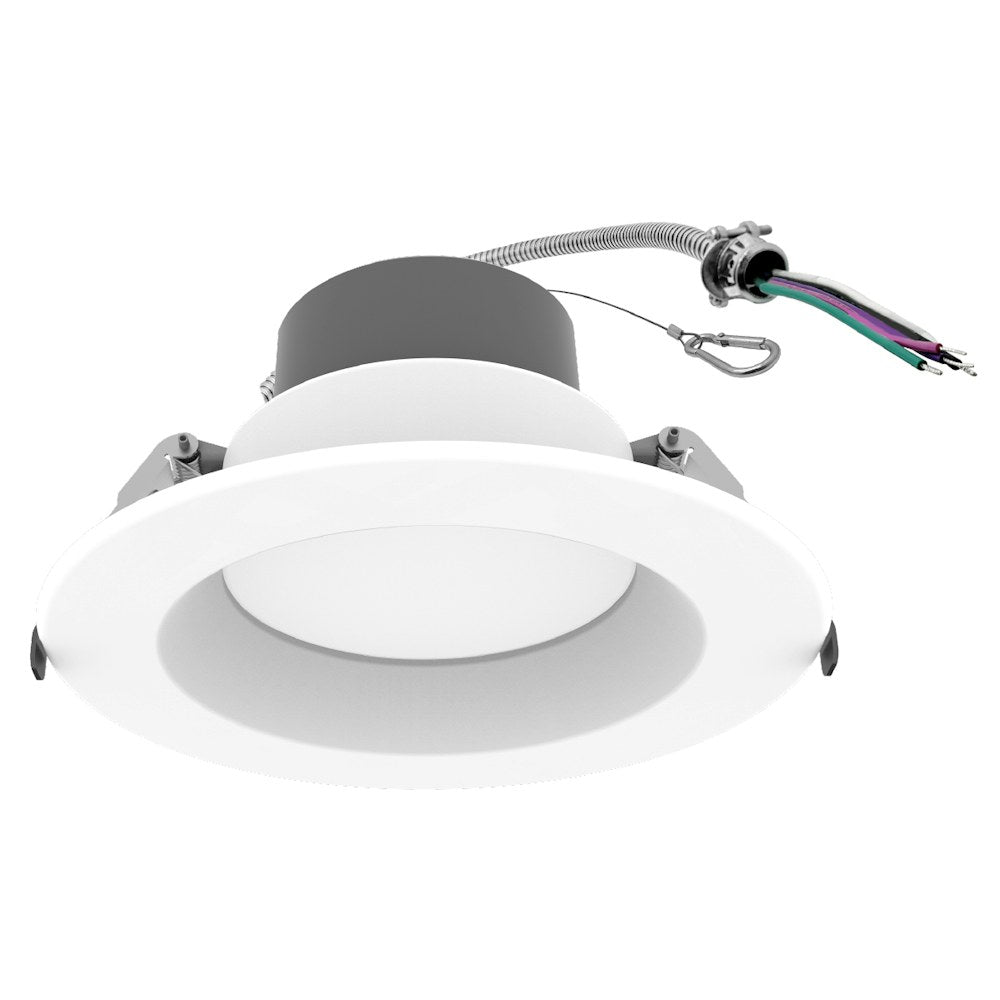

The EnVision LED-CMD-6-5P19-5CCT-UNV is a 6" commercial recessed downlight with Select-n-Switch technology that provides five selectable lumen/watt outputs and five selectable color temperatures on the fixture.

Suitable for general recessed lighting, this model offers 8/10/13/15/19W (1,000–2,000 lm), selectable 2700/3000/3500/4000/5000K, CRI >90, 120–277V input, and a wet-location rating.

Key Features

• 5-power selectable: 8 / 10 / 13 / 15 / 19 W
• 5-CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• Delivered lumen options: 1,000 / 1,200 / 1,500 / 1,750 / 2,000 lm
• High color quality: CRI >90, R9 >50, 3-step MacAdam ellipses
• Driver: 120–277V; TRI-mode dimming (0–10V, Triac, ELV), dim to 5% (manufacturer lists down to 5%)
• Built-in 2.5 kV surge protector, power factor >0.9, THD <20% (±5%), flicker free
• Wet-location rated; ETL Listed for USA and Canada; ENERGY STAR certified
• Beam angle: 90°; UGR <22; average L70 life 70,000 hours
• White smooth finish standard; frosted, non-yellowing PC lens; metal housing

What this fixture does

The LED-CMD-6-5P19-5CCT-UNV is a 6" commercial recessed downlight designed to provide adjustable lumen output and selectable color temperature from the fixture, allowing on-site selection of output and appearance at install or commissioning.

• Intended for general recessed lighting in commercial, multifamily, and residential applications
• On-fixture selection of output and CCT without replacing the fixture

Light output and color performance

Five power and lumen settings and five CCT options allow matching of delivered lumen and color temperature to project needs while maintaining high color fidelity.

• Wattage options: 8, 10, 13, 15, 19 W
• Delivered lumens: 1,000 / 1,200 / 1,500 / 1,750 / 2,000 lm
• CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
• Color quality: CRI >90, R9 >50, 3-step MacAdam ellipses
• 90° beam with frosted PC lens; UGR <22 listed in manufacturer data

Voltage, driver and dimming compatibility

The integrated driver supports wide-voltage operation and multiple dimming methods as listed by the manufacturer.

• Input voltage: 120–277V, 50/60 Hz
• Dimming: TRI-mode — 0–10V, Triac, ELV; manufacturer specifies dim down to 5% and dim-to-off
• Electrical: power factor >0.9, THD <20% (±5%), built-in 2.5 kV surge protector, flicker free
• Manufacturer provides a list of tested compatible dimmers from Leviton, Lutron, Eaton, and Hubbell

Mounting, cutout and installation features

The CMD-Line 6" downlight includes features for both remodel and new construction installations and is serviceable from below the ceiling.

• Cutout dimension (6"): 6-1/8" – 7-3/16"
• SnapTrim canless mounting with spring clips for 1/2" to 1.5" thick ceilings; manufacturer notes fixture does not fit into a recessed can
• Includes metal housing, 26" integral flex whip, carabiner safety clip, and an external pre-wired junction box with 3 in / 3 out
• Optional new construction plates and accessory trims are available and sold separately

Ratings and certifications

Manufacturer documentation lists multiple certifications and ratings applicable to code-driven projects.

• ETL Listed for USA and Canada
• ENERGY STAR certified (manufacturer notes low noise <24 dB, meets ES Class A)
• CA Title 24 JA8-2022 CEC listed; flicker free
• Wet-location rated; IC rated; ASTM-E283 air-tight
• Average L70 lifetime: 70,000 hours; 5-year limited warranty

Before You Order

Confirm the model number and quantity before ordering. Optional trims, new construction plates and emergency backup modules are sold separately.

• Verify cutout dimensions for the 6" unit (6-1/8" – 7-3/16") and ceiling thickness (1/2"–1.5") for canless installation
• If dimmer integration is required, confirm compatibility with the manufacturer's tested dimmer list
