EnVision LED-CMD-10-5P38-5CCT-UNV – CMD-Line

Product Overview

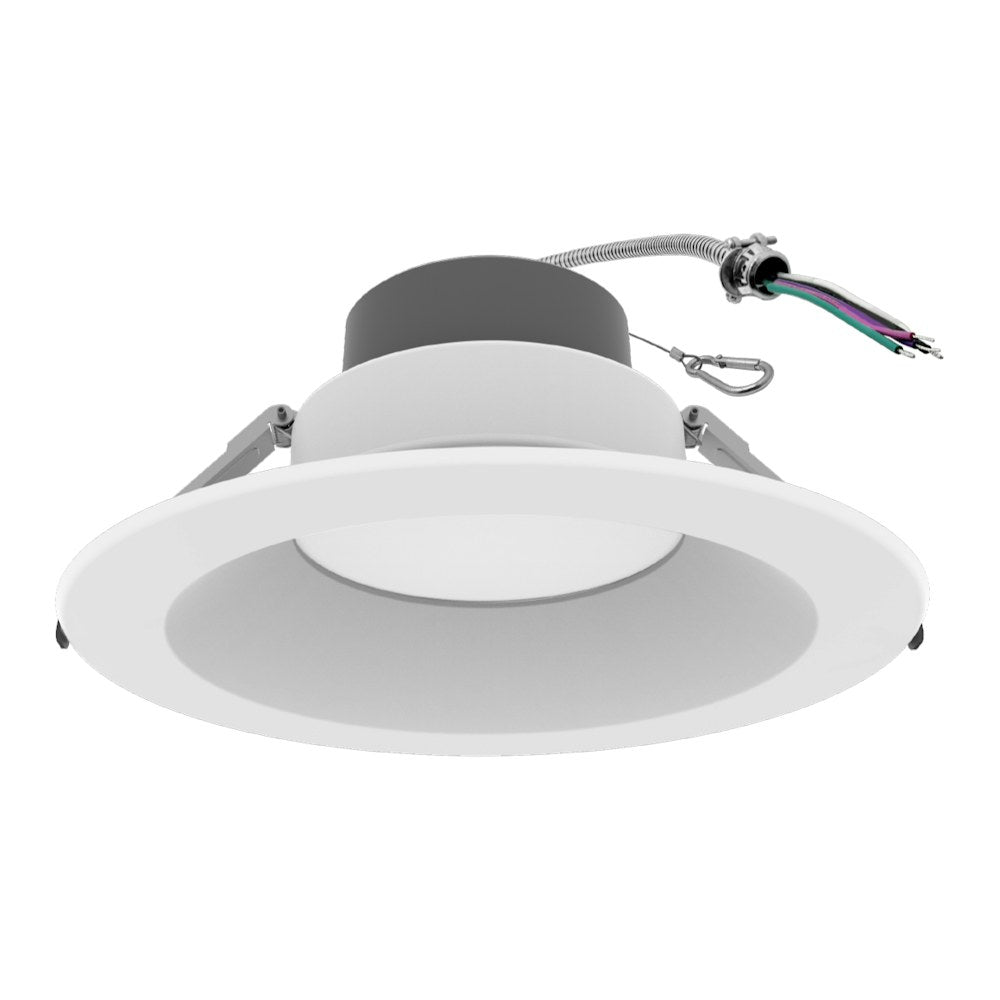

The EnVision LED-CMD-10-5P38-5CCT-UNV is a 10" commercial recessed downlight with Select-n-Switch technology that lets installers choose from five power and five CCT settings at the fixture.

It delivers up to 4,150 lumens at the highest selectable setting, operates on 120–277V, supports multiple dimming modes, and is ETL listed and ENERGY STAR certified with a 5-year limited warranty.

Key Features

• Selectable wattages: 20 / 24 / 28 / 32 / 38 W
• Selectable lumen outputs: 2,550 / 2,850 / 3,200 / 3,600 / 4,150 lm
• 5‑CCT selectable: 2700K, 3000K, 3500K, 4000K, 5000K
• Voltage: 120–277V; dimming: 0–10V, Triac, ELV (to 5%)
• CRI >90 with R9 >50; frosted non‑yellowing polycarbonate lens; UGR <22
• Wet-location rated; ETL Listed (USA & CA); ENERGY STAR certified; CA Title 24 JA8 listed
• Metal housing and trim; canless SnapTrim for remodel; pre-wired external junction box; carabiner safety clip

What this fixture does

The LED-CMD-10-5P38-5CCT-UNV is a 10-inch commercial recessed downlight featuring Select-n-Switch to choose among five lumen/power settings and five correlated color temperatures at the fixture.

Typical applications listed by the manufacturer include general recessed lighting for office, retail, hospitality, education, healthcare, and multifamily installations.

• Selectable power: 20 / 24 / 28 / 32 / 38 W
• Selectable output: 2,550 / 2,850 / 3,200 / 3,600 / 4,150 lm
• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K

Electrical and dimming

The fixture is rated for 120–277V and supports multiple dimming protocols. The manufacturer specifies tri‑mode dimming and lists driver performance characteristics.

Built-in protections and driver behavior are provided as part of the product design per the manufacturer.

• Voltage: 120–277V
• Dimming: 0–10V, Triac, ELV (tri‑mode; dim to 5% specified)
• Driver notes: THD <20% (±5% tolerance), Power Factor >0.9, 50/60Hz; built-in 2.5 kV surge protector; flicker‑free; dim‑to‑off

Mounting and installation

The CMD-Line includes metal housing and standard white round trim. It can be installed in remodel (canless) applications using spring clips or used with optional new construction plates.

The product ships with an external junction box and installation hardware per the manufacturer.

• Canless SnapTrim with spring clips for 1/2" to 1.5" ceiling thickness (remodel)
• Cut-out range for 10" model: 9" – 10"
• Includes 26" integral flex whip, carabiner safety clip, and external junction box (pre-wired, 3 in / 3 out)
• Optional accessories (ordered separately): new construction plates, trims, wall-wash trims, goof rings and emergency backup units

Photometric and optical performance

The 10" CMD-Line uses SMD 2835 LEDs behind a frosted polycarbonate lens and a deep reflector aimed at reducing glare and providing even beam distribution.

Color quality and selectable outputs support applications where high color fidelity and adjustable brightness are desired.

• Beam angle (10"): 95°
• CRI: >90 with R9 >50; 3‑step MacAdam ellipses
• Lens: frosted, non‑yellowing polycarbonate; UGR <22
• Rated L70: 70,000 hours; operating temperature: -40°F to 114°F

Certifications and warranty

The LED-CMD-10 model carries common regulatory and energy program listings noted by the manufacturer and includes a limited warranty.

Refer to project requirements to confirm compliance with specific codes and rebate programs when selecting CCT and controls.

• Listings: ETL Listed (USA & CA), ENERGY STAR certified, CA Title 24 JA8 listed
• Other: FCC Part 15, IC Rated, ASTM‑E283 Air‑Tight
• Warranty: 5‑year limited warranty

Before You Order

Confirm model, desired lumen/CCT setting, trim choice and any optional accessories before ordering.

• This SKU is the 10" CMD-Line model with 5‑power and 5‑CCT selectable options.
• Optional trims, goof rings, new construction plates and emergency backup units are ordered separately—verify accessory model numbers for compatibility.
