EnVision LED-CMD-10-3M38-5CCT-UNV – CMD-Line

Product Overview

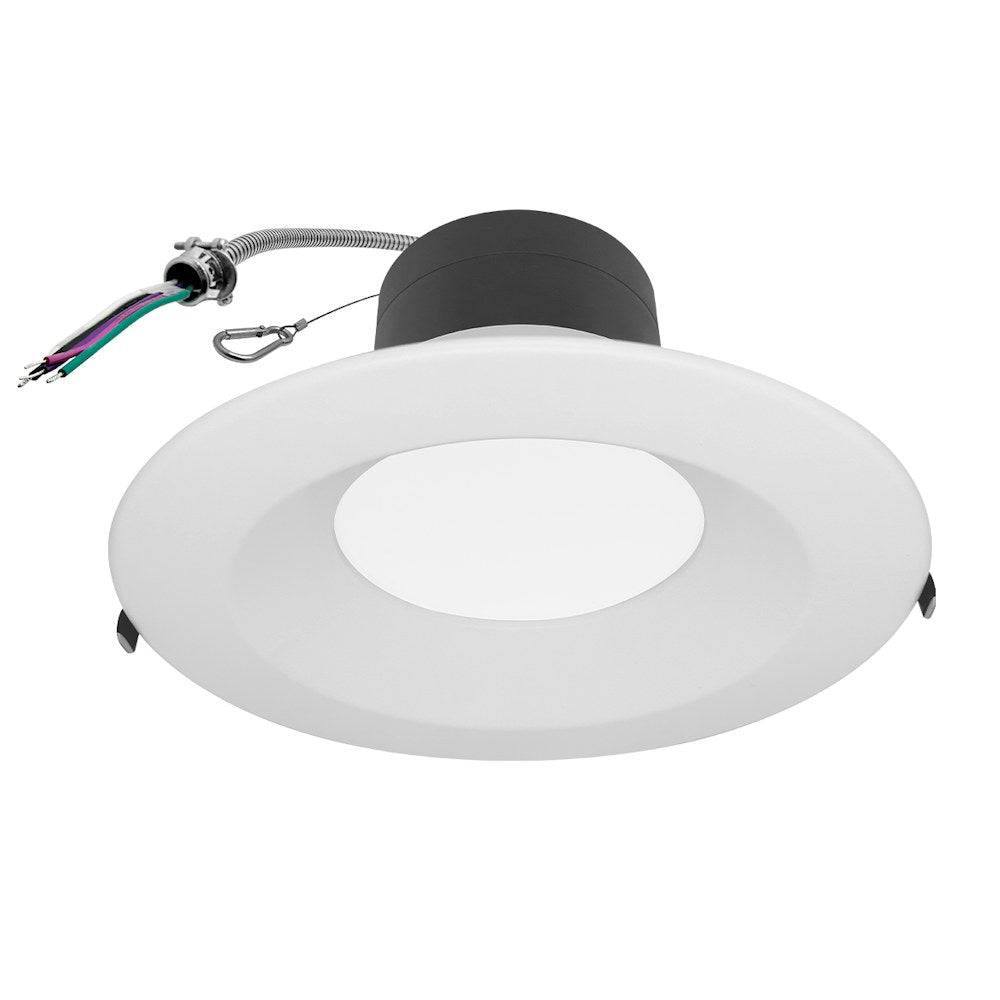

The EnVision LED-CMD-10-3M38-5CCT-UNV is a 10" commercial recessed LED downlight from the CMD-Line with 3-power and 5-CCT selectable settings for flexible lumen and color temperature selection.

This IC-rated fixture provides high color rendering (CRI >90), a 90° beam angle for the 10" model, wet-location rating, and 120–277V operation (UNV).

Key Features

• Selectable power: 21W / 30W / 38W (field selectable)
• Selectable lumen outputs: 2,000 / 2,500 / 3,300 lm
• 5-CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• Voltage: 120–277V (UNV)
• Dimming: 0–10V dimmable (to 5% for 8 & 10" sizes per manufacturer); flicker free
• High color quality: CRI >90, R9 >50 (manufacturer data)
• Beam angle: 90° (10" model)
• Wet location rated; IC rated (10" model)
• Finish: standard white trim; optional trims and accessories available
• Certifications: ETL listed, ENERGY STAR certified, JA8 / Title 24 listed
• Warranty: 5-year limited warranty

What this fixture does

This 10" EnVision CMD-Line downlight delivers general recessed illumination for commercial and multifamily interiors and other indoor commercial spaces where selectable output and color temperature are useful.

• Purpose: general recessed lighting
• Applications listed by manufacturer: residential & multifamily, office, hallways, meeting rooms, education, healthcare, retail, hospitality, commercial lighting

Light output and color control

The fixture uses Select-n-Switch technology to allow field selection of three power/lumen levels and five color temperatures without replacing the fixture.

• Power positions: 21W, 30W, 38W
• Delivered lumens: 2,000 lm, 2,500 lm, 3,300 lm (corresponding to the power settings)
• Color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K (selectable)
• Color rendering: CRI >90, R9 >50
• Beam angle (10" model): 90°
• Lens: frosted polycarbonate, non-yellowing; deep reflector to reduce glare

Voltage, driver and dimming

The LED-CMD-10-3M38-5CCT-UNV is configured for 120–277V input and includes a driver with stated performance characteristics.

• Input voltage: 120–277V (UNV)
• Dimming: 0–10V dimmable; manufacturer notes 0–10V to 5% for 8" & 10" models
• Driver performance (manufacturer data): THD <20% (±5% tolerance), power factor >0.9, 50/60Hz
• Built-in 2.5 kV surge protector; flicker free

Mounting and installation

The CMD-Line 10" fixture is IC rated and designed for remodel and new construction installations with features that assist mounting and servicing.

• Cut-out range (10" model): 9"–10"
• Mounting: snap-spring canless installation with tension clips for 1/2" to 1.5" thick ceilings; removable from below the ceiling for service
• Housing: metal housing and trim; integral 27" flex whip included
• Safety and service: carabiner safety clip included; pre-wired junction box with 3 in / 3 out

Certifications, ratings and warranty

This model carries common listings and manufacturer warranty suitable for commercial specification.

• Listings: ETL listed for USA and Canada; ENERGY STAR certified
• Regulatory: CA Title 24 JA8-2022 listed (JA8)
• Environmental: Wet location rated; IC rated for the 10" model
• Lifecycle: L70 average life of 70,000 hours (manufacturer data)
• Warranty: 5-year limited warranty

Before You Order

Confirm the SKU and required quantity before ordering; trims and accessories are sold separately.

• Verify cut-out size (10" model requires 9"–10" cut-out).
• Order any optional trim, goof ring, new construction plate or emergency backup separately if needed.
• Confirm dimming/control compatibility with the site's controls; manufacturer provides tested compatible dimmer lists.
