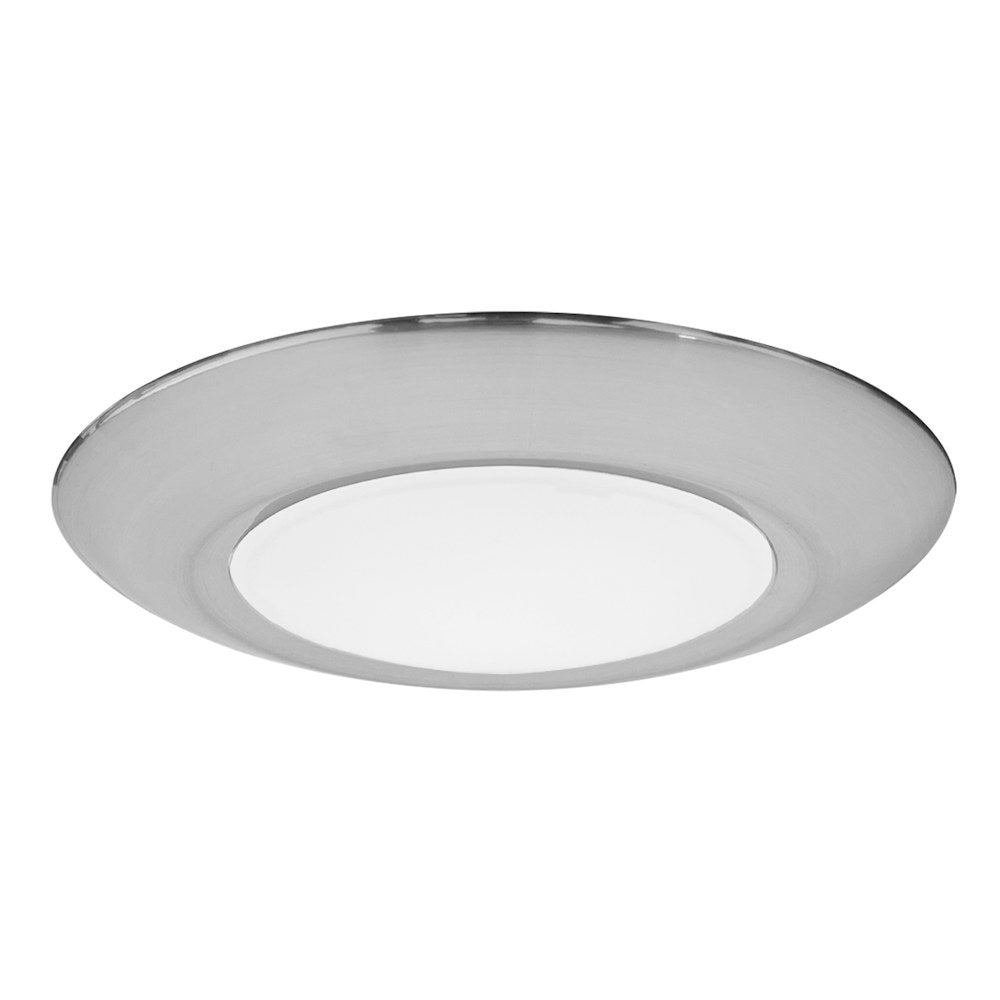

EnVision LED-CDSK-4-10W-TRI-BN – Cusp-Line

Product Overview

The EnVision LED-CDSK-4-10W-TRI-BN Cusp-Line is a 4" LED disk light that produces 650 lumens from a 10W source with a brushed nickel finish and selectable color temperatures (30/40/50K).

It uses AC driverless technology for direct 120V connection, is wet-location rated, and carries ETL and CA Title 24 JA8 listings plus a 5-year limited warranty.

Key Features

• 10W power draw producing 650 lumens
• Selectable 3000K / 4000K / 5000K (30/40/50K)
• CRI >90 with R9 >50 (SMD 2835)
• 120V AC driverless design; Triac/ELV dimmable
• 100° beam angle with frosted acrylic lens
• Wet-location rated; metal housing; brushed nickel finish
• ETL listed (USA/CA), CA Title 24 JA8 listed, 5-year limited warranty

What this fixture does

The LED-CDSK-4-10W-TRI-BN is a slim 4" disk that outputs 650 lumens from a 10W LED module. It provides three-position selectable white (30/40/50K) and high color fidelity with CRI greater than 90 and R9 over 50.

• Lumens: 650 lm at 10W
• Selectable CCT: 30K / 40K / 50K (three-position)
• Beam angle: 100° via frosted acrylic lens

Suitable applications

Manufacturer guidance lists general recessed lighting in residential, multifamily, offices, education, healthcare, retail, and hospitality as typical uses for this disk.

• Suitable for remodel and new construction installations
• IC rated and closet rated per manufacturer
• Wet-location rated (suitable for covered wet locations)

Electrical and dimming details

The fixture uses AC driverless technology for direct 120V connection. It supports Triac/ELV dimming and the manufacturer documents dimming down to 5% with tested compatibility for specific dimmers. THD is listed under 20% (±5% tolerance) and power factor greater than 0.9.

• Voltage: 120V
• Dimming: Triac/ELV (manufacturer lists dimming to 5% with tested dimmers)
• THD: <20% (±5%), Power Factor >0.9, 50/60 Hz

Mounting and installation options

The Cusp Disk supports installation to a junction box or using an E26 base adapter as shown by the manufacturer. It is compatible with 3"/4" junction boxes (including pancake J-box) and has optional recessed can converters for 4" and 6" housings.

• Mounting: J-box or E26 base adapter (per manufacturer illustrations)
• Compatible with 4" recessed can converter and 3"/4" junction boxes
• Slim profile suitable for shallow plenums and remodel cut-ins

Certifications, finish and warranty

This model is ETL listed for the U.S. and Canada, CA Title 24 JA8-2022 CEC listed, and includes a 5-year limited warranty. Finish is brushed nickel with a metal housing and frosted acrylic lens.

• Certifications: ETL (USA/CA), CA Title 24 JA8-2022 CEC listed
• Warranty: 5-year limited warranty
• Finish: Brushed Nickel; housing: metal; lens: frosted acrylic

Before You Order

Confirm the model number, finish, and required quantity before ordering. Verify dimmer compatibility on site against the manufacturer's tested dimmer list if you plan to dim to low levels.

• This SKU is 3-CCT selectable (30/40/50K).
• Check existing junction box depth or plan to use an E26 adapter/recessed can converter if needed.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-CDSK-4-10W-TRI-BN – Cusp-Line. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
