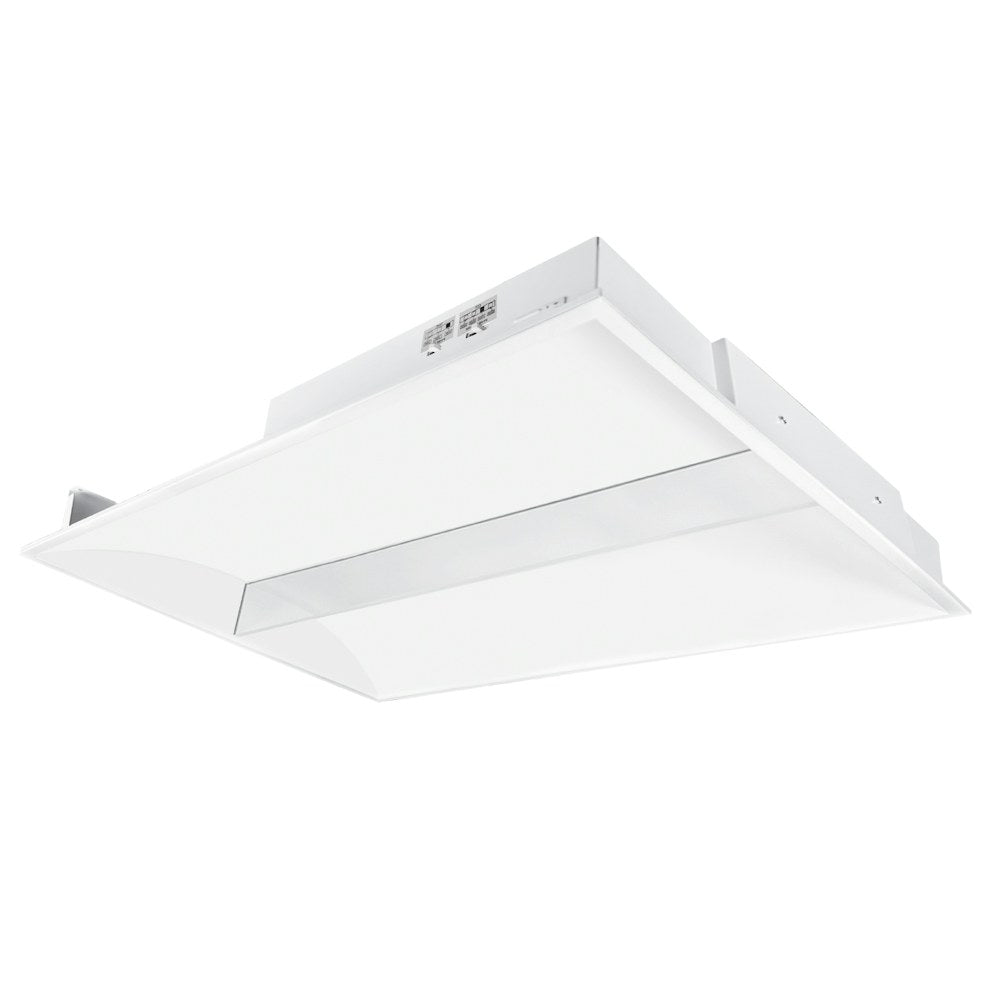

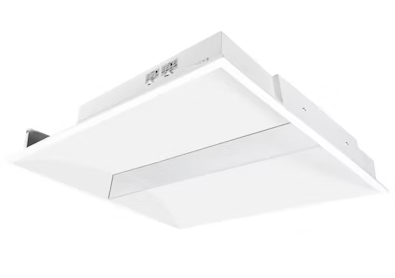

• EnVision LED-CBT-TL-2X4-3P50-4CCT LED Troffer
1 1

EnVision

EnVision LED-CBT-TL-2X4-3P50-4CCT – ARCY-Line

EnVision LED-CBT-TL-2X4-3P50-4CCT – ARCY-Line

$172.20
$172.20
Sale Sold out

LED-CBT-TL-2X4-3P50-4CCT
Request a Quote
Product Overview

EnVision's LED-CBT-TL-2X4-3P50-4CCT troffer supplies up to 6,000 lumens with selectable 50/40/30w output on universal 120-277V, suited to suspended-grid retrofits with straightforward install and confirmation.

Key Features
  • Selectable power: 50/40/30w set at install, one SKU covering multiple loads
  • Output: up to 6,000 lumens matching the selected wattage
  • Field-selectable color: 3000K-5000K (4 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 110° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location
  • Finish: White
  • Compliance: UL/DLC Listed, 5-year warranty
Technical Specifications
Brand EnVision
Wattage 50/40/30w
Lumens 6,000/4,800/3,600
Color Temperature 3000K-5000K (4 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 110°
CRI >80
IP Rating Damp Location
Finish White
Certification UL/ DLC/ 5 Yrs
Box Quantity 1
UPC 810143712971
Applications

Suited to suspended-grid retrofits, drop-ceiling office grids, and education and healthcare.

Compatibility & Installation Notes

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

Order the LED-CBT-TL-2X4-3P50-4CCT to standardize on one flexible fixture across the job.
