• EnVision LED-BPL-2x4-3M50-5CCT-EMB LED Panel
1 1

EnVision

EnVision LED-BPL-2x4-3M50-5CCT-EMB – Backlit-Line W/ EMB

EnVision LED-BPL-2x4-3M50-5CCT-EMB – Backlit-Line W/ EMB

$203.00
$203.00
Sale Sold out

LED-BPL-2x4-3M50-5CCT-EMB
Request a Quote
Product Overview

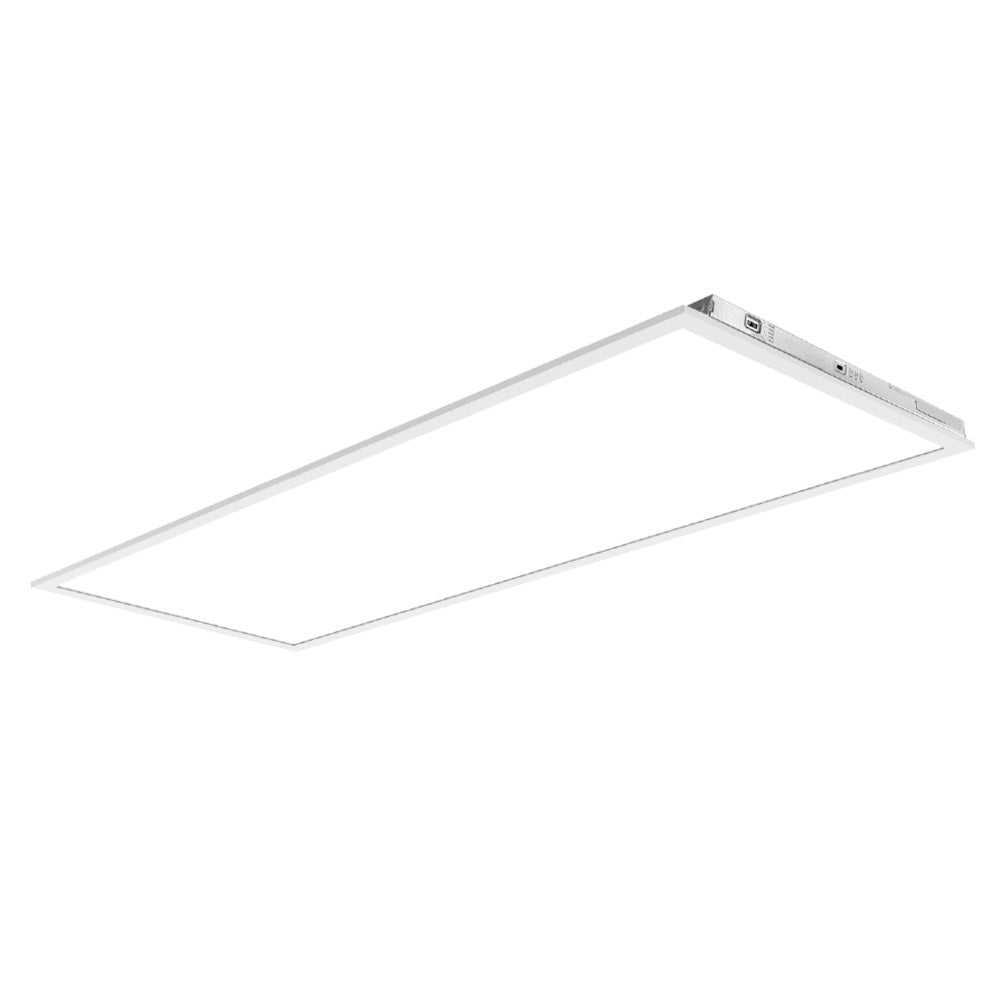

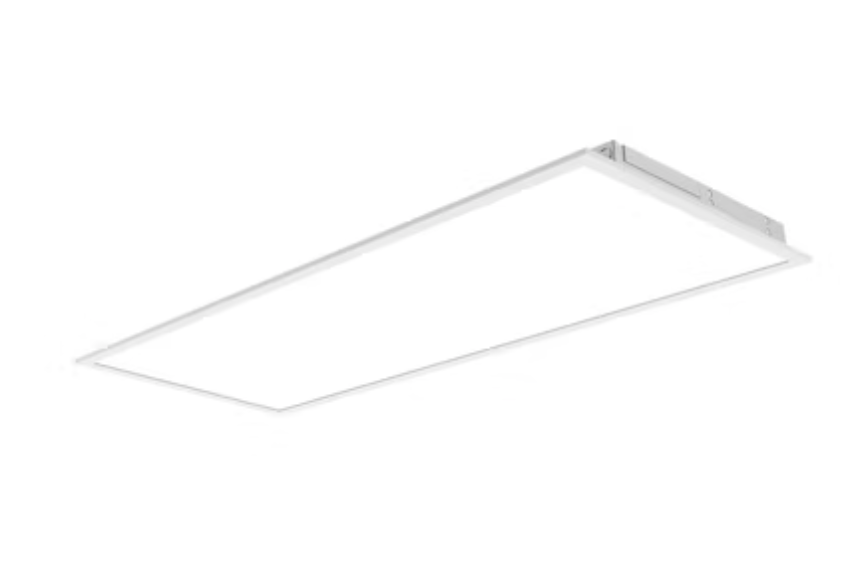

The EnVision LED-BPL-2x4-3M50-5CCT-EMB is a panel rated for up to 5,500 lumens with selectable 50/40/30w output, operating on 120-277V. A dependable choice for retail and commercial interiors where consistent light and clean specs matter.

Key Features
  • Selectable power: 50/40/30w set at install, one SKU covering multiple loads
  • Output: up to 5,500 lumens matching the selected wattage
  • Field-selectable color: 3000K-6500K (5 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 110° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location
  • Finish: White
  • Compliance: UL/DLC Listed, 5-year warranty
  • Packaged 4 per box
Technical Specifications
Brand EnVision
Wattage 50/40/30w
Lumens 5,500/4,400/3,300
Color Temperature 3000K-6500K (5 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 110°
CRI >80
IP Rating Damp Location
Finish White
Certification UL/DLC/ 5 Years
Box Quantity 4
UPC 108197150025003
Applications

Suited to retail and commercial interiors, suspended-grid layouts, and drop-ceiling office grids.

Compatibility & Installation Notes

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

The LED-BPL-2x4-3M50-5CCT-EMB is a practical pick for installers who want verified specs and fast sourcing.
