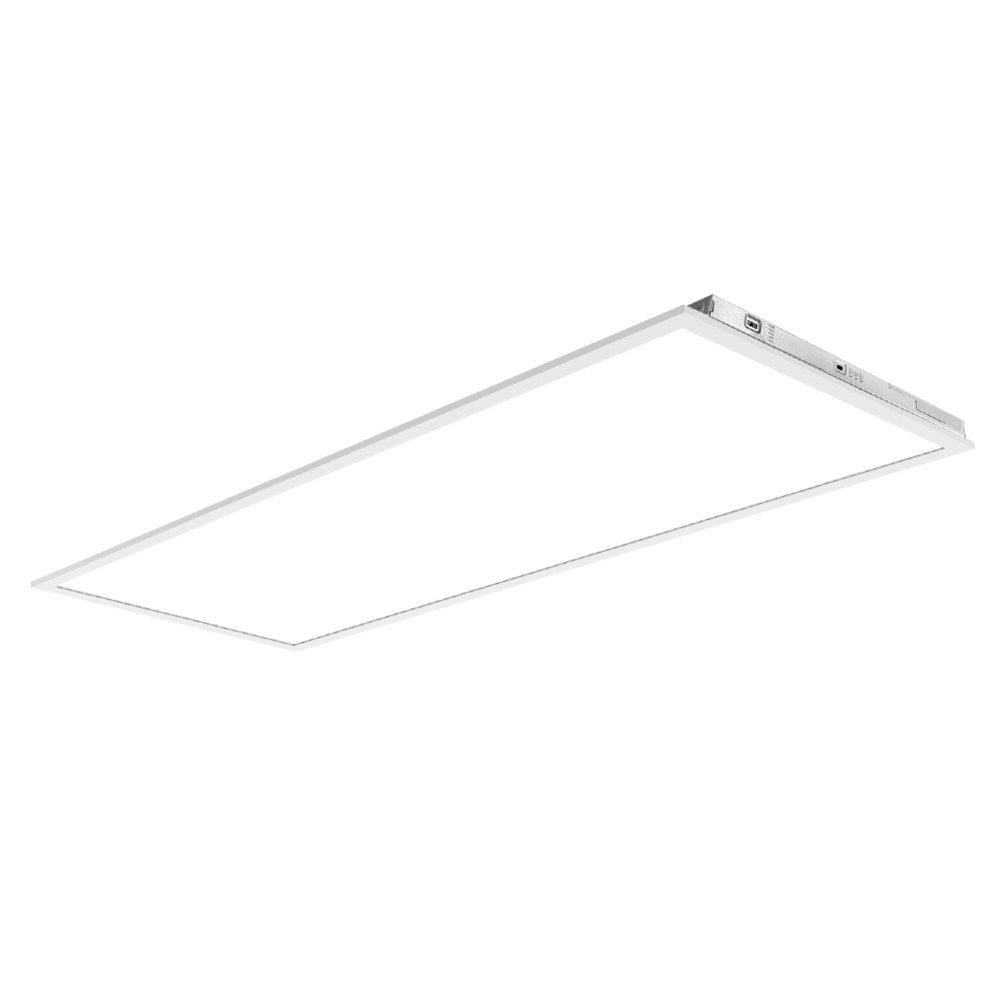

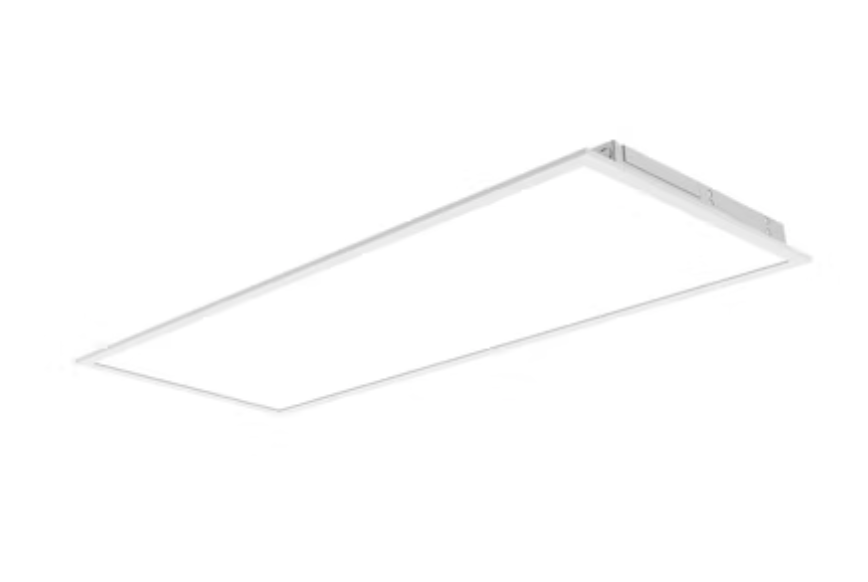

• EnVision LED-BPL-2x4-3M50-5CCT LED Panel
1 1

EnVision

EnVision LED-BPL-2x4-3M50-5CCT – Backlit-Line

EnVision LED-BPL-2x4-3M50-5CCT – Backlit-Line

$63.00
$63.00
Sale Sold out

LED-BPL-2x4-3M50-5CCT
Request a Quote
Product Overview

Engineered for healthcare and education, the EnVision LED-BPL-2x4-3M50-5CCT panel provides up to 5,500 lumens with selectable 50/40/30w output across a 120-277V range, pairing verified performance with fast field specification.

Key Features
  • Selectable power: 50/40/30w set at install, one SKU covering multiple loads
  • Output: up to 5,500 lumens matching the selected wattage
  • Field-selectable color: 3000K-6500K (5 CCT) chosen on the fixture, no re-order
  • Dimming: 0-10V for smooth level control
  • Beam angle: 110° for even coverage
  • Color rendering: CRI >80
  • Rating: Damp Location
  • Finish: White
  • Compliance: UL/DLC Listed, 5-year warranty
  • Packaged 4 per box
Technical Specifications
Brand EnVision
Wattage 50/40/30w
Lumens 5,500/4,400/3,300
Color Temperature 3000K-6500K (5 CCT)
Voltage 120-277V
Dimming 0-10V
Beam Angle 110°
CRI >80
IP Rating Damp Location
Finish White
Certification UL/DLC/ 5 Years
Box Quantity 4
UPC 819715029912
Applications

Suited to healthcare and education, retail and commercial interiors, and suspended-grid layouts.

Compatibility & Installation Notes

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting. Verify the location suits a damp-rated fixture. DLC listing supports utility rebates—verify your program's current QPL.

Choose the LED-BPL-2x4-3M50-5CCT when a project needs dependable output with minimal spec overhead.
