EnVision HD016VCR-8 – Bi Level Motion Sensor w/ Daylight Harvesting Internal Version w/ antenna -Remote Control Compatible-

Product Overview

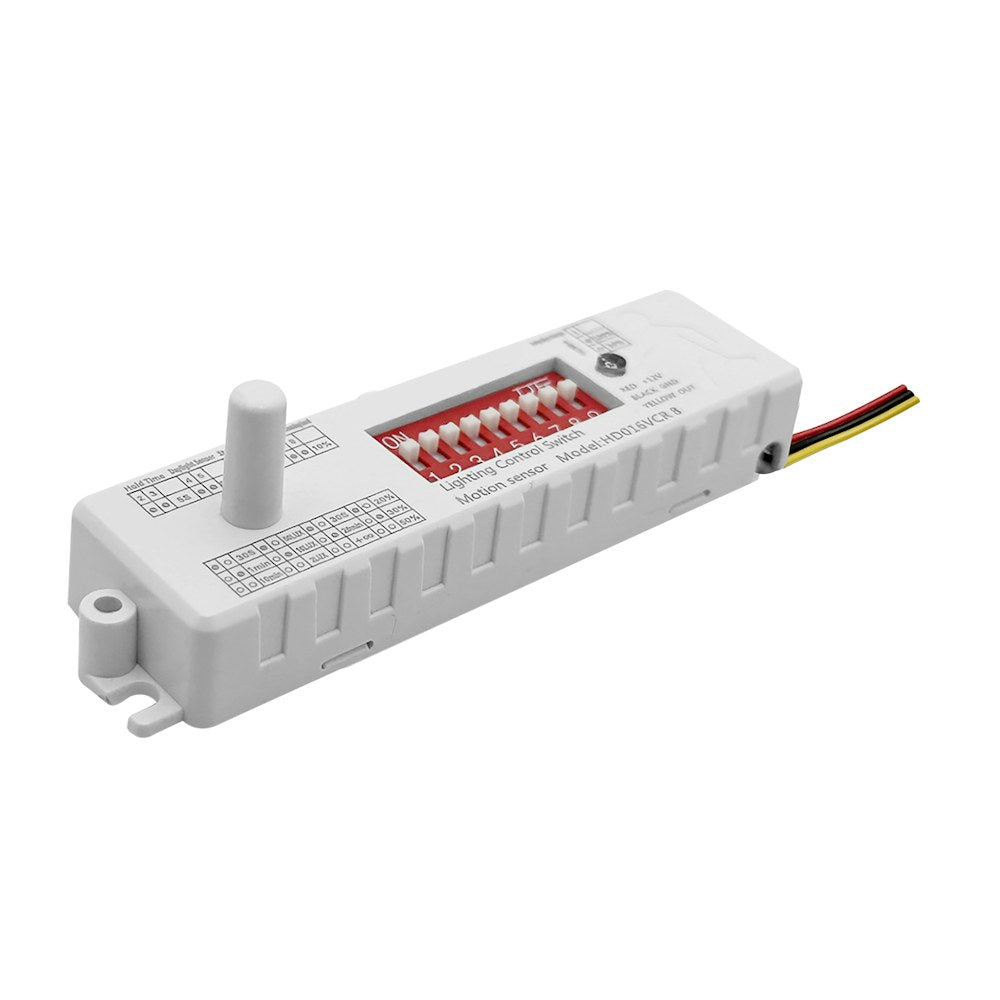

The EnVision HD016VCR-8 is an internal bi-level microwave motion sensor with integrated daylight harvesting for commercial LED fixtures.

It provides adjustable detection area, hold time, daylight threshold, standby dimming and supports ON/OFF and 0–10V dimming control for automated lighting management.

Key Features

• 5.8 GHz ±75 MHz microwave motion detection with ceiling (360°) and wall (150°) patterns
• Low standby power: <0.5 W; operating current <30 mA; sensor DC 10.5–15 V
• Adjustable settings: detection area, hold time, daylight threshold, standby period and standby dimming level
• Control: ON/OFF and 0–10V dimming output (wiring: Red = +12 V, Yellow = DIM+, Black = GND)
• IP20 rating, operating temperature -40°F to +176°F, UL Listed, 3-year warranty

What this sensor does

Answer: The HD016VCR-8 provides motion-activated on/off control with bi-level dimming and daylight harvesting to reduce energy use in fixtures that accept an internal sensor.

• Automatic ON/OFF and bi-level (corridor) dimming behavior
• Daylight threshold prevents switching when ambient light exceeds the preset lux value
• Designed for internal fixture installation; antenna compatibility is documented

Detection performance and electrical characteristics

Answer: Key electrical and detection specifications used for system design and specification are listed below.

• Microwave frequency: 5.8 GHz ±75 MHz; microwave power <0.3 mW
• Ceiling-mounted detection: maximum recommended mounting height 16 ft; detection radius indicated in manufacturer data (approx. 3–7 m × 4 m area)
• Detection speed range: 0.5–1 m/s
• Sensor DC operating voltage: 10.5–15 V; operating current <30 mA; standby power <0.5 W

Adjustable settings and control methods

Answer: Settings are configured via dial switches; the sensor supports ON/OFF and 0–10V dimming output.

• Detection area options include 50% and 100%
• Hold time choices include short and long options (manufacturer documentation lists multiple positions)
• Daylight threshold options: 2 Lux / 10 Lux / 50 Lux / Disable
• Standby period options include 0 s, timed periods and an infinite setting
• Standby dimming level options: 10%, 20%, 30%, 50% (refer to manufacturer voltage references for exact settings)
• Wiring: Red = +12 V, Yellow = DIM+ (0–10V), Black = GND

Installation, wiring and physical interface

Answer: The sensor is intended for internal installation in compatible fixtures; manufacturer drawings provide mechanical dimensions and recommended cutouts.

• Wiring color codes: Red (+12 V), Yellow (DIM+/output), Black (GND)
• Mechanical dimensions, hole sizes and recommended clearances are shown in the product diagram
• Mounting patterns and antenna compatibility are documented for ceiling and wall configurations

Ratings and warranty

Answer: The HD016VCR-8 is UL Listed, rated IP20, and covered by a 3-year manufacturer warranty.

• IP rating: IP20
• Operating temperature: -40°F to +176°F
• Warranty: 3 years

Before You Order

Confirm the model number and that your fixture accepts an internal H-Line sensor before ordering, and verify that IP20 is suitable for your installation environment.

• Confirm fixture has space and wiring for an internal sensor and any required antenna
• Match the sensor's wiring scheme to your driver (Red = +12 V, Yellow = DIM+, Black = GND)

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision HD016VCR-8 – Bi Level Motion Sensor w/ Daylight Harvesting Internal Version w/ antenna -Remote Control Compatible-. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
