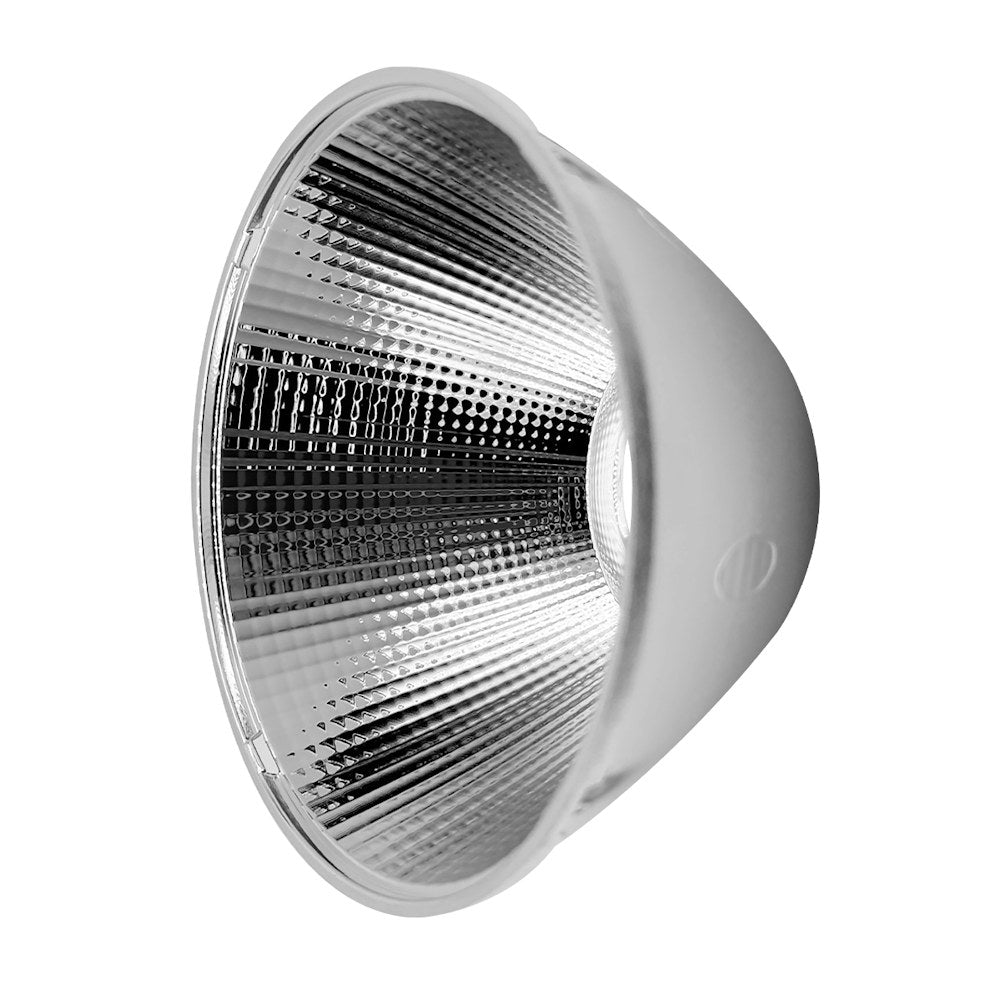

EnVision CYA-UD-4-OPTIC-15 – ARCY-Line Optic (Field Install)

Product Overview

The EnVision CYA-UD-4-OPTIC-15 is a field-install optic accessory for the 4" ARCY-Line architectural LED cylinder (up/down) that provides a 15° beam angle for focused light control.

Sold as the optic module only; confirm compatibility with EnVision 4" ARCY-Line (CYA-UD-4) fixtures before ordering.

Key Features

• 15° beam angle optic designed for field installation
• Accessory model: CYA-UD-4-OPTIC-15
• Intended for EnVision ARCY-Line 4" up/down cylinder series
• Field-swappable per manufacturer documentation

What this accessory does

The CYA-UD-4-OPTIC-15 is an optic insert intended to produce a 15° beam angle on EnVision 4" ARCY-Line up/down cylinder fixtures. Installing this optic narrows the fixture's light distribution for more focused accenting or task illumination.

• Provides a 15° beam angle (manufacturer-specified)
• Alters beam distribution of compatible ARCY-Line cylinders

Compatibility with ARCY-Line fixtures

EnVision lists this part as the field-install optic for the 4" ARCY-Line cylinder series. It is identified as CYA-UD-4-OPTIC-15 and intended for the 4" ARCY-Line (CYA-UD-4) family.

• Accessory model: CYA-UD-4-OPTIC-15
• Intended for EnVision 4" ARCY-Line up/down cylinders (CYA-UD-4 series)
• Other optics (e.g., 40° standard, 60°) are available for the series per manufacturer materials

Field installation notes

Manufacturer documentation indicates the optic is field-installable and field-swappable for the ARCY-Line series.

• Field-swapable optic — can be installed on-site or at factory level according to EnVision materials
• Follow the fixture's installation instructions and applicable electrical codes when performing work

Key technical identifiers

Use these identifiers to confirm procurement and compatibility.

• Brand: EnVision
• Accessory model / SKU: CYA-UD-4-OPTIC-15
• Beam angle: 15° (optic)
• Intended series: ARCY-Line 4" up/down cylinder (CYA-UD-4)

Before You Order

This listing is for the optic accessory only; fixtures and other components are sold separately. Confirm the fixture model (ARCY-Line 4" CYA-UD-4) before ordering.

• Verify fixture model compatibility (4" ARCY-Line CYA-UD-4 series)
• Confirm 15° beam angle meets your application needs
